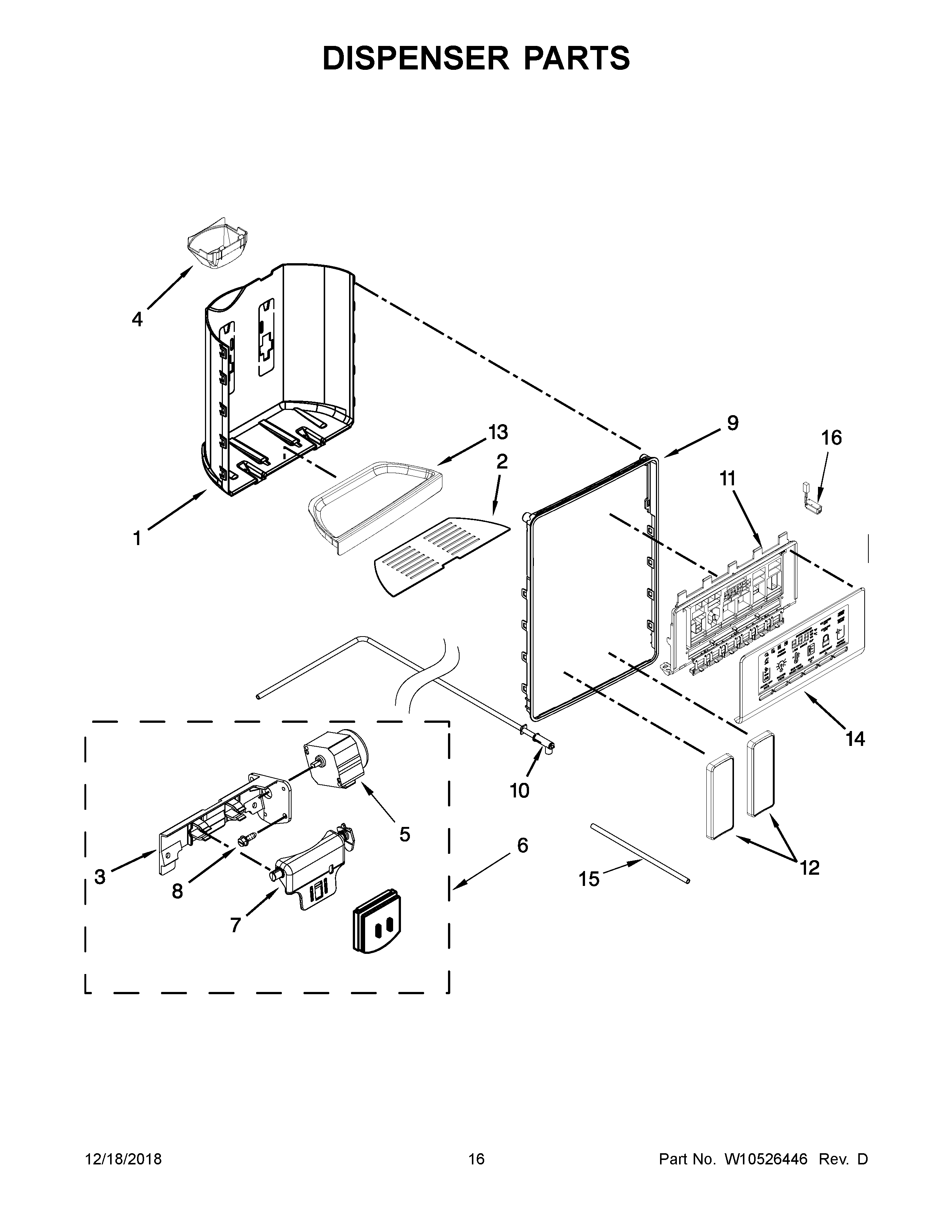

WRS526SIAH00 09 – DISPENSER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2A	WPW10276221 Whirlpool Refrigerator Grille
2	WPW10276220 Whirlpool Refrigerator Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W11096215 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	WPW10276186 Whirlpool Refrigerator Dispenser Trim
9A	TRIM RING (BLACK)
10	W11669937 Whirlpool Water Tube
11	WPW10372206-includeCORE Whirlpool WPW10372206 Refrigerator Electronic Control Board + Core
12A	WPW10370592 Whirlpool Refrigerator Pad
12	WPW10370593 Whirlpool Refrigerator Pad
13A	W10276194 Whirlpool Refrigerator Drip Tray
13	W10276193 Whirlpool Refrigerator Disp Tray
14	W10276229 Whirlpool Refrigerator Escutcheon
14A	WPW10254285 Whirlpool Refrigerator Escutcheon
15	W11619800 Whirlpool Refrigerator Water Tube
16	W11290115 Whirlpool Refrigerator Light
