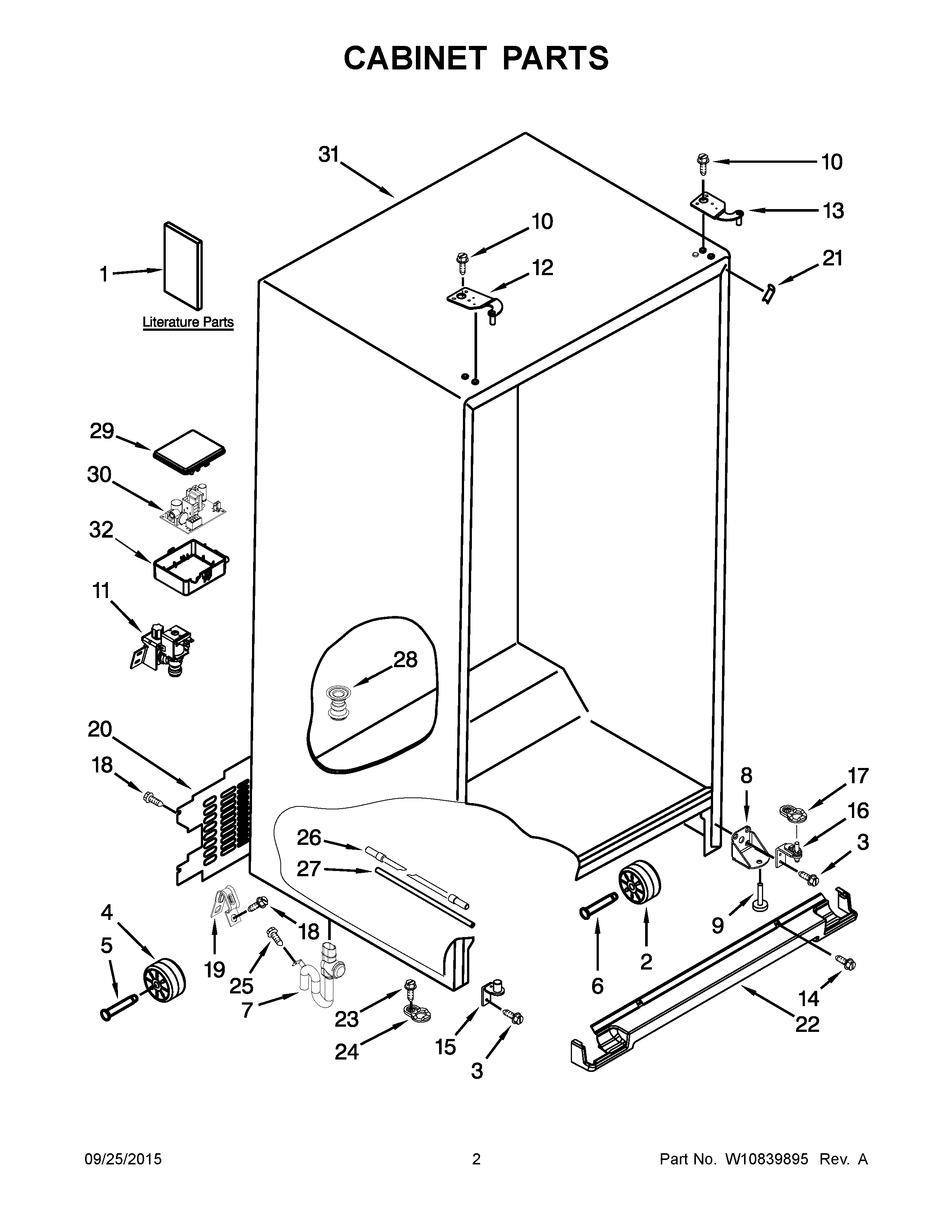

WRS571CIDB00 02 – CABINET PARTS

WRS571CIDB00 02 – CABINET PARTS

Written by

in

WRS571CIDB00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1USE AND CARE GUIDE
2WPW10475495 Whirlpool Roller Assembly
3WPW10297485 Whirlpool Refrigerator Screw
4WP67005149 Whirlpool Roller
567006434 Whirlpool Axle Pin
6W11208384 Whirlpool Refrigerator Rivet
7W10379525 Whirlpool Refrigerator Extension
8W11266052 Whirlpool Refrigerator Bracket
9WPW10141622 Whirlpool Leveler
10WPW10308751 Whirlpool Screw
11VALVE-INLT REFR
12W11568758 Whirlpool Top Hinge
13W10901052 Whirlpool Refrigerator Door Hinge
14WP98008545 Whirlpool Screw
15W10249941 Whirlpool Refrigerator Door Hinge
16W11311416 Whirlpool Refrigerator Door Hinge
17W11311686 Whirlpool Closing Cam
18SCREW
19549193 Whirlpool Refrigerator Power Clamp
20WPW10333887 Whirlpool Refrigerator Unit Cover
2167003485 Whirlpool Refrigerator Corner Cover (Black)
22WPW10713158 Whirlpool Refrigerator Grille
23WP489483 Whirlpool Screw
24W10876198 Whirlpool Refrigerator Door Cam
25WP489464 Whirlpool Refrigerator Screw
26WPW10279882 Whirlpool Water Line
27WPW10279884 Whirlpool Water Tube
28W10370680 Whirlpool Refrigerator Fitting
29LID, HV BOX
30W11035841-includeCORE Whirlpool W11035841 Refrigerator Electronic Control Board + Core
31CABINET (NOT A SERVICEABLE PART)
32WPW10247993 Whirlpool Refrigerator Control Box
