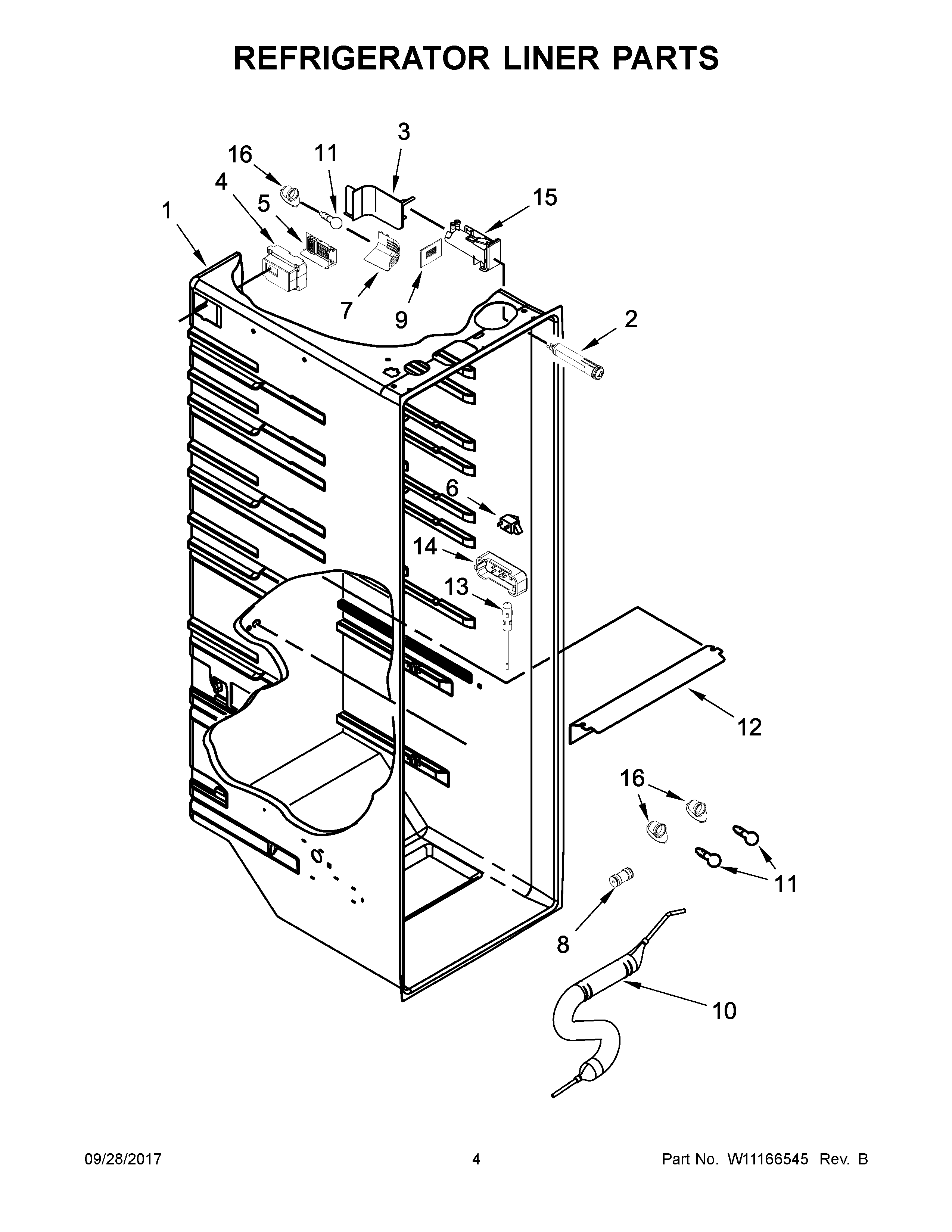

WRS571CIDB01 03 – REFRIGERATOR LINER PARTS

WRS571CIDB01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS571CIDB01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
3W11501035 Whirlpool Refrigerator Filter Cover
4W11164593 Whirlpool Damper Control Assembly
5WPW10457601 Whirlpool Refrigerator Support
6W11384469 Whirlpool Door Switch
7W10893232 Whirlpool Refrigerator Cover
8WPW10271543 Whirlpool Refrigerator Connector
9WPW10457603 Whirlpool Refrigerator Cover
10W11613294 Whirlpool Refrigerator Reservoir
11W11216993 Whirlpool Refrigerator Light Bulb
12WPW10269099 Whirlpool Refrigerator Light Lens
13THERMISTOR
14WPW10425252 Whirlpool Refrigerator Cover
15WPW10394053 Whirlpool Refrigerator Housing
16W11447232 Whirlpool Refrigerator Socket
