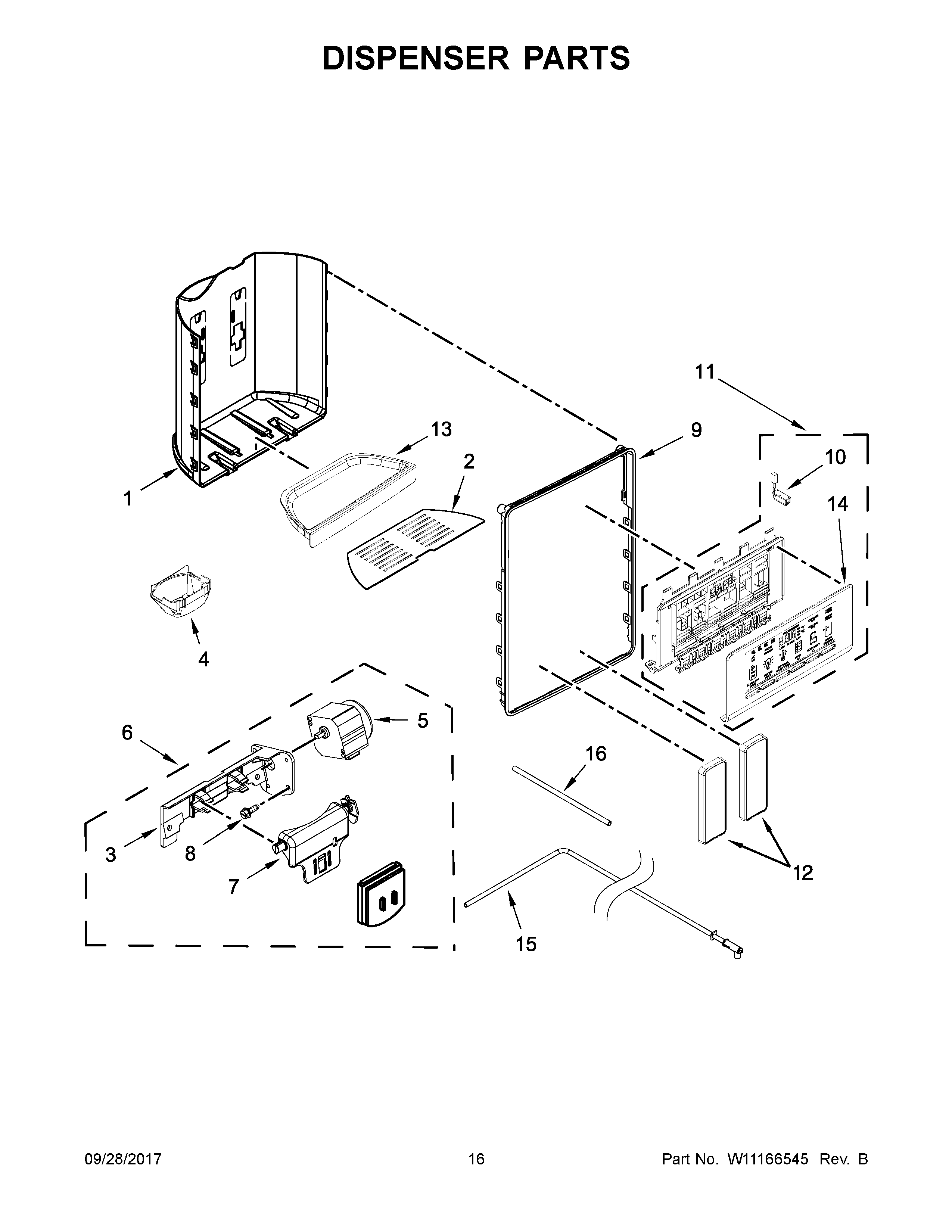

WRS571CIDB01 09 – DISPENSER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2B	WPW10276223 Whirlpool Refrigerator Grille
2A	WPW10276221 Whirlpool Refrigerator Grille
2	WPW10276220 Whirlpool Refrigerator Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W11096215 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	WPW10276186 Whirlpool Refrigerator Dispenser Trim
9B	W10276227 Whirlpool Refrigerator Dispense Trim
9A	TRIM RING (BLACK)
10	W11290115 Whirlpool Refrigerator Light
11	WPW10758681-includeCORE Whirlpool WPW10758681 Refrigerator Electronic Control Board + Core
12B	WPW10370594 Whirlpool Refrigerator Pad
12A	WPW10370592 Whirlpool Refrigerator Pad
12	WPW10370593 Whirlpool Refrigerator Pad
13A	W10276194 Whirlpool Refrigerator Drip Tray
13	W10276193 Whirlpool Refrigerator Disp Tray
13B	W11246841 Whirlpool Refrigerator Drip Tray
14	W10276229 Whirlpool Refrigerator Escutcheon
15	WPW10386778 Whirlpool Refrigerator Water Tube
16	WPW10238092 Whirlpool Refrigerator Water Tube
