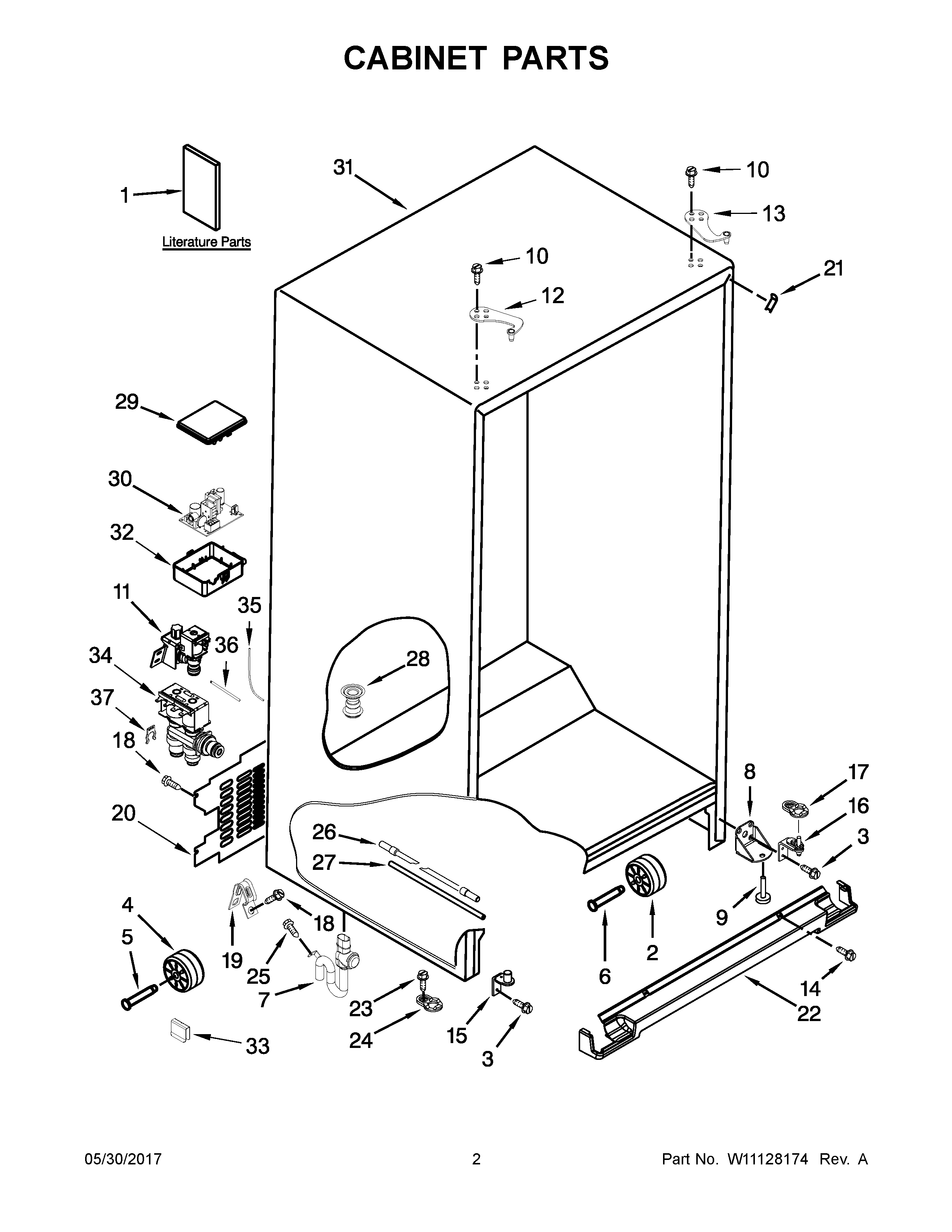

WRS571CIDB02 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1BENERGY GUIDE
1ATECH SHEET
2WPW10475495 Whirlpool Roller Assembly
3WPW10297485 Whirlpool Refrigerator Screw
4WP67005149 Whirlpool Roller
567006434 Whirlpool Axle Pin
6W11208384 Whirlpool Refrigerator Rivet
7W10379525 Whirlpool Refrigerator Extension
8W11266052 Whirlpool Refrigerator Bracket
9WPW10141622 Whirlpool Leveler
10WPW10308751 Whirlpool Screw
11VALVE-INLT REFR
12AW11590581 Whirlpool Refrigerator Door Hinge
12W10901052 Whirlpool Refrigerator Door Hinge
13AHINGE-DOOR
13W11568758 Whirlpool Top Hinge
14AWPW10308489 Whirlpool Refrigerator Screw
14WP98008545 Whirlpool Screw
15AW11293374 Whirlpool Refrigerator Door Hinge
15W10249941 Whirlpool Refrigerator Door Hinge
16W11311416 Whirlpool Refrigerator Door Hinge
16AW11292872 Whirlpool Refrigerator Door Hinge
17W11311686 Whirlpool Closing Cam
17AW11311687 Whirlpool Closing Cam
18SCREW
19549193 Whirlpool Refrigerator Power Clamp
20WPW10333887 Whirlpool Refrigerator Unit Cover
21AWP12587703AP Whirlpool Refrigerator Filler
2167003485 Whirlpool Refrigerator Corner Cover (Black)
22WPW10713158 Whirlpool Refrigerator Grille
22AWPW10713153 Whirlpool Refrigerator Grille
23WP489483 Whirlpool Screw
24AW10876191 Whirlpool Refrigerator Door Cam
24W10770895 Whirlpool Refrigerator Door Cam
25WP489464 Whirlpool Refrigerator Screw
26WPW10279882 Whirlpool Water Line
27WPW10279884 Whirlpool Water Tube
28W10370680 Whirlpool Refrigerator Fitting
29LID, HV BOX
30W11035841-includeCORE Whirlpool W11035841 Refrigerator Electronic Control Board + Core
31CABINET (NOT A SERVICEABLE PART)
32WPW10247993 Whirlpool Refrigerator Control Box
33W11545866 Whirlpool Refrigerator Clip
34VALVE-INLT REFR
35WPW10238092 Whirlpool Refrigerator Water Tube
36WPL W10811573
37AW10782423 Whirlpool Refrigerator Ring
37W10782424 Whirlpool Refrigerator Ring
