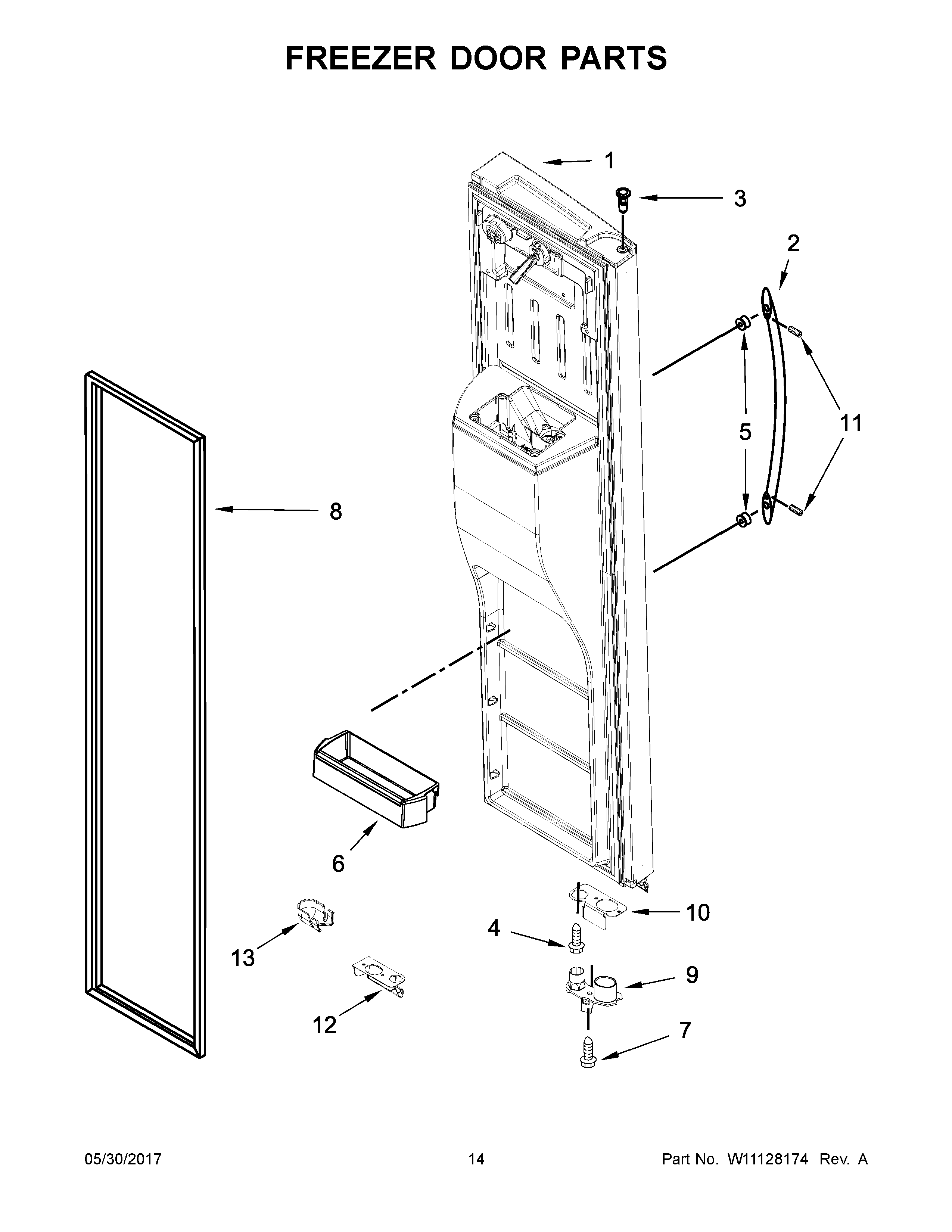

WRS571CIDB02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1ALW10691266 Whirlpool Refrigerator Door FIP
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
2W10805245 Whirlpool Door Handle
2AW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN-CNTLVR
7SCREW
8WPW10249913 Whirlpool Refrigerator FIP Gasket
8AWPW10355585 Whirlpool Refrigerator Door Gasket + AH
9W11607100 Whirlpool Refrigerator Thimble Cam
9AWPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12W10632060 Whirlpool Refrigerator Wire Cover
12AWPW10632062 Whirlpool Refrigerator Wire Cover
13W10323148 Whirlpool Refrigerator Wire Cover
