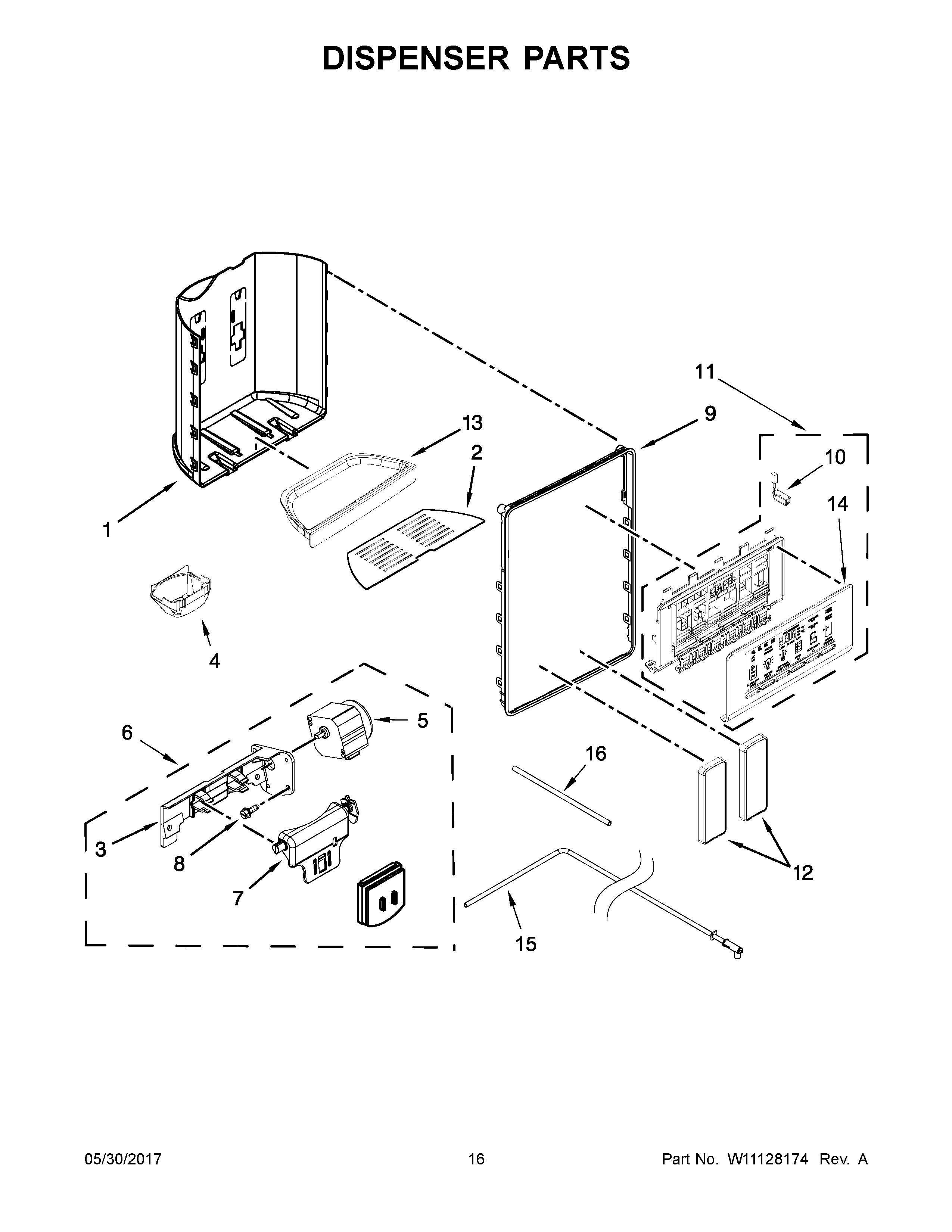

WRS571CIDB02 09 – DISPENSER PARTS

Products

Position	Product
1A	W10276228 Whirlpool Refrigerator Separator
1	FALSE WALL, DISPENSER (BLACK)
2	WPW10276221 Whirlpool Refrigerator Grille
2A	WPW10276223 Whirlpool Refrigerator Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W11096215 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	TRIM RING (BLACK)
9A	W10276227 Whirlpool Refrigerator Dispense Trim
10	W11216993 Whirlpool Refrigerator Light Bulb
11	WPW10758681-includeCORE Whirlpool WPW10758681 Refrigerator Electronic Control Board + Core
12	PAD, ICE AND WATER (BLACK)
12A	WPW10370594 Whirlpool Refrigerator Pad
13A	W11246841 Whirlpool Refrigerator Drip Tray
13	W10276194 Whirlpool Refrigerator Drip Tray
14	W10276229 Whirlpool Refrigerator Escutcheon
15	WPW10386778 Whirlpool Refrigerator Water Tube
16	W11620106 Whirlpool Water Tube
