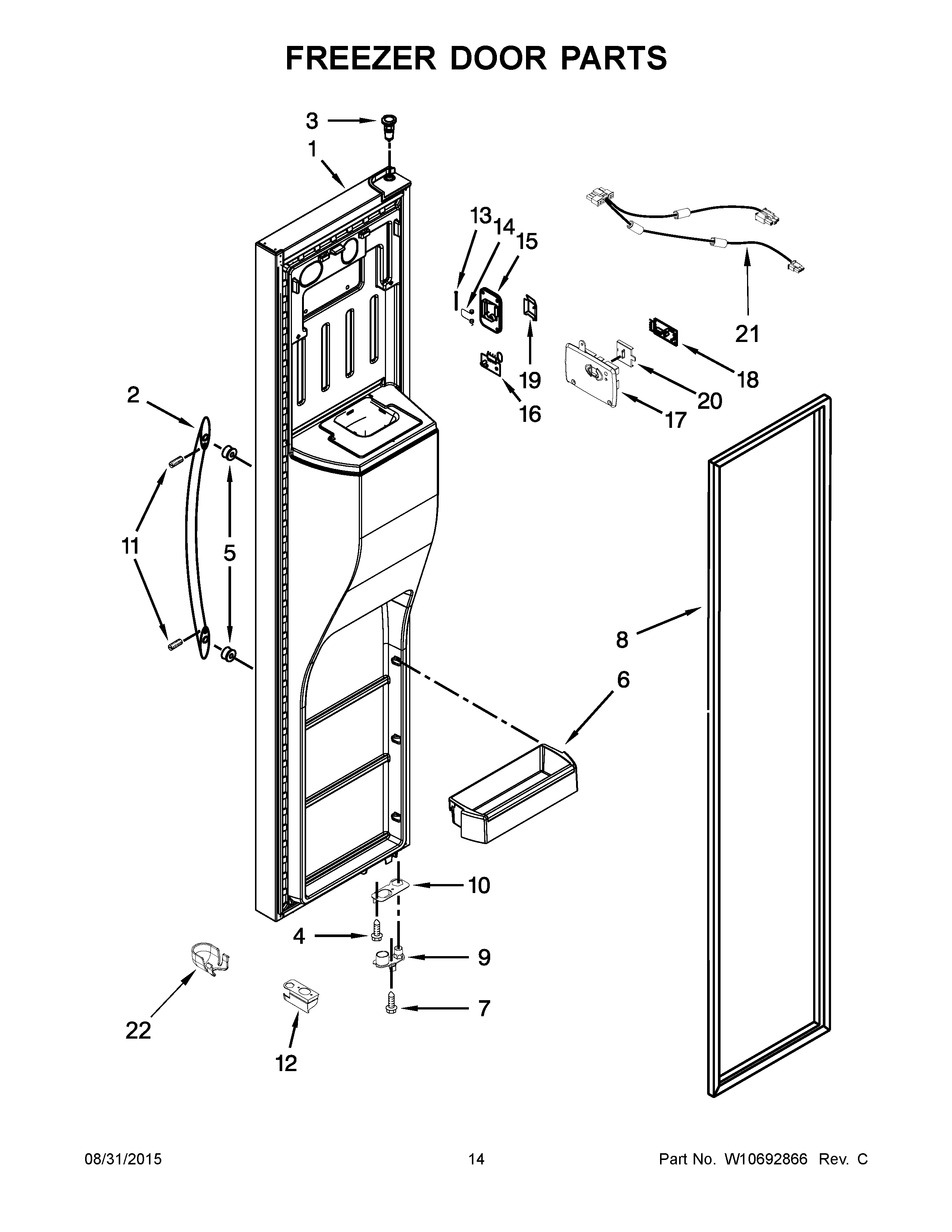

WRS571CIDM00 08 – FREEZER DOOR PARTS

WRS571CIDM00 08 – FREEZER DOOR PARTS

Written by

in

WRS571CIDM00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2W10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10296857 Whirlpool Refrigerator Cantilever Bin
7SCREW
8WPW10355585 Whirlpool Refrigerator Door Gasket + AH
9WPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12WPW10632062 Whirlpool Refrigerator Wire Cover
13WP2198634 Whirlpool Door Pin
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17COVER, RECEIVER
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
21W10411699 Whirlpool Refrigerator Wire Harness
22W10323148 Whirlpool Refrigerator Wire Cover
