WRS571CIDM01 07 – REFRIGERATOR DOOR PARTS

WRS571CIDM01 07 – REFRIGERATOR DOOR PARTS

Written by

in

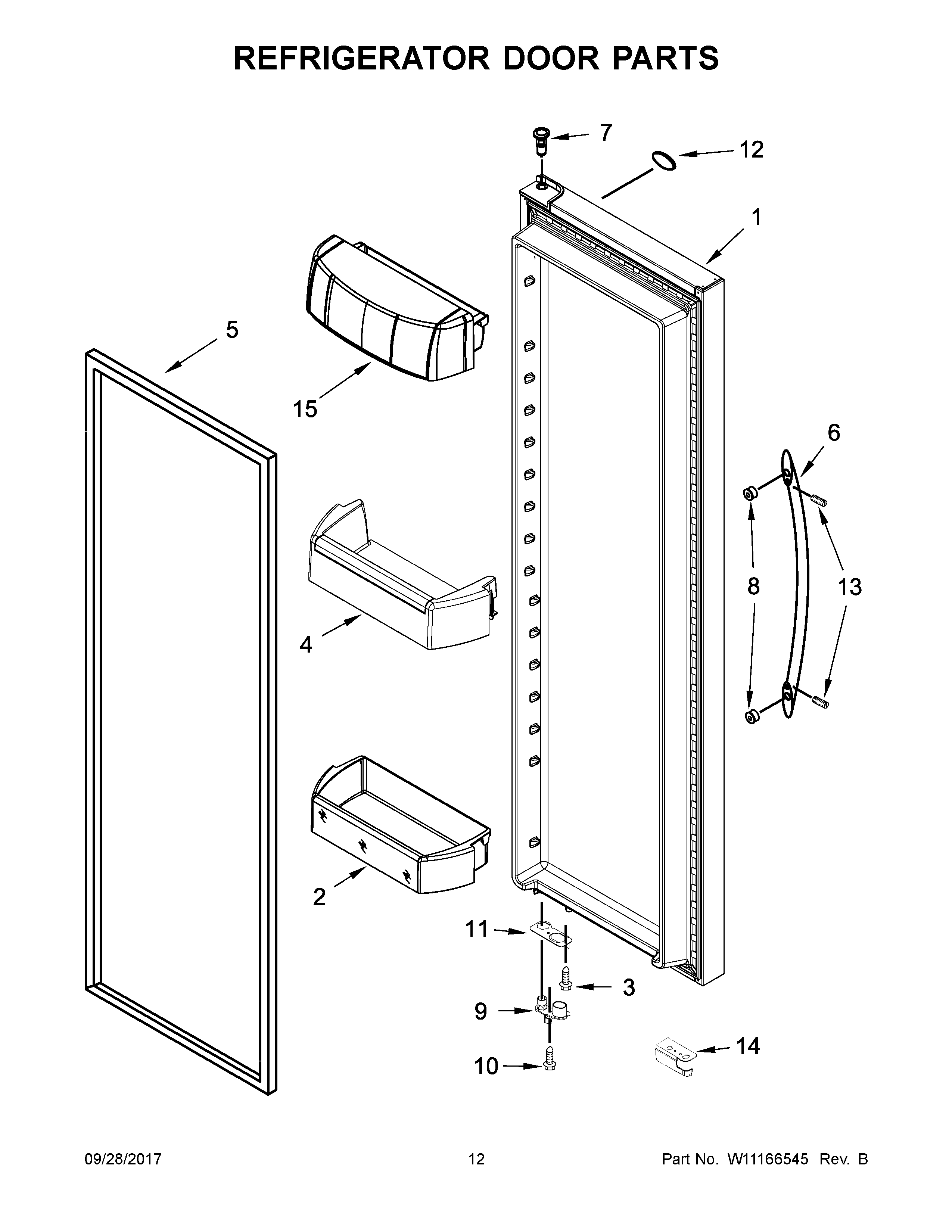

WRS571CIDM01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
1BLW10651576 Whirlpool Refrigerator Door FIP
1ADOOR, REFRIGERATOR (INCLUDES ITEM 5) (BLACK)
2AWPW10710203 Whirlpool Refrigerator Door Shelf Bin
2WPW10527271 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10296855 Whirlpool Refrigerator Door Bin
4AWPW10451873 Whirlpool Door Shelf Bin
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5AWPW10249912 Whirlpool Refrigerator FIP Gasket
5BW10355582 Whirlpool Refrigerator Door Gasket
6BW10899551 Whirlpool Door Handle
6AW10805245 Whirlpool Door Handle
6W10848410 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9AWPW10257201 Whirlpool Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10511975 Whirlpool Refrigerator Nameplate
12AWPW10511972 Whirlpool Refrigerator Nameplate
13SCREW
14AW10789145 Whirlpool Refrigerator Wire Cover
14W10789144 Whirlpool Refrigerator Wire Cover
15WPW10324760 Whirlpool Refrigerator Door Shelf Bin
