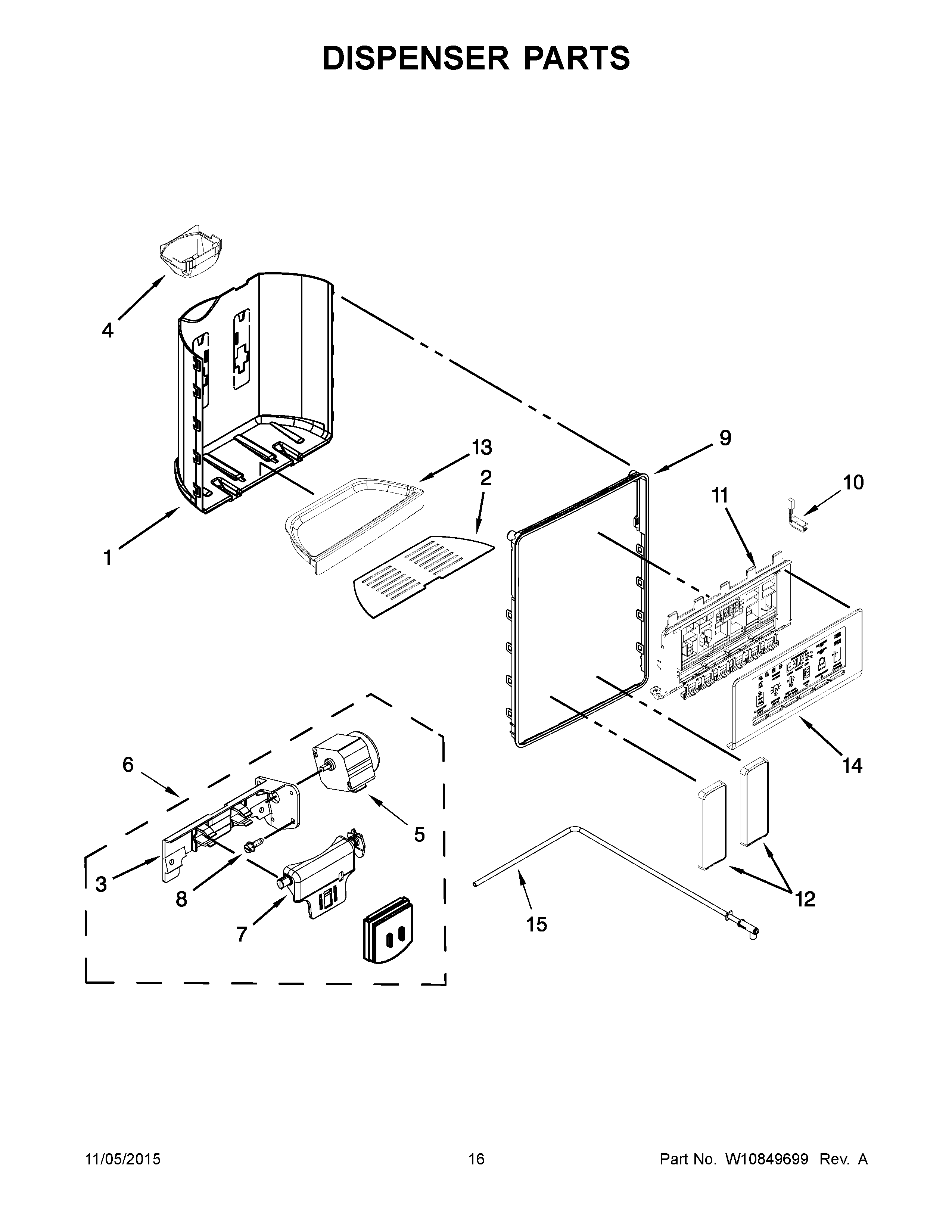

WRS571CIDW00 09 – DISPENSER PARTS

WRS571CIDW00 09 – DISPENSER PARTS

Written by

in

WRS571CIDW00 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276220 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6WPW10493172 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10276186 Whirlpool Refrigerator Dispenser Trim
10W11290115 Whirlpool Refrigerator Light
11WPW10758681-includeCORE Whirlpool WPW10758681 Refrigerator Electronic Control Board + Core
12WPW10370593 Whirlpool Refrigerator Pad
13W10276193 Whirlpool Refrigerator Disp Tray
14W10276229 Whirlpool Refrigerator Escutcheon
15WPW10386778 Whirlpool Refrigerator Water Tube
