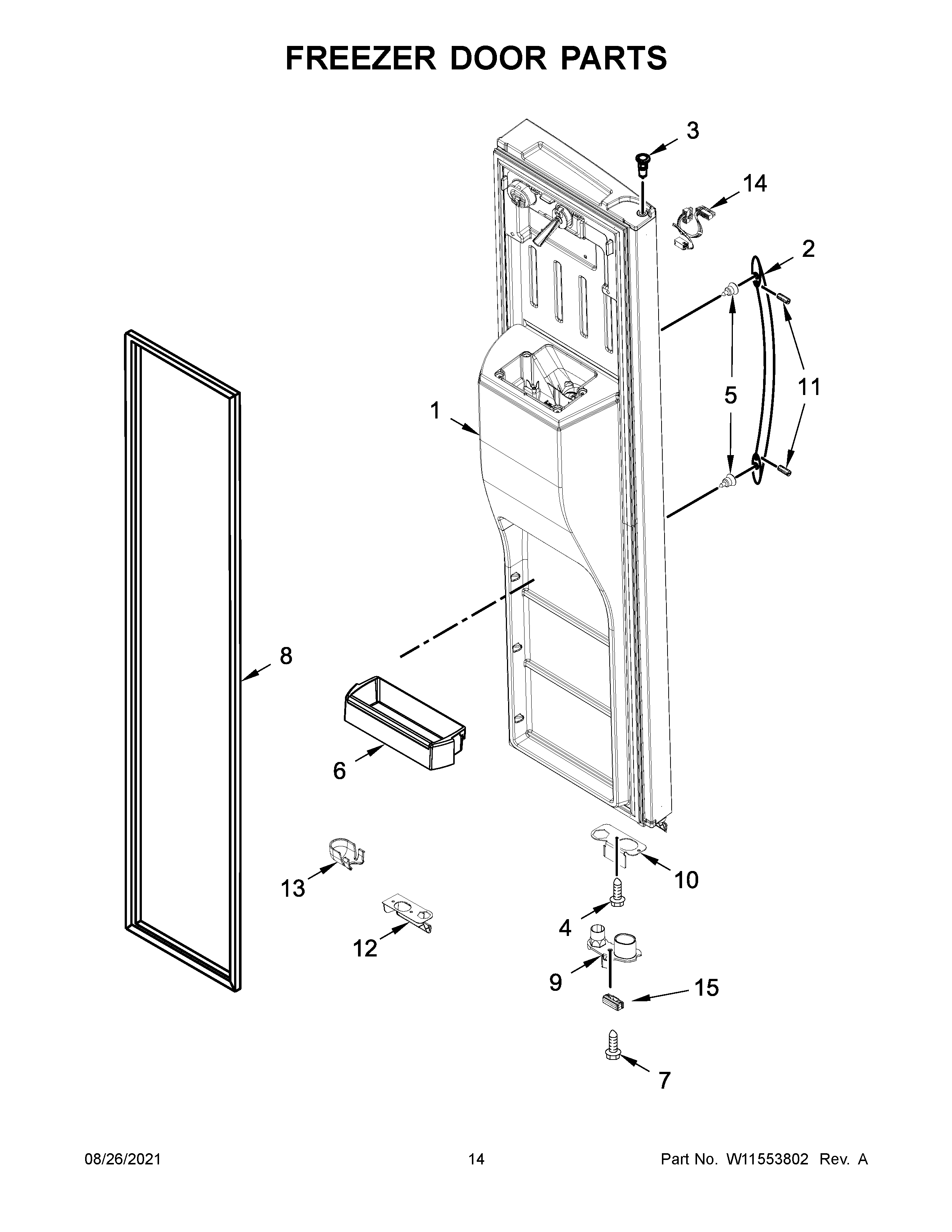

WRS571CIHV04 08 – FREEZER DOOR PARTS

WRS571CIHV04 08 – FREEZER DOOR PARTS

Written by

in

WRS571CIHV04 08 – FREEZER DOOR PARTS

Products

PositionProduct
1AW11572307 Whirlpool Door Flip
1CW11561286 Whirlpool Refrigerator FIP Door
1BW11572312 Whirlpool Refrigerator Door FIP
1W11572303 Whirlpool Refrigerator Door FIP
2CW11542651 Whirlpool Door Handle
2W11432251 Whirlpool Refrigerator Handle
2AW11450221 Whirlpool Handle
2BW11450223 Whirlpool Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN-CNTLVR
7SCREW
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
8WPW10247885 Whirlpool Door Gasket
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
9BWPW10257206 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
13W10323148 Whirlpool Refrigerator Wire Cover
14W11293361 Whirlpool Refrigerator Wire Jumper
15BUMPER, DOOR (WHITE)
15BW11573367 Whirlpool Refrigerator Door Bumper
15AW10407187 Whirlpool Refrigerator Door Bumper
