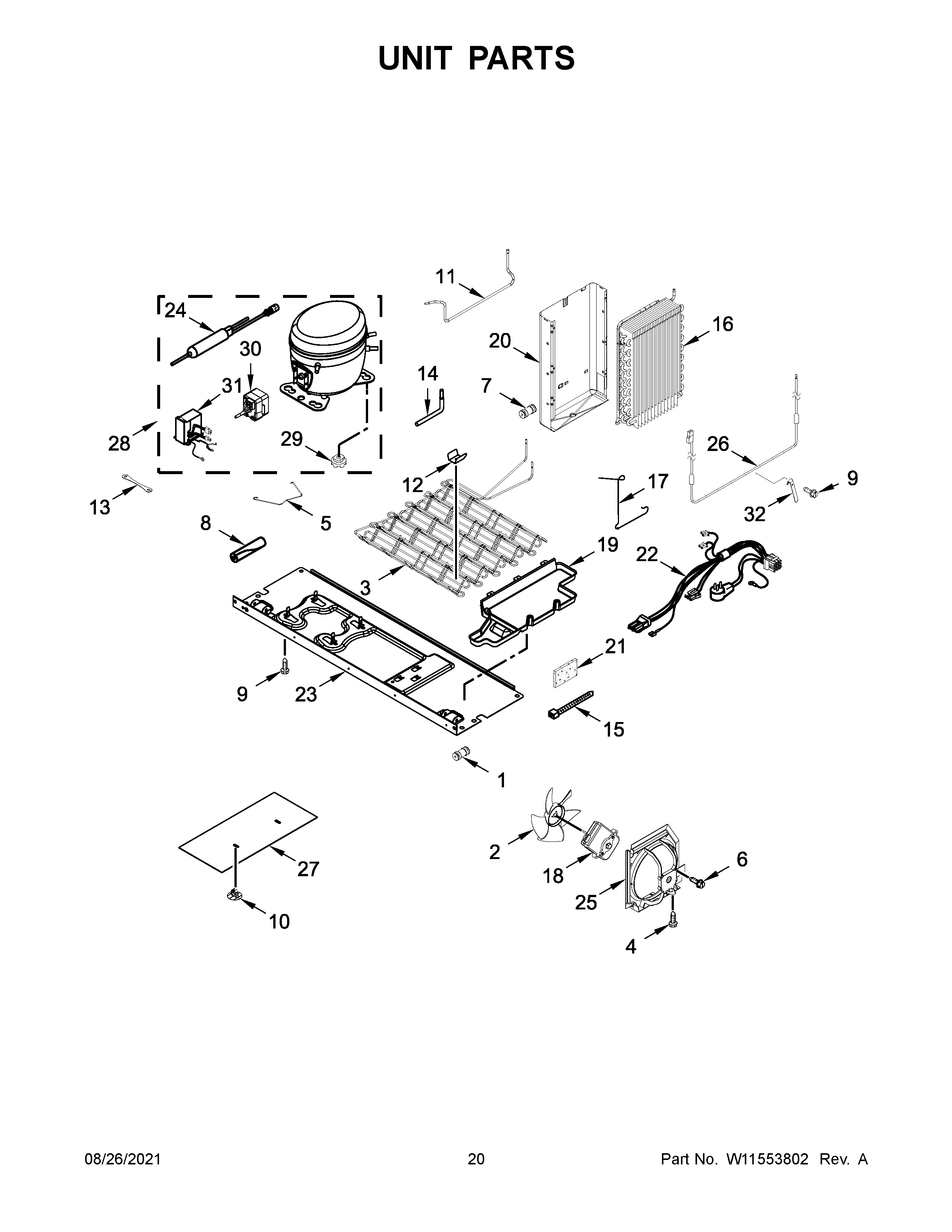

WRS571CIHV04 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11566486 Whirlpool Heat Probe
2	W11458267 Whirlpool Refrigerator Fan Blade
3B	W11504445 Whirlpool Refrigerator Coupler
3A	W11506623 Whirlpool Refrigerator Coupler
3	W11708426 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	W11577799 Whirlpool Refrigerator Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
10	W10815861 Whirlpool Refrigerator Clip
11	TUBE, SUCTION
12	W10683556 Whirlpool Refrigerator Clip
13	W11417341 Whirlpool Refrigerator Screw
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16A	W11504449 Whirlpool Refrigerator Coupler
16	W11546605 Whirlpool Refrigerator Evaporator
17	Clamp
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	W10714793 Whirlpool Refrigerator Evaporator Tray
20	SHIELD, HEAT
21	W11553819 Whirlpool Refrigerator Insulation
22	W11293381 Whirlpool Refrigerator Wire Harness
23	W10680691 Whirlpool Refrigerator Support Assembly
24B	W11504447 Whirlpool Refrigerator Coupler
24	W11109499 Whirlpool Refrigerator Tube
24A	W11504433 Whirlpool Refrigerator Coupler
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	W11546981 Whirlpool Refrigerator Heater
27	UNIT COVER, BOTTOM
28A	W11504415 Whirlpool Refrigerator Coupler
28C	COUPLER
28	COMPRESSOR
28B	W11504431 Whirlpool Microwave Coupler
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W11547180 Whirlpool Refrigerator Start Device
31	WPW10662129 Whirlpool Refrigerator Run Capacitor
