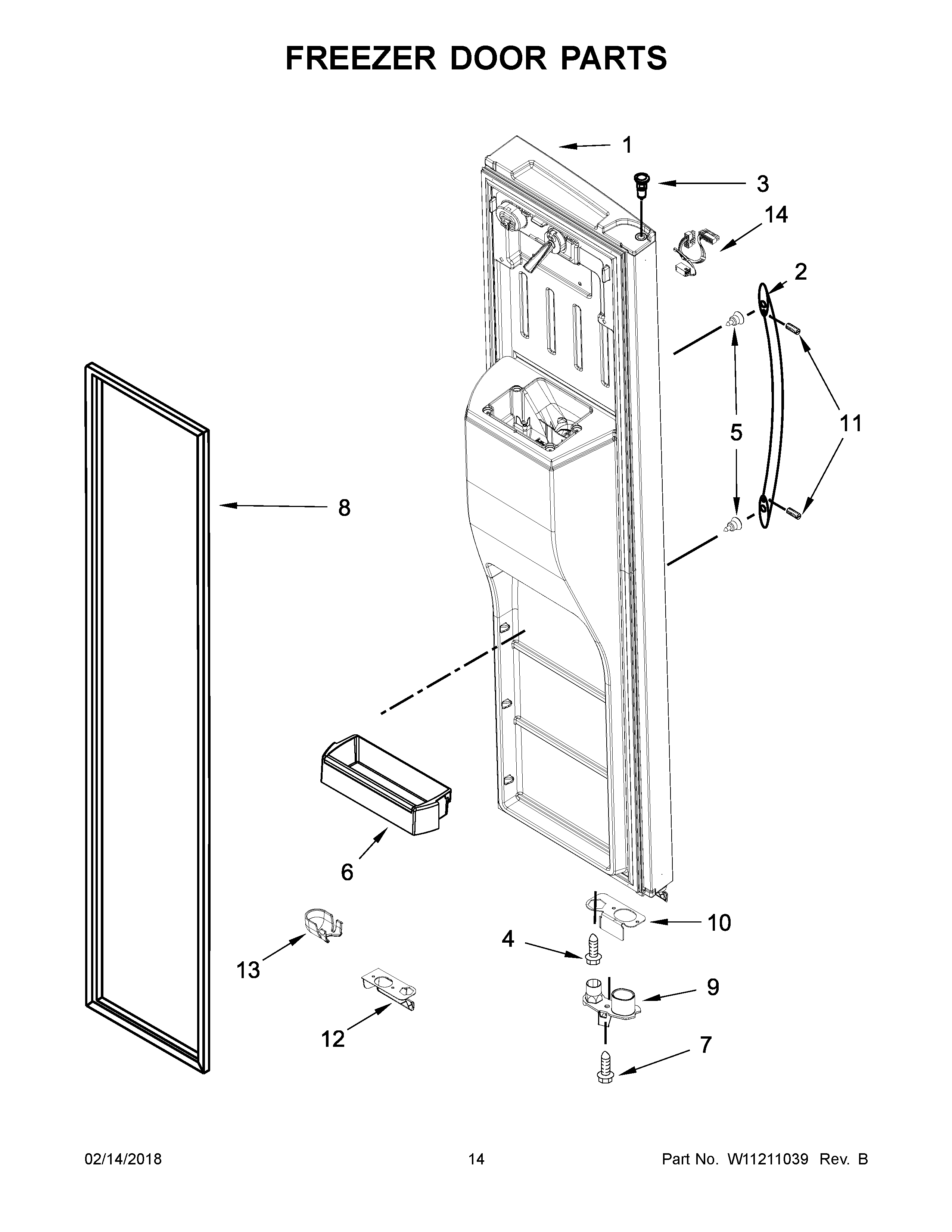

WRS571CIHW00 08 – FREEZER DOOR PARTS

WRS571CIHW00 08 – FREEZER DOOR PARTS

Written by

in

WRS571CIHW00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1CLW11089011 Whirlpool Refrigerator DOR-FIP
1LW11093334 Whirlpool Refrigerator DOR FIP
1ALW11089021 Whirlpool Refrigerator Door ASY FINAL FC BLK(DRPSHP
1BLW11089000 Whirlpool Refrigerator DOR-FIP
2AW11450221 Whirlpool Handle
2CHANDLE-REFRIGERATOR SS
2W11432251 Whirlpool Refrigerator Handle
2BW11043764 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN-CNTLVR
7SCREW
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
8WPW10247885 Whirlpool Door Gasket
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
9BWPW10257206 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
13W10323148 Whirlpool Refrigerator Wire Cover
14W11293361 Whirlpool Refrigerator Wire Jumper
