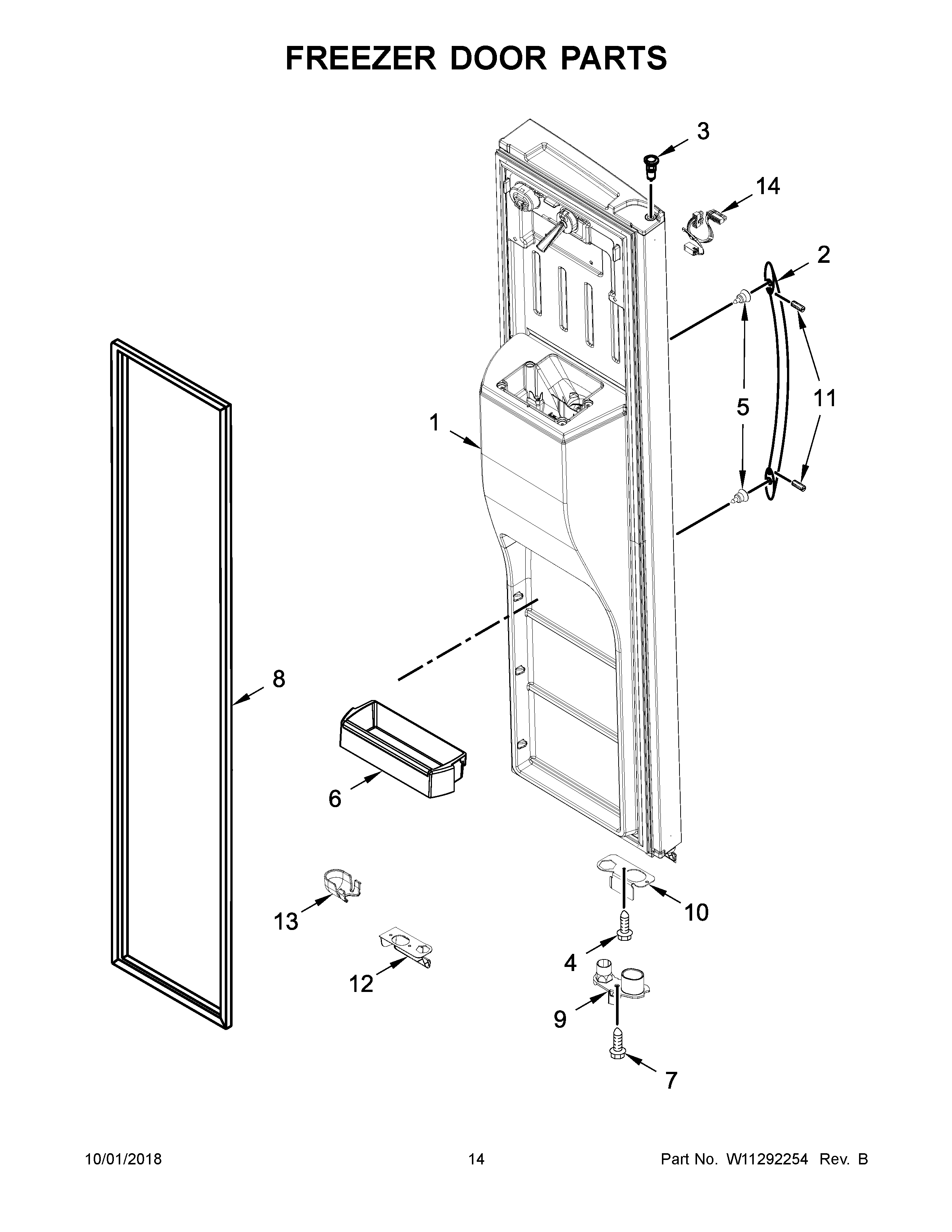

WRS571CIHW01 08 – FREEZER DOOR PARTS

WRS571CIHW01 08 – FREEZER DOOR PARTS

Written by

in

WRS571CIHW01 08 – FREEZER DOOR PARTS

Products

PositionProduct
1CLW11202405 Whirlpool Refrigerator Door Assembly
1BLW11202403 Whirlpool Refrigerator FIP Door
1ALW11202402 Whirlpool Refrigerator Door
1LW11202404 Whirlpool Refrigerator Door FIP
2BW11043764 Whirlpool Refrigerator Handle
2CHANDLE-REFRIGERATOR SS
2AW11450221 Whirlpool Handle
2W11432251 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN-CNTLVR
7SCREW
8WPW10247885 Whirlpool Door Gasket
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
9BWPW10257206 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
13W10323148 Whirlpool Refrigerator Wire Cover
14W11293361 Whirlpool Refrigerator Wire Jumper
