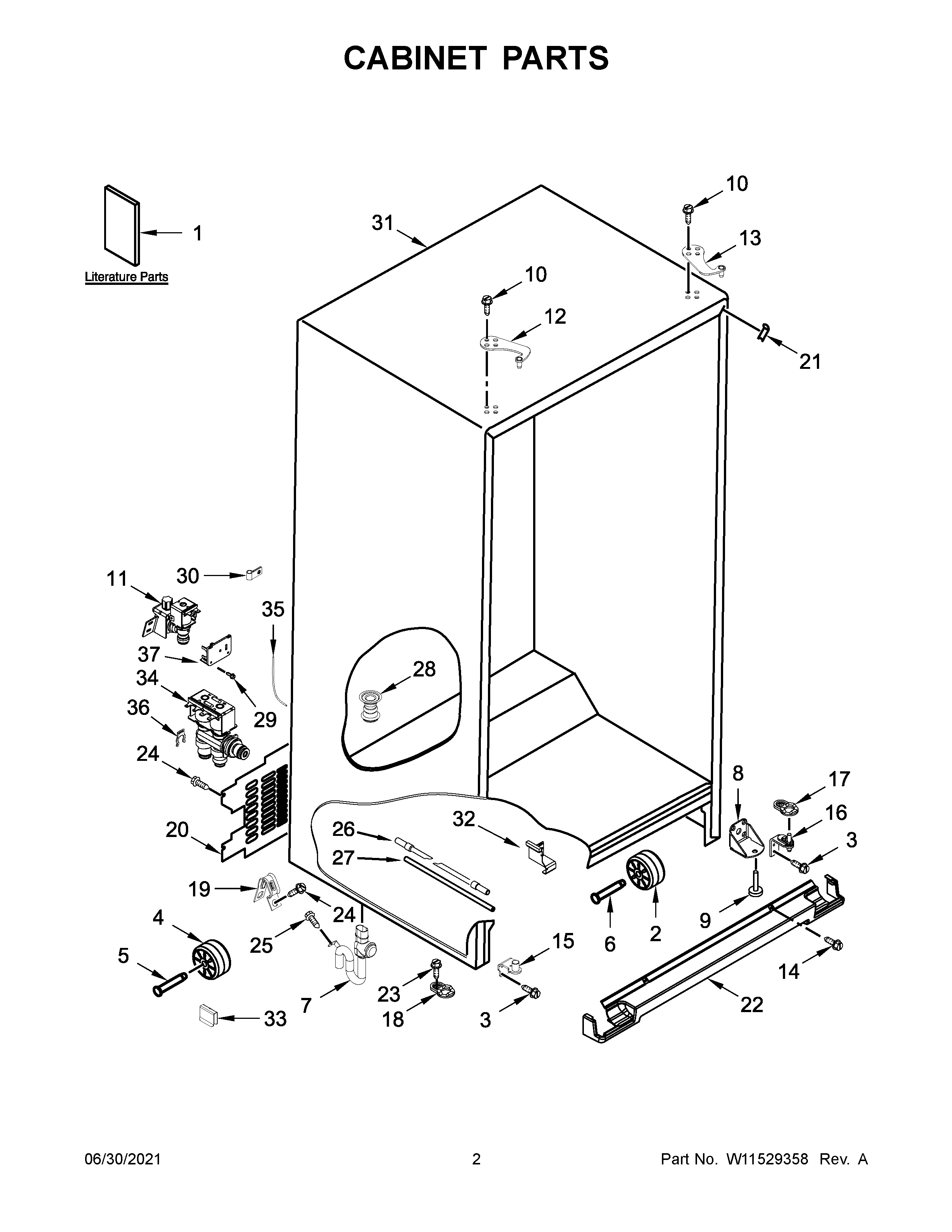

WRS571CIHW02 02 – CABINET PARTS

Products

Position	Product
1A	TECH SHEET
1B	ENERGY GUIDE
1	USE AND CARE GUIDE
2	WPW10475495 Whirlpool Roller Assembly
3	WPW10297485 Whirlpool Refrigerator Screw
4	WP67005149 Whirlpool Roller
5	67006434 Whirlpool Axle Pin
6	W11208384 Whirlpool Refrigerator Rivet
7	W11293072 Whirlpool Refrigerator Extension
8	W11266052 Whirlpool Refrigerator Bracket
9	WPW10141622 Whirlpool Leveler
10	WPW10308750 Whirlpool Refrigerator Screw
10A	WPW10308751 Whirlpool Screw
11	W11512399 Whirlpool Refrigerator Inlet Valve
12	W10901051 Whirlpool Refrigerator Door Hinge
12B	W11590581 Whirlpool Refrigerator Door Hinge
12A	W10901052 Whirlpool Refrigerator Door Hinge
13A	W11568758 Whirlpool Top Hinge
13	W11573587 Whirlpool Refrigerator Door Hinge
13B	HINGE-DOOR
14	WPW10142283 Whirlpool Refrigerator Screw
14B	WPW10308489 Whirlpool Refrigerator Screw
14A	WP98008545 Whirlpool Screw
15	W11293373 Whirlpool Refrigerator Door Hinge
15B	W11293374 Whirlpool Refrigerator Door Hinge
15A	W11269265 Whirlpool Refrigerator Door Hinge
16	W11320488 Whirlpool Refrigerator Door Hinge
16A	W11311416 Whirlpool Refrigerator Door Hinge
16B	W11292872 Whirlpool Refrigerator Door Hinge
17	W11311685 Whirlpool Refrigerator Door Cam
17A	W11311686 Whirlpool Closing Cam
17B	W11311687 Whirlpool Closing Cam
18A	W10770895 Whirlpool Refrigerator Door Cam
18	W10876198 Whirlpool Refrigerator Door Cam
18B	W10876191 Whirlpool Refrigerator Door Cam
19	W11234470 Whirlpool Refrigerator Clamp
20	W11453073 Whirlpool Unit Cover
21B	WP12587703AP Whirlpool Refrigerator Filler
21A	67003485 Whirlpool Refrigerator Corner Cover (Black)
21	12587703W Whirlpool Refrigerator Cover
22B	WPW10713153 Whirlpool Refrigerator Grille
22A	WPW10713158 Whirlpool Refrigerator Grille
22	WPW10713160 Whirlpool Refrigerator Grille
23	WP489483 Whirlpool Screw
24	SCREW
25	WP489464 Whirlpool Refrigerator Screw
26	WPW10279882 Whirlpool Water Line
27	WPW10279884 Whirlpool Water Tube
28	W10370680 Whirlpool Refrigerator Fitting
29	WPW10141625 Whirlpool Refrigerator Screw Assembly
30	WP488366 Whirlpool Refrigerator Clamp
31	CABINET (NOT A SERVICEABLE PART)
32	W10499011 Whirlpool Refrigerator Bracket
33	W11545866 Whirlpool Refrigerator Clip
34	VALVE-INLT REFR
35	WPW10238092 Whirlpool Refrigerator Water Tube
36A	W11678575 Whirlpool Ring
36	W11676611 Whirlpool Ring
37	W10847867 Whirlpool Refrigerator Bracket
