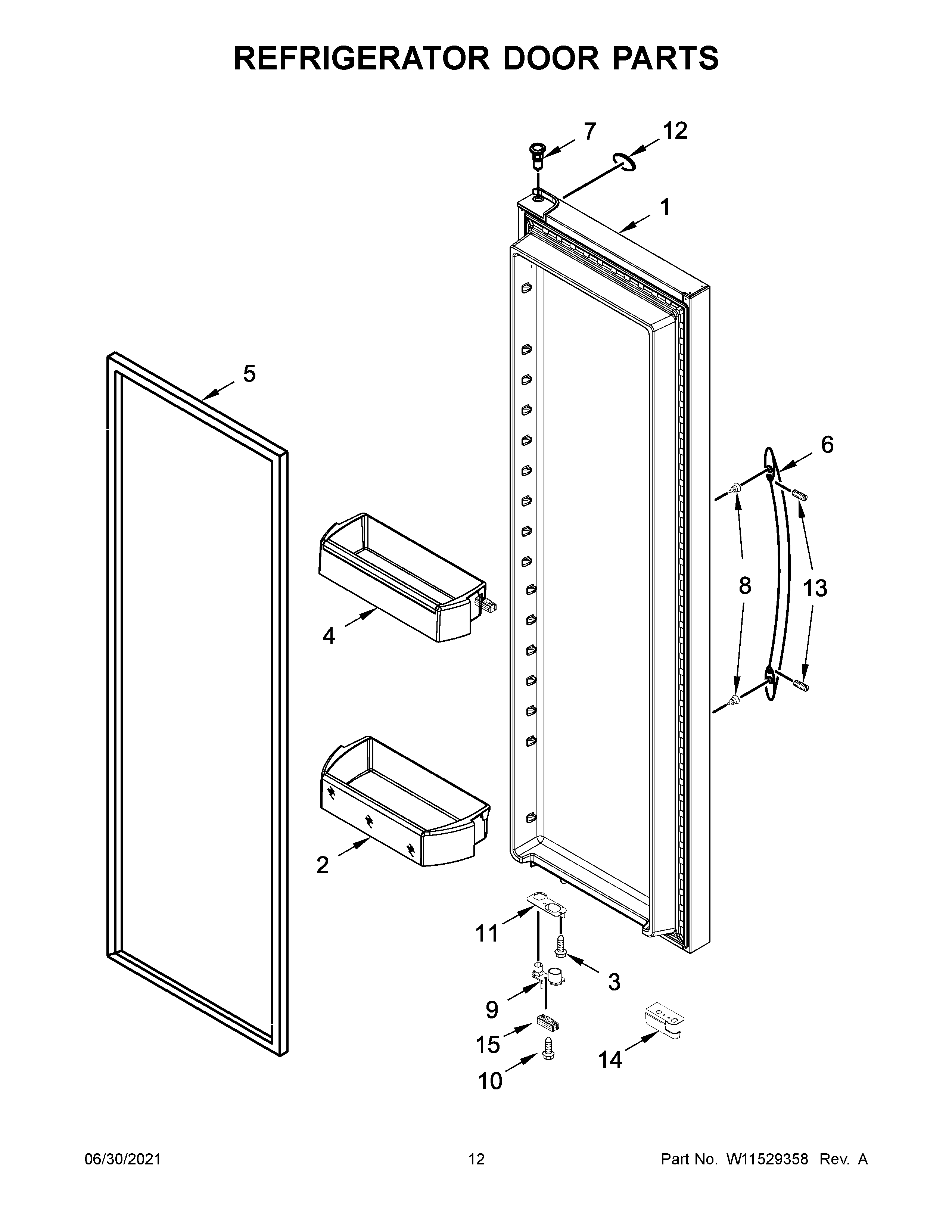

WRS571CIHW02 07 – REFRIGERATOR DOOR PARTS

WRS571CIHW02 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS571CIHW02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CLW11091610 Whirlpool Refrigerator Door Assembly
1LW11091611 Whirlpool Refrigerator DOR-FIP
1ALW11091614 Whirlpool Refrigerator Door FIP
1BLW11089631 Whirlpool Refrigerator Door Foam Assembly (Drop Ship)
2WPW10710203 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10451873 Whirlpool Door Shelf Bin
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5AWPW10249912 Whirlpool Refrigerator FIP Gasket
5BW10355582 Whirlpool Refrigerator Door Gasket
6W11432251 Whirlpool Refrigerator Handle
6AW11450221 Whirlpool Handle
6BW11450223 Whirlpool Handle
6CW11542651 Whirlpool Door Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9BWPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9AWPW10257201 Whirlpool Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12W11223753 Whirlpool Refrigerator Nameplate
13SCREW
14BW11661847 Whirlpool Wire Cover
14AW10789145 Whirlpool Refrigerator Wire Cover
14W10789144 Whirlpool Refrigerator Wire Cover
15BW11573367 Whirlpool Refrigerator Door Bumper
15BUMPER, DOOR (WHITE)
15AW10407187 Whirlpool Refrigerator Door Bumper
