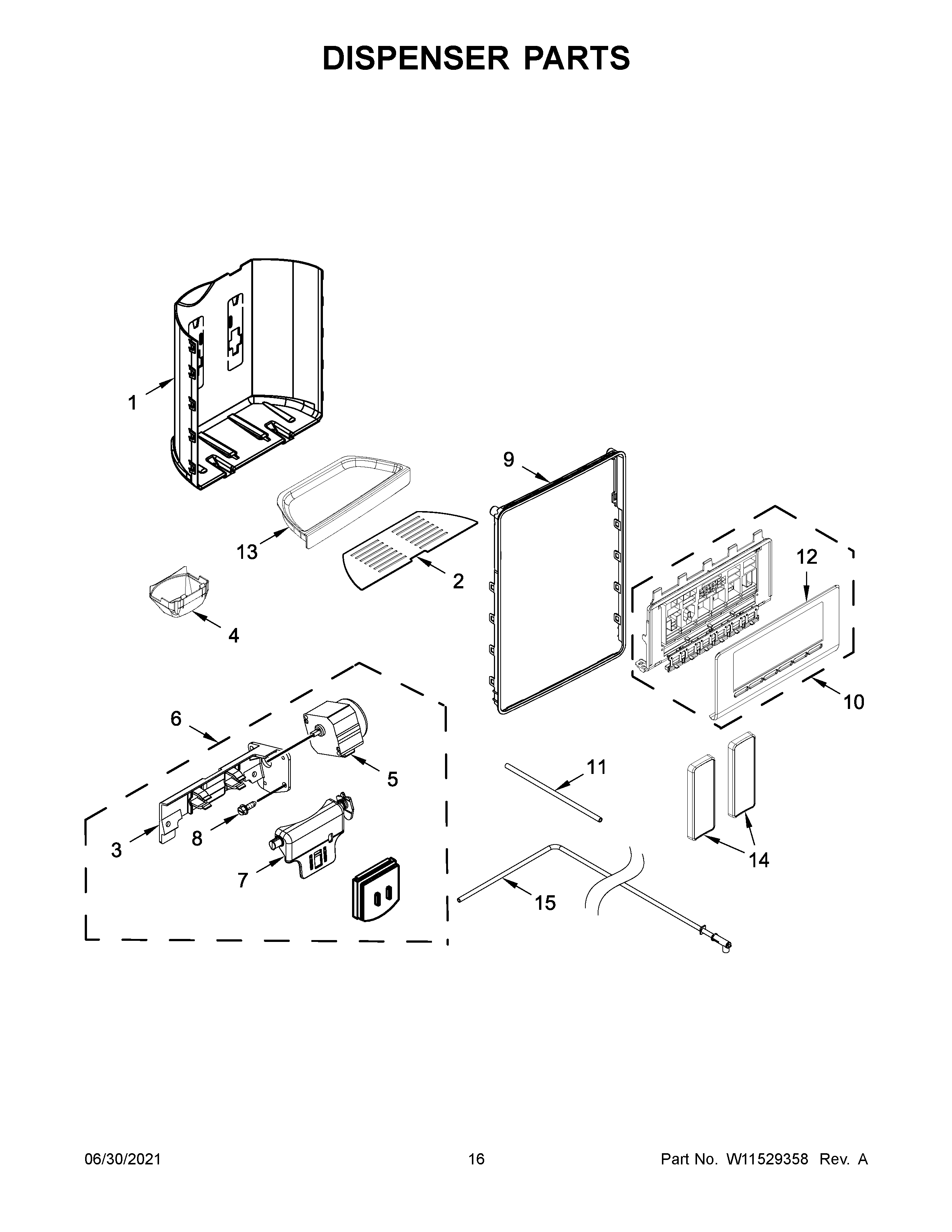

WRS571CIHW02 09 – DISPENSER PARTS

WRS571CIHW02 09 – DISPENSER PARTS

Written by

in

WRS571CIHW02 09 – DISPENSER PARTS

Products

PositionProduct
1BW10276226 Whirlpool Refrigerator Separator
1AW10254255 Whirlpool Refrigerator Separator
1W10254254 Whirlpool Refrigerator Separator
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11098702 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10276265 Whirlpool Refrigerator Dispense Trim
9AW10335549 Whirlpool Refrigerator Dispenser Trim
9BRING, TRIM (CHROMIUM FROST)
10W11239666-includeCORE Whirlpool W11239666 Refrigerator Electronic Control Board + Core
11W11620106 Whirlpool Water Tube
12W10458867 Whirlpool Refrigerator Escutcheon
13W10254258 Whirlpool Refrigerator Drip Tray
13AW10254259 Whirlpool Refrigerator Drip Tray
13BW10276225 Whirlpool Refrigerator Drip Tray
14PAD, ICE AND WATER (WHITE)
14AW10370577 Whirlpool Refrigerator Pad
14BW11624941 Whirlpool Refrigerator Pad
15WPW10279831 Whirlpool Refrigerator Water Tube
