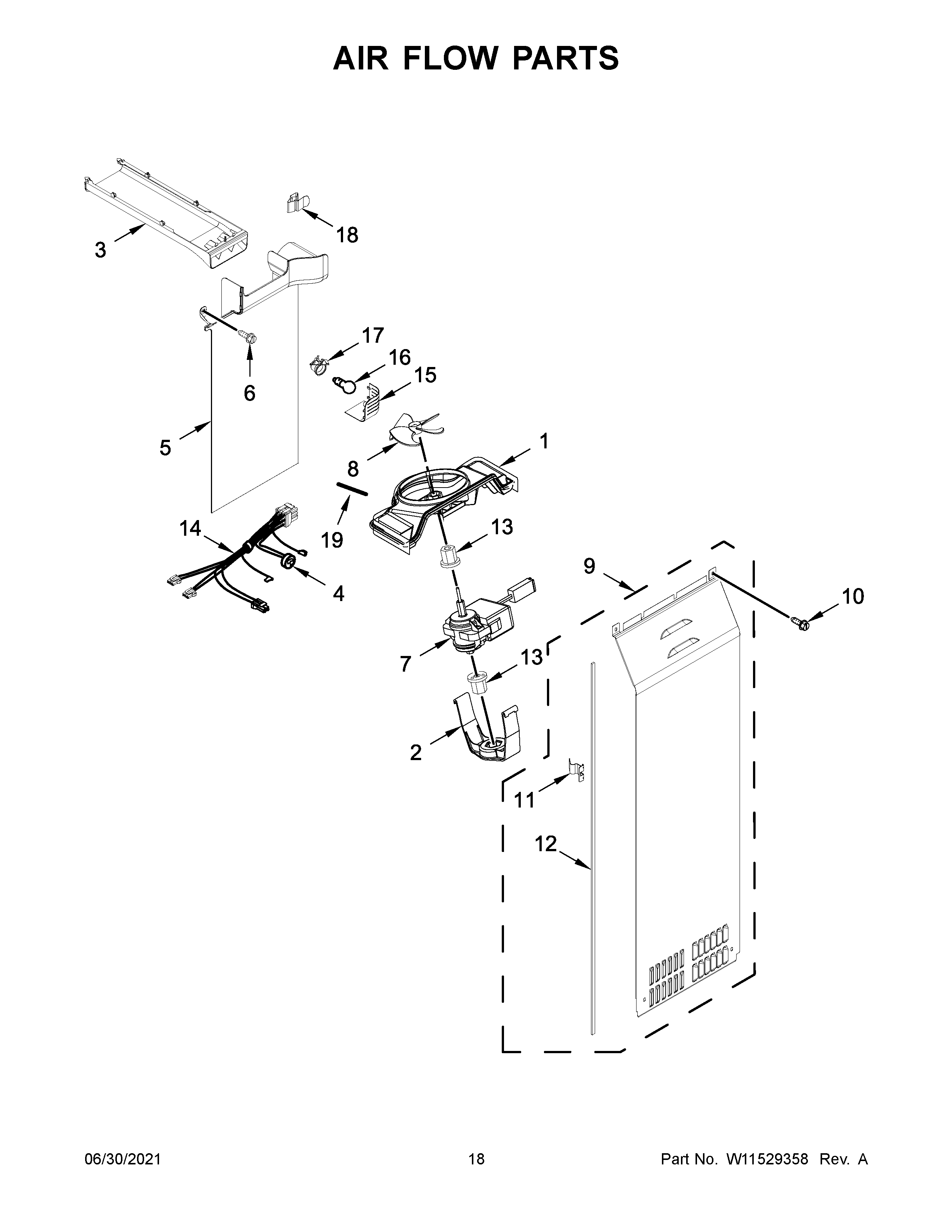

WRS571CIHW02 10 – AIR FLOW PARTS

WRS571CIHW02 10 – AIR FLOW PARTS

Written by

in

WRS571CIHW02 10 – AIR FLOW PARTS

Products

PositionProduct
1W10251462 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
3AIR DUCT, UPPER
4CABINET (NOT A SERVICEABLE PART)
5W10260378 Whirlpool Refrigerator Air Duct
6WP489478 Whirlpool Refrigerator Screw
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9WPW10388268 Whirlpool Refrigerator Evaporator Cover
10WP693995 Whirlpool Screw
11W11232019 Whirlpool Refrigerator Clip
12W10240370 Whirlpool Refrigerator Gasket
13WP2176759 Whirlpool Refrigerator Grommet
14W11566475 Whirlpool Refrigerator Wire Harness
15W10260382 Whirlpool Refrigerator Cover
16W11216993 Whirlpool Refrigerator Light Bulb
174387478 Whirlpool Refrigerator Light Socket
18W10331728 Whirlpool Refrigerator Clip
19W11205489 Whirlpool Foam Insert
