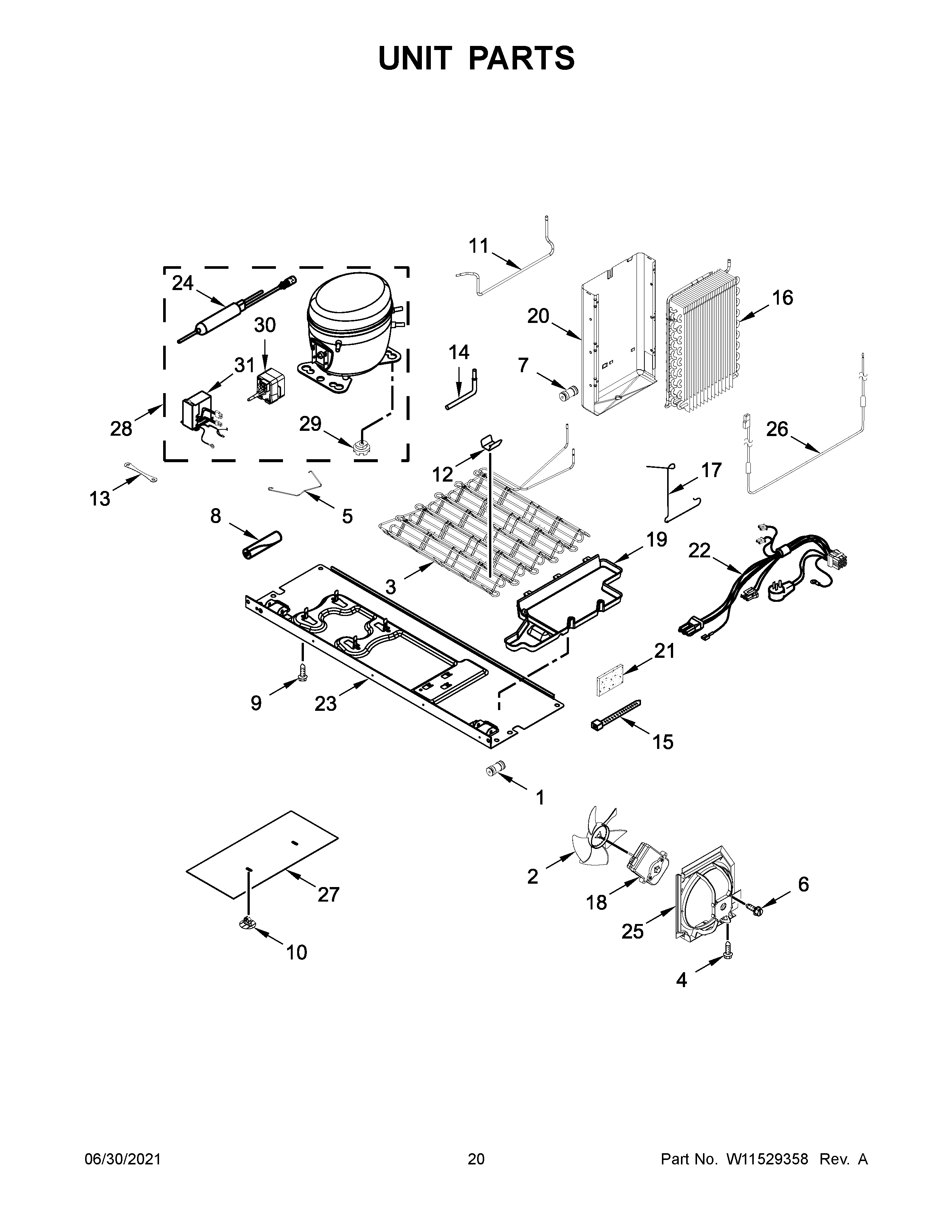

WRS571CIHW02 11 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	WP2300868 Whirlpool Refrigerator Fitting
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11708426 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	W11661170 Whirlpool Clip
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
10	W10815861 Whirlpool Refrigerator Clip
11	W11311688 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	W10236396 Whirlpool Refrigerator Strap
14	W11676464 Whirlpool Tube
15	WPW10339879 Whirlpool Wire Tie
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	W10714793 Whirlpool Refrigerator Evaporator Tray
20	W10274575 Whirlpool Refrigerator Shield
21	W11553819 Whirlpool Refrigerator Insulation
22	W11293381 Whirlpool Refrigerator Wire Harness
23	W10277704 Whirlpool Refrigerator Support
24	WPW10143759 Whirlpool Dryer Filter
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	WPW10495967 Whirlpool Refrigerator Heater
27	UNIT COVER, BOTTOM
28	W10233960 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	WPW10197428 Whirlpool Start Device
31	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
