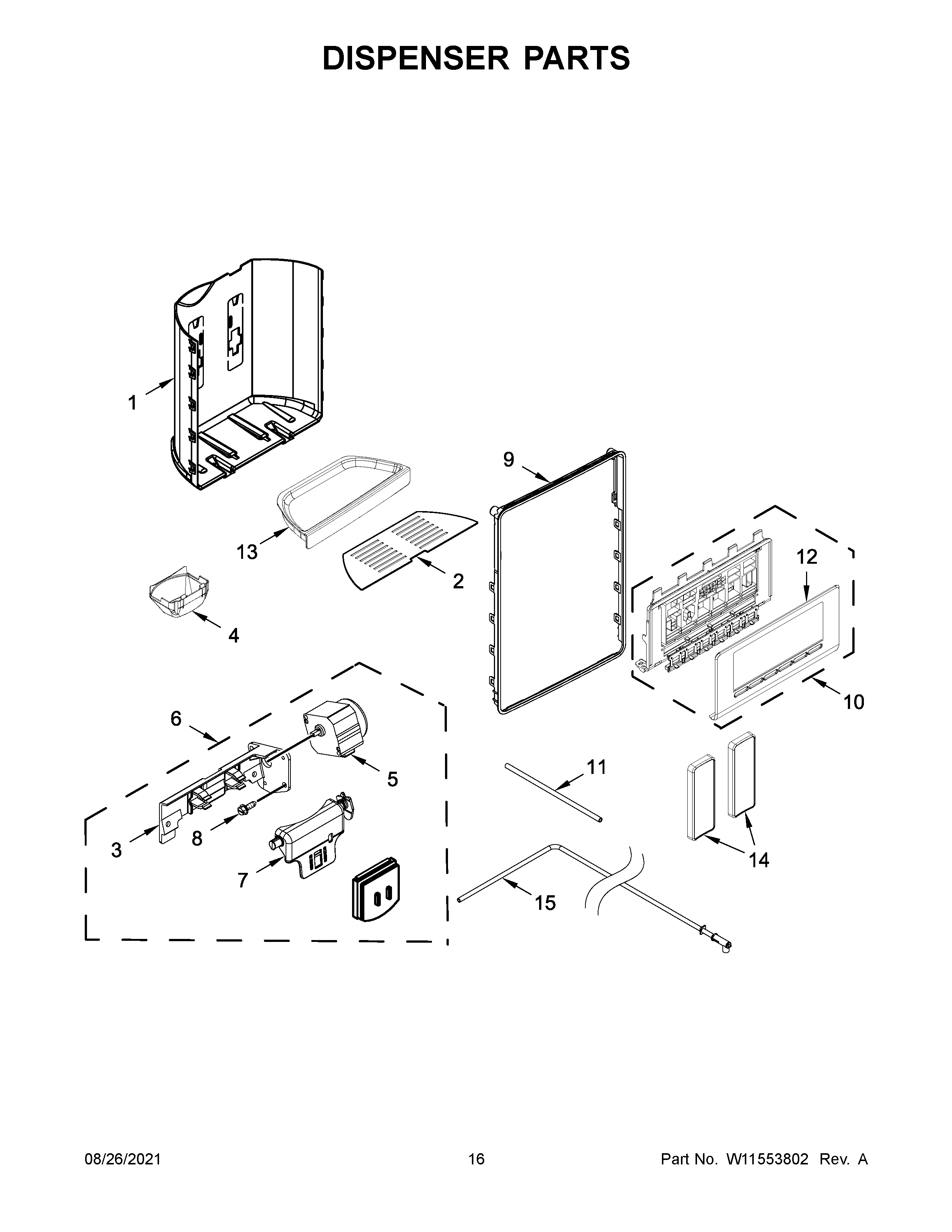

WRS571CIHW04 09 – DISPENSER PARTS

WRS571CIHW04 09 – DISPENSER PARTS

Written by

in

WRS571CIHW04 09 – DISPENSER PARTS

Products

PositionProduct
1W10254254 Whirlpool Refrigerator Separator
1AW10254255 Whirlpool Refrigerator Separator
1BW10276226 Whirlpool Refrigerator Separator
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11098702 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9BRING, TRIM (CHROMIUM FROST)
9AW10335549 Whirlpool Refrigerator Dispenser Trim
9W10276265 Whirlpool Refrigerator Dispense Trim
10W11567938-includeCORE Whirlpool W11567938 Refrigerator Electronic Control Board + Core
11W11533098 Whirlpool Refrigerator Water Tube
12COVER, FRONT (BLACK)
13AW10254259 Whirlpool Refrigerator Drip Tray
13BW10276225 Whirlpool Refrigerator Drip Tray
13W10254258 Whirlpool Refrigerator Drip Tray
14PAD, ICE AND WATER (WHITE)
14AW10370577 Whirlpool Refrigerator Pad
14BW11624941 Whirlpool Refrigerator Pad
15W11567542 Whirlpool Refrigerator Water Tube
