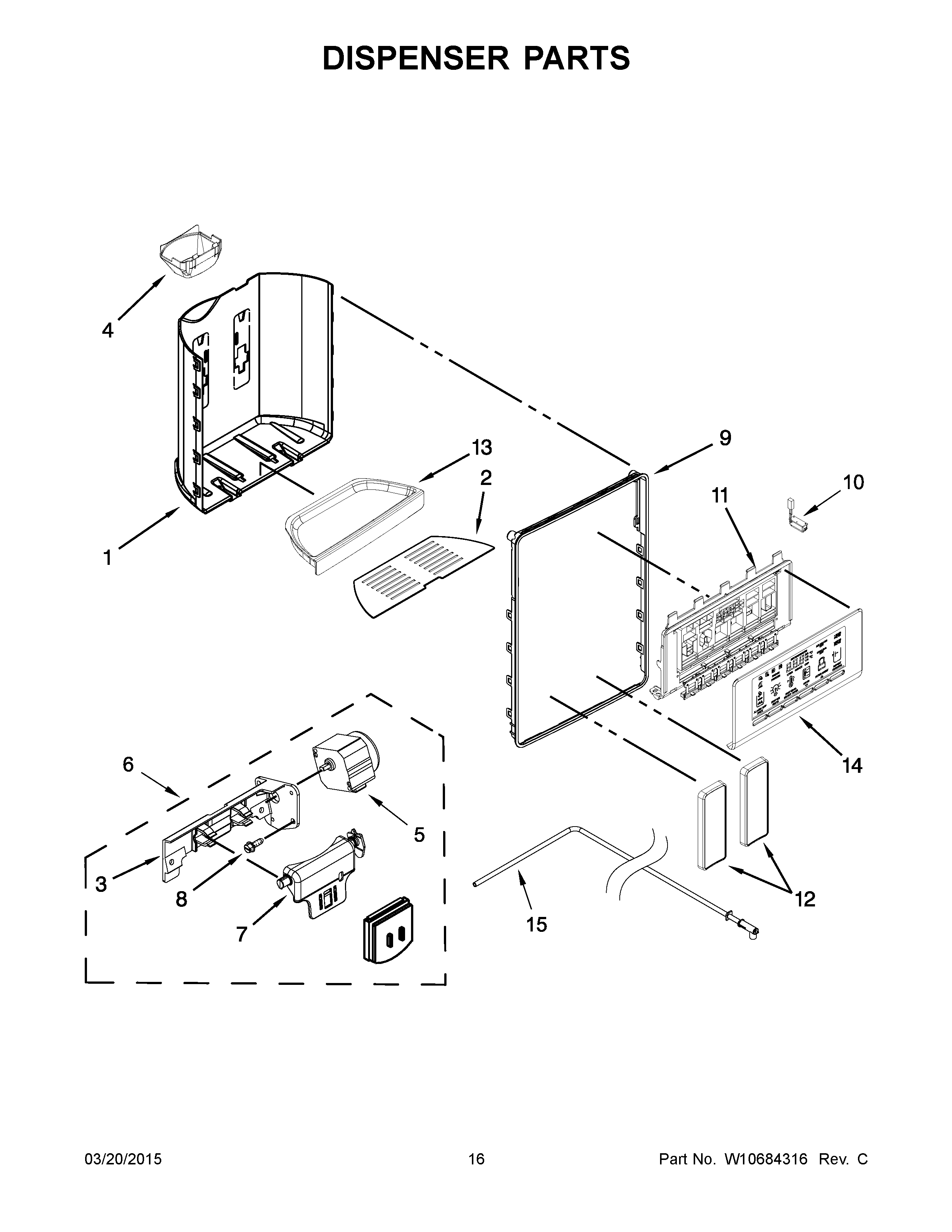

WRS576FIDB00 09 – DISPENSER PARTS

WRS576FIDB00 09 – DISPENSER PARTS

Written by

in

WRS576FIDB00 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AWPW10276221 Whirlpool Refrigerator Grille
2WPW10276220 Whirlpool Refrigerator Grille
2BWPW10276223 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6WPW10493172 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10276186 Whirlpool Refrigerator Dispenser Trim
9ATRIM RING (BLACK)
9BW10276227 Whirlpool Refrigerator Dispense Trim
10W11290115 Whirlpool Refrigerator Light
11WPW10714048-includeCORE Whirlpool WPW10714048 Refrigerator Electronic Control Board + Core
12AWPW10370592 Whirlpool Refrigerator Pad
12WPW10370593 Whirlpool Refrigerator Pad
12BWPW10370594 Whirlpool Refrigerator Pad
13W10276193 Whirlpool Refrigerator Disp Tray
13AW10276194 Whirlpool Refrigerator Drip Tray
13BW11246841 Whirlpool Refrigerator Drip Tray
14W10276229 Whirlpool Refrigerator Escutcheon
15WPW10386778 Whirlpool Refrigerator Water Tube
