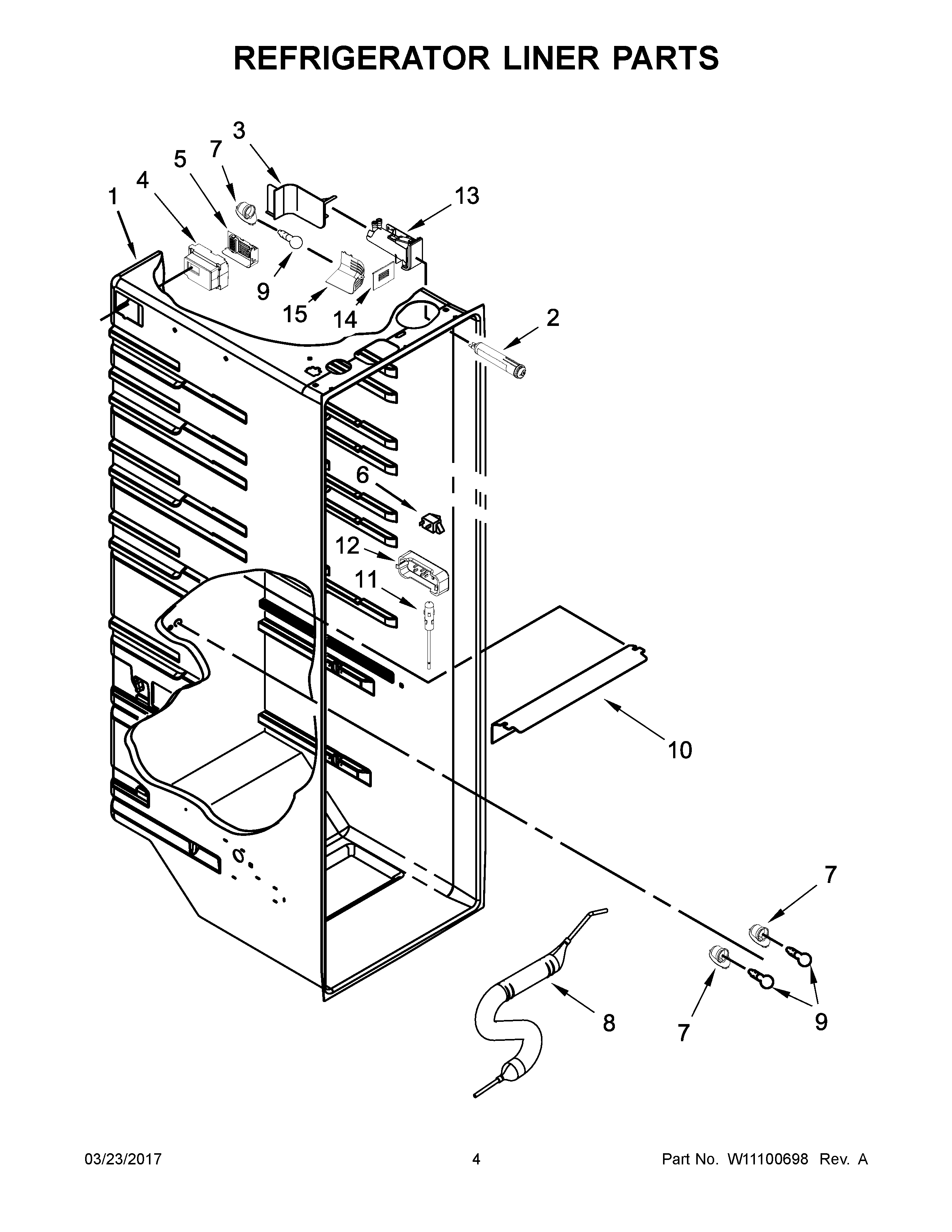

WRS576FIDB02 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
3W11501035 Whirlpool Refrigerator Filter Cover
4W11164593 Whirlpool Damper Control Assembly
5WPW10457601 Whirlpool Refrigerator Support
6W11384469 Whirlpool Door Switch
74387478 Whirlpool Refrigerator Light Socket
8W11613294 Whirlpool Refrigerator Reservoir
9W11216993 Whirlpool Refrigerator Light Bulb
10WPW10269099 Whirlpool Refrigerator Light Lens
11THERMISTOR
12WPW10425252 Whirlpool Refrigerator Cover
13WPW10394053 Whirlpool Refrigerator Housing
14WPW10457603 Whirlpool Refrigerator Cover
15W10893232 Whirlpool Refrigerator Cover
