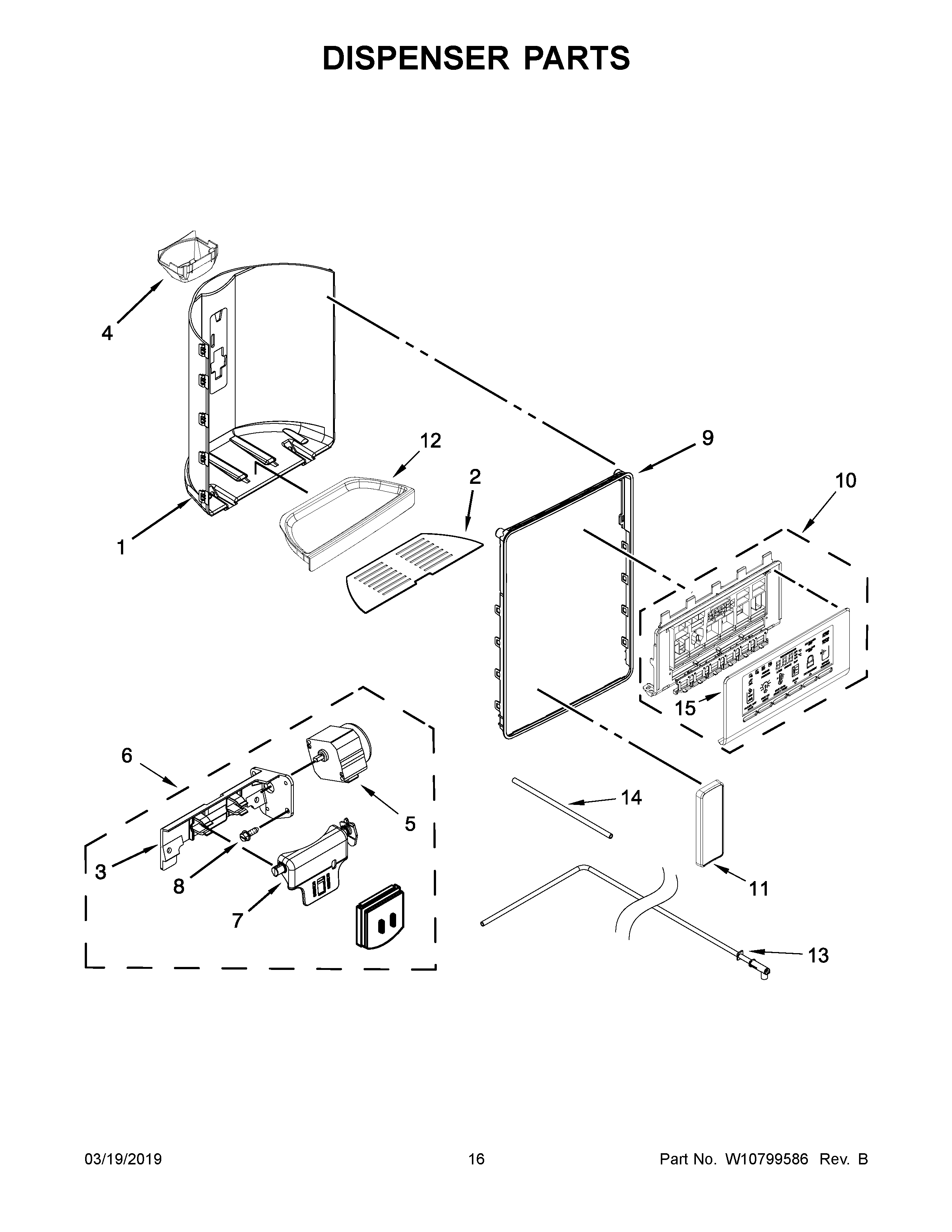

WRS576FIDM01 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2BWPW10276223 Whirlpool Refrigerator Grille
2AWPW10276221 Whirlpool Refrigerator Grille
2WPW10276220 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11096215 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9WPW10276186 Whirlpool Refrigerator Dispenser Trim
9BW10276227 Whirlpool Refrigerator Dispense Trim
9ATRIM RING (BLACK)
10WPW10758671-includeCORE Whirlpool WPW10758671 Refrigerator Electronic Control Board + Core
11BWPW10370594 Whirlpool Refrigerator Pad
11WPW10370593 Whirlpool Refrigerator Pad
11AWPW10370592 Whirlpool Refrigerator Pad
12AW10276194 Whirlpool Refrigerator Drip Tray
12W10276193 Whirlpool Refrigerator Disp Tray
12BW11246841 Whirlpool Refrigerator Drip Tray
13WPW10386778 Whirlpool Refrigerator Water Tube
14W11619800 Whirlpool Refrigerator Water Tube
15W10276229 Whirlpool Refrigerator Escutcheon
