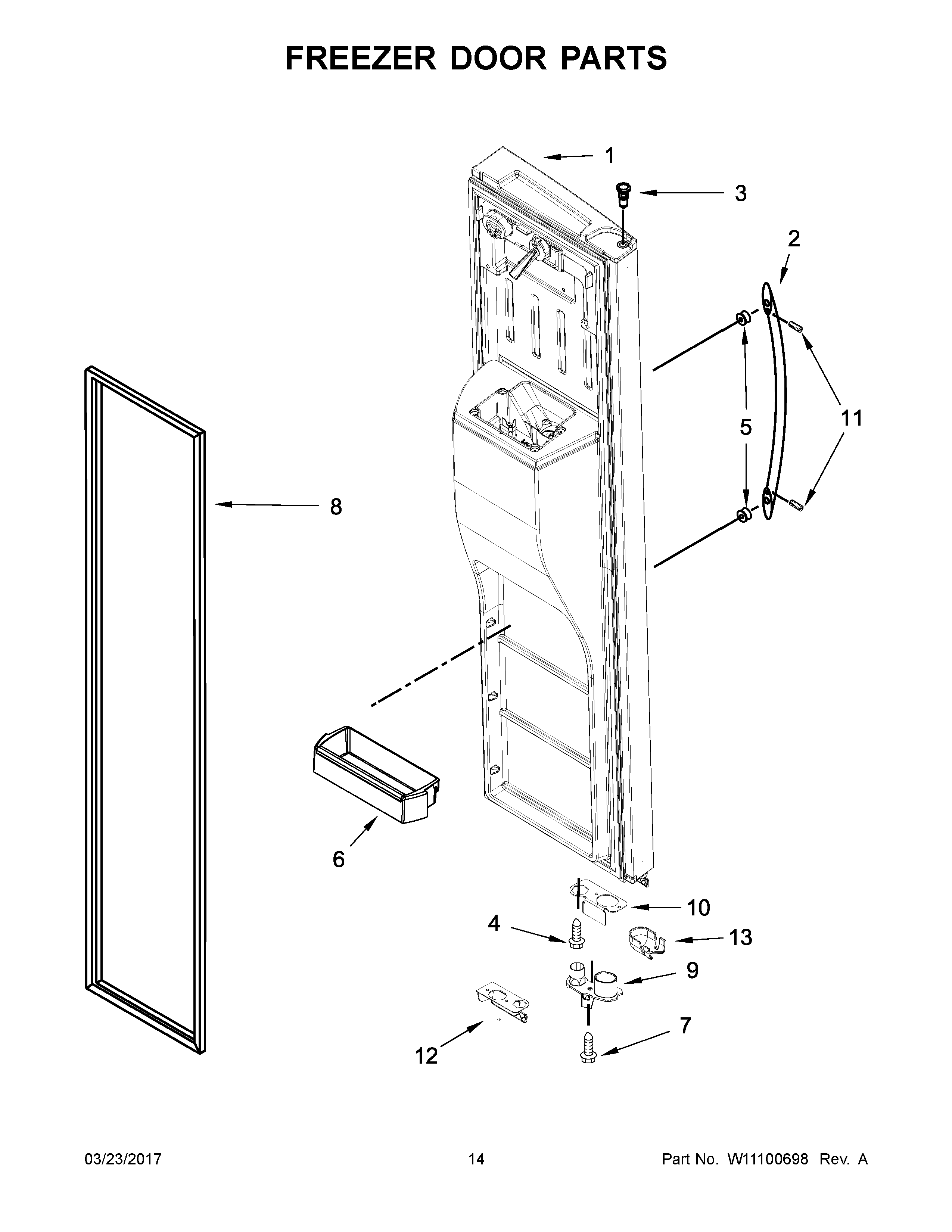

WRS576FIDM02 08 – FREEZER DOOR PARTS

WRS576FIDM02 08 – FREEZER DOOR PARTS

Written by

in

WRS576FIDM02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BLW10669497 Whirlpool Refrigerator DOR-FIP
1ADOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2AW10805245 Whirlpool Door Handle
2W10848410 Whirlpool Refrigerator Handle
2BW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN-CNTLVR
7SCREW
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
8WPW10247885 Whirlpool Door Gasket
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
9WPW10248015 Whirlpool Refrigerator Door Cam
9AW11607100 Whirlpool Refrigerator Thimble Cam
9BWPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
11AWPW10010150 Whirlpool Refrigerator Screw
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
13W10323148 Whirlpool Refrigerator Wire Cover
