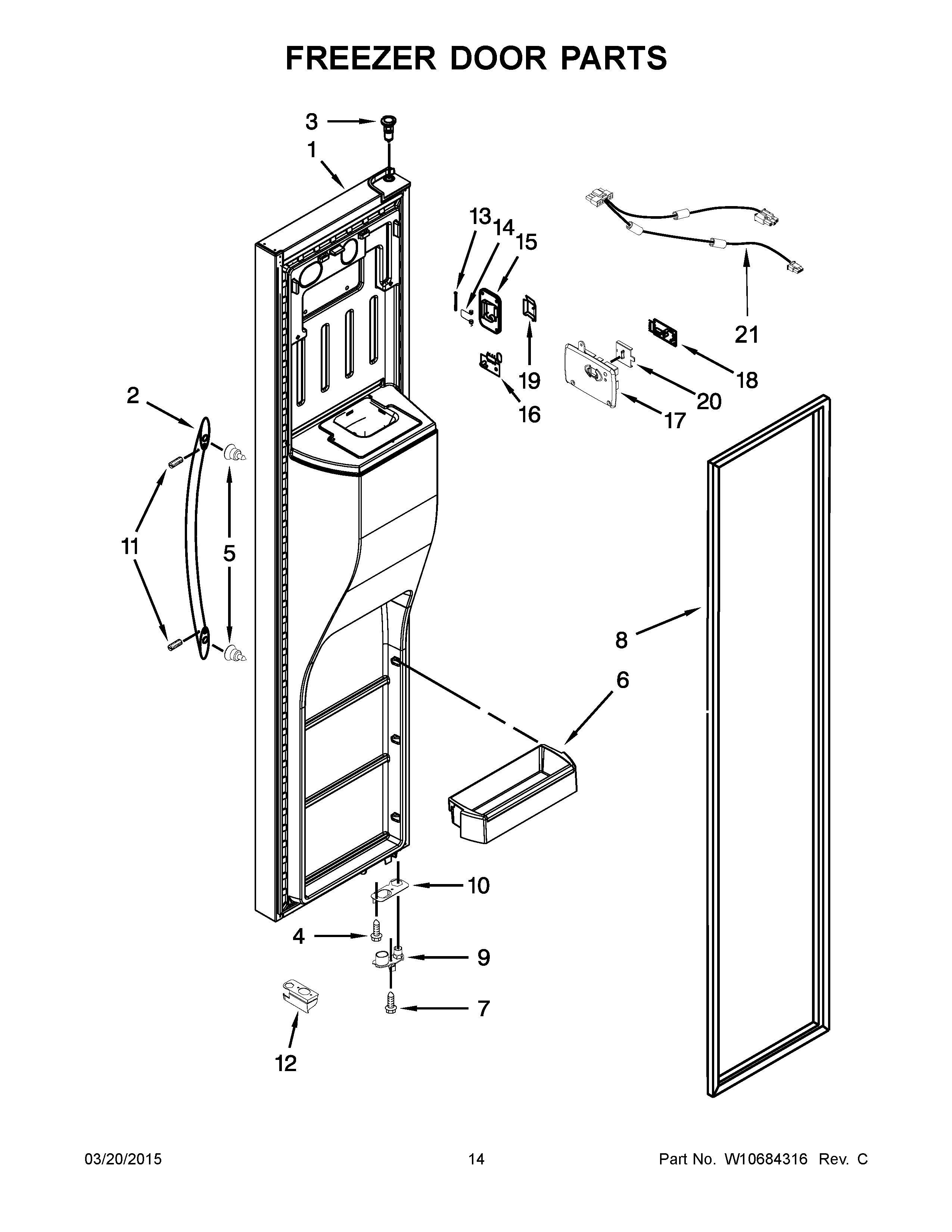

WRS576FIDW00 08 – FREEZER DOOR PARTS

WRS576FIDW00 08 – FREEZER DOOR PARTS

Written by

in

WRS576FIDW00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BDOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1ADOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2AW10805245 Whirlpool Door Handle
2W10848410 Whirlpool Refrigerator Handle
2BW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10296857 Whirlpool Refrigerator Cantilever Bin
7SCREW
8WPW10247885 Whirlpool Door Gasket
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
9AW11607100 Whirlpool Refrigerator Thimble Cam
9BWPW10257206 Whirlpool Refrigerator Door Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
11AWPW10010150 Whirlpool Refrigerator Screw
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12BWPW10632062 Whirlpool Refrigerator Wire Cover
13WP2198634 Whirlpool Door Pin
14WP2198635 Whirlpool Refrigerator Spring
15W10258502 Whirlpool Refrigerator Cover
16W10870822 Whirlpool Refrigerator Electronic Control Board
17COVER, RECEIVER
18W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19FLIPPER
20W10258540 Whirlpool Refrigerator Slide
21W10411699 Whirlpool Refrigerator Wire Harness
