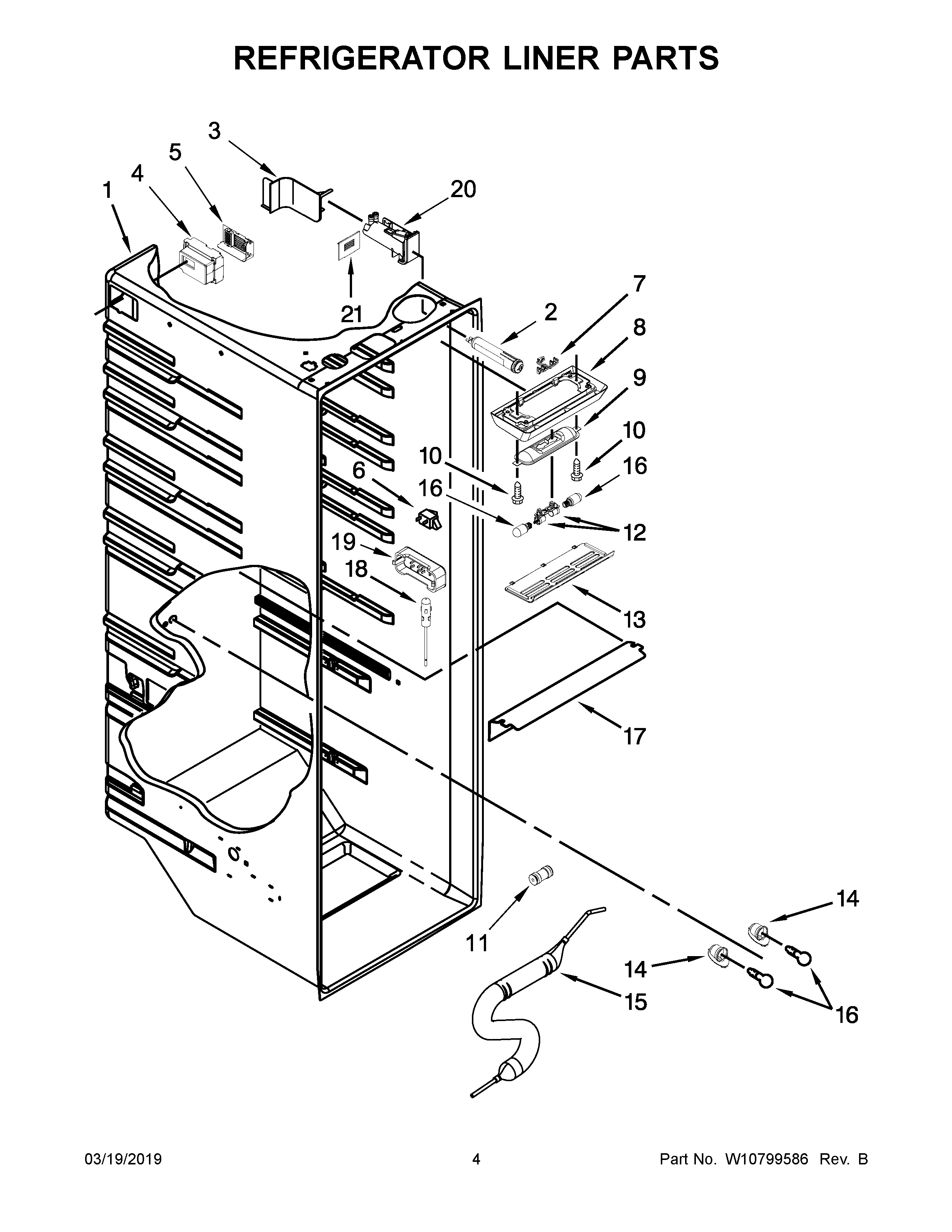

WRS576FIDW01 03 – REFRIGERATOR LINER PARTS

WRS576FIDW01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS576FIDW01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
3W11501035 Whirlpool Refrigerator Filter Cover
4W11164593 Whirlpool Damper Control Assembly
5WPW10457601 Whirlpool Refrigerator Support
6W11123941 Whirlpool Refrigerator Switch
7W10253300 Whirlpool Refrigerator Wire Jumper
8W10280178 Whirlpool Refrigerator Trim
92223680 Whirlpool Refrigerator Shield
10WP3400906 Whirlpool Refrigerator Screw
11WPW10271543 Whirlpool Refrigerator Connector
12W11661565 Whirlpool Refrigerator Socket
13W10280420 Whirlpool Refrigerator Light Lens
144387478 Whirlpool Refrigerator Light Socket
15W11613294 Whirlpool Refrigerator Reservoir
16W11518235 Whirlpool LED Light
17WPW10269099 Whirlpool Refrigerator Light Lens
18THERMISTOR
19WPW10425252 Whirlpool Refrigerator Cover
20WPW10394053 Whirlpool Refrigerator Housing
21WPW10457603 Whirlpool Refrigerator Cover
