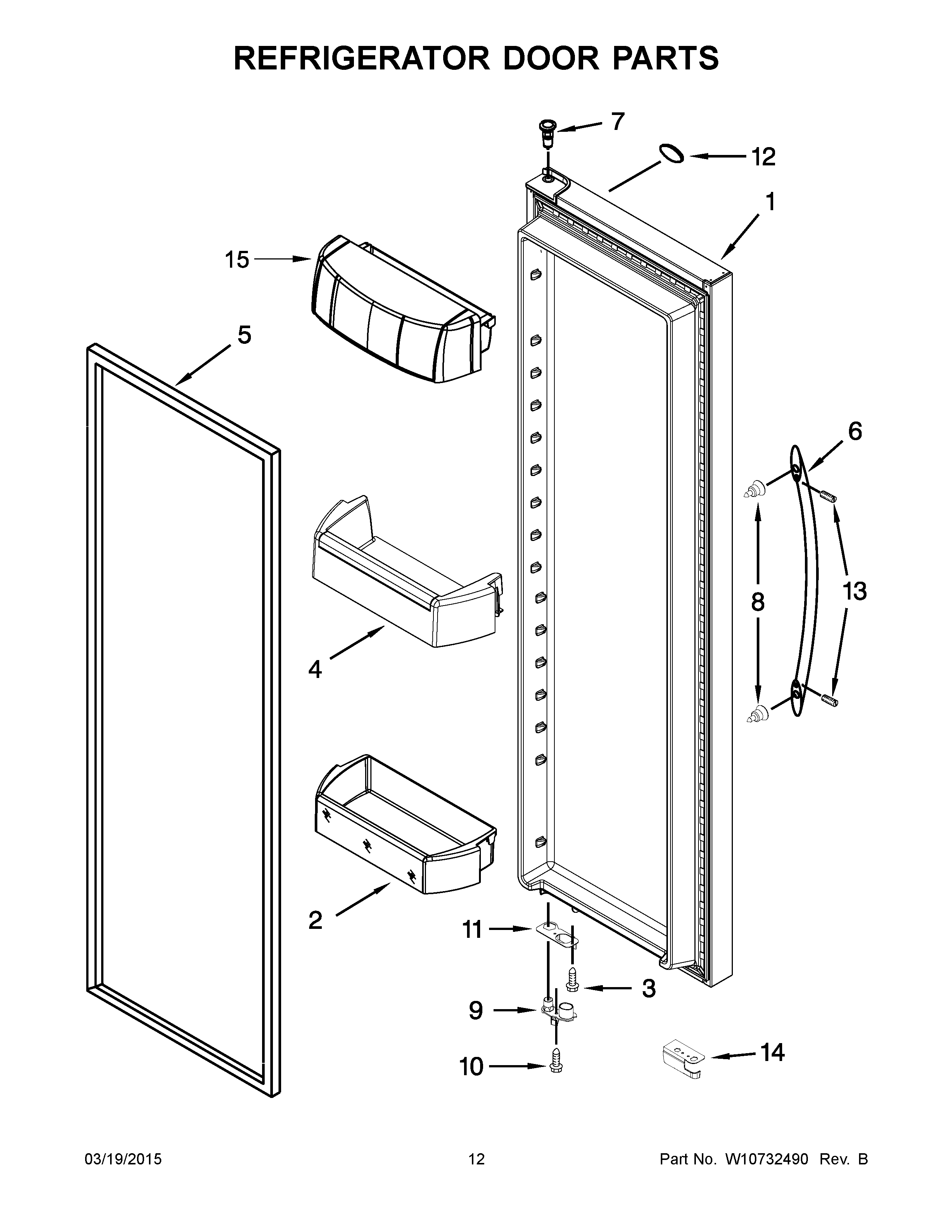

WRS586FIDH00 07 – REFRIGERATOR DOOR PARTS

WRS586FIDH00 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS586FIDH00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BLW10651576 Whirlpool Refrigerator Door FIP
1AREFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
2WPW10527271 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10296855 Whirlpool Refrigerator Door Bin
5AWPW10249912 Whirlpool Refrigerator FIP Gasket
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5BW10355582 Whirlpool Refrigerator Door Gasket
6W10899551 Whirlpool Door Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9AWPW10257201 Whirlpool Door Closing Cam
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9BWPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12AWPW10511972 Whirlpool Refrigerator Nameplate
12WPW10511975 Whirlpool Refrigerator Nameplate
13SCREW
14BW11661847 Whirlpool Wire Cover
14W10789144 Whirlpool Refrigerator Wire Cover
14AW10257216 Whirlpool Refrigerator Wire Cover
15WPW10324760 Whirlpool Refrigerator Door Shelf Bin
