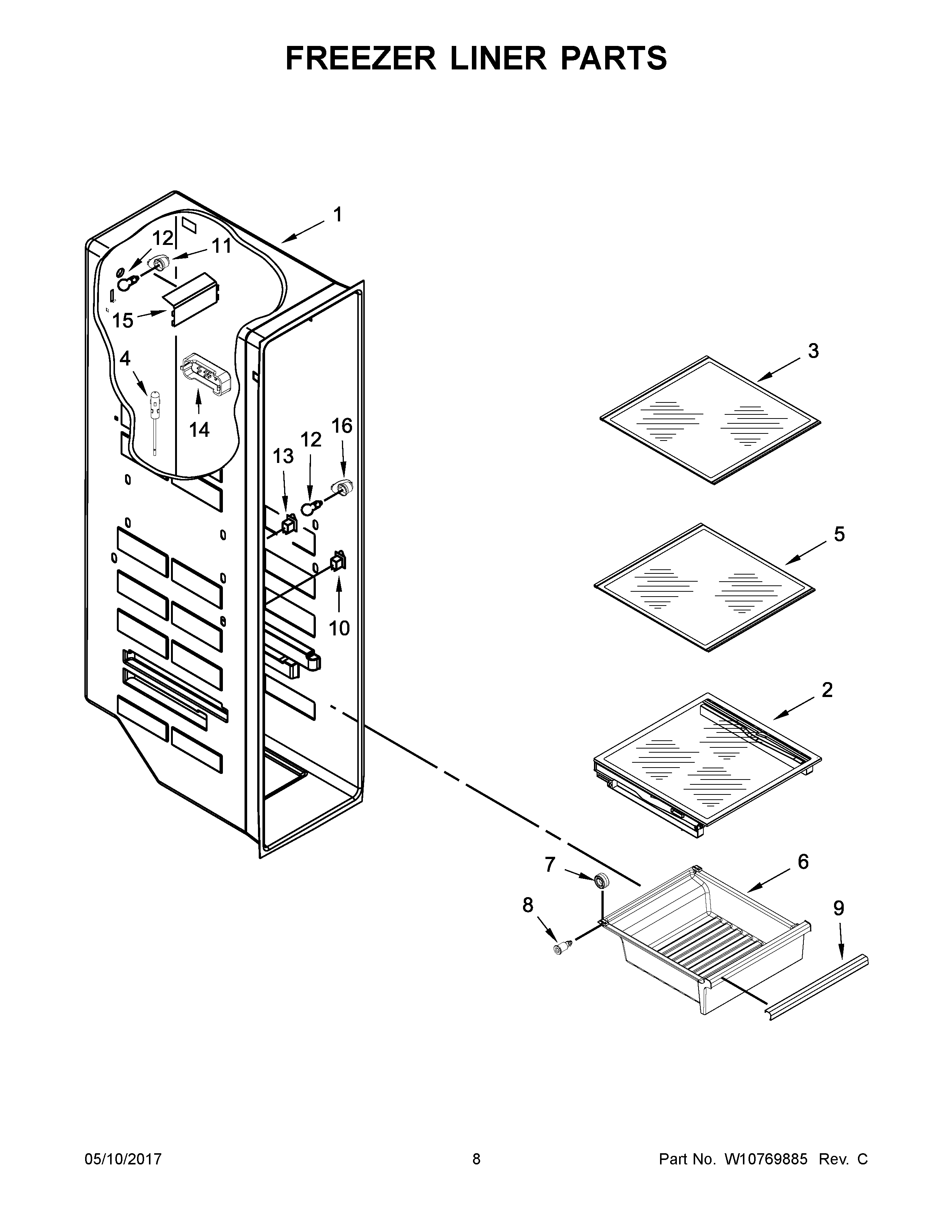

WRS586FIEE00 05 – FREEZER LINER PARTS

WRS586FIEE00 05 – FREEZER LINER PARTS

Written by

in

WRS586FIEE00 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11193485 Whirlpool Refrigerator Cover
3W11097339 Whirlpool Refrigerator Glass Shelf
4THERMISTOR
5W11097340 Whirlpool Glass Shelf
6WPW10260985 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8W11175807 Whirlpool Axle Assembly
9W11236850 Whirlpool Refrigerator Pan Trim
10W11396033 Whirlpool Refrigerator Rocker Switch
114387478 Whirlpool Refrigerator Light Socket
12W11216993 Whirlpool Refrigerator Light Bulb
13W11123943 Whirlpool Refrigerator Switch
14WPW10425252 Whirlpool Refrigerator Cover
15WPW10269101 Whirlpool Refrigerator Light Lens
16SOCKET
