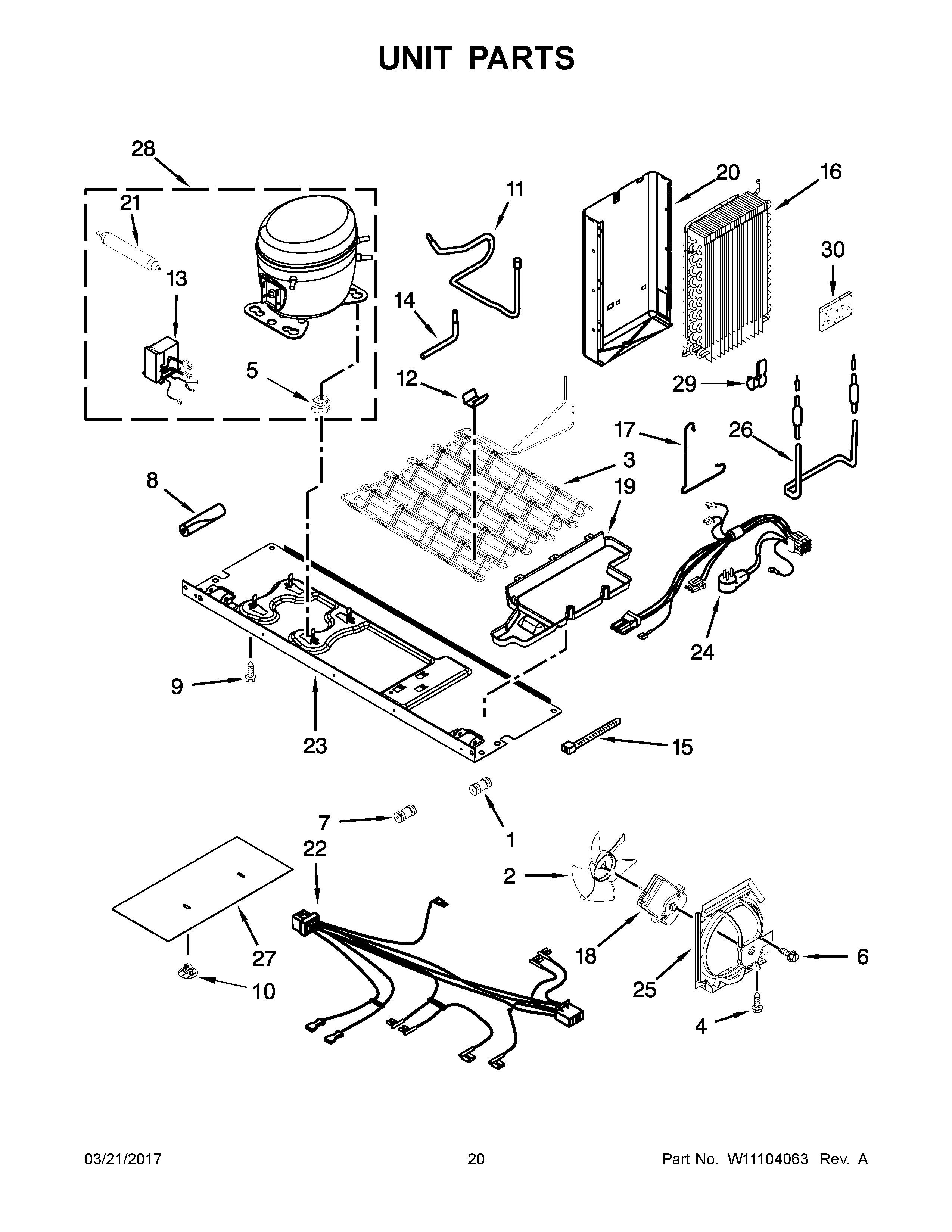

WRS586FIEE03 11 – UNIT PARTS

Products

PositionProduct
NIWP978025 Whirlpool Refrigerator Valve
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
1WP2300868 Whirlpool Refrigerator Fitting
2W11458267 Whirlpool Refrigerator Fan Blade
3W11673437 Whirlpool Condenser Assembly
4W10142255 Whirlpool Screw
5W11661108 Whirlpool Grommet
6WPW10171469 Whirlpool Refrigerator Screw
7WPW10277958 Whirlpool Refrigerator Fitting
8SLEEVE
9BOLT
10W10815861 Whirlpool Refrigerator Clip
11W11311688 Whirlpool Refrigerator Tube
12W10683556 Whirlpool Refrigerator Clip
13W11087200 Whirlpool Refrigerator Inverter Box
14W10858105 Whirlpool Refrigerator Tube
15WPW10339879 Whirlpool Wire Tie
16WP2188822 Whirlpool Refrigerator Evaporator
17Clamp
18W11127829 Whirlpool Refrigerator Condenser Motor
19W10703218 Whirlpool Refrigerator Evaporator Tray
20W10274575 Whirlpool Refrigerator Shield
21WPW10143759 Whirlpool Dryer Filter
22W11700341 Whirlpool Wire Harness
23W10680691 Whirlpool Refrigerator Support Assembly
24WPW10242407 Whirlpool Refrigerator Power Cord
25WPW10251467 Whirlpool Refrigerator Air Baffle
26WPW10495967 Whirlpool Refrigerator Heater
27W10278140 Whirlpool Refrigerator Unit Cover
28W10779331 Whirlpool Refrigerator Compressor
29W11623163 Whirlpool Refrigerator Clip
30W11553819 Whirlpool Refrigerator Insulation
