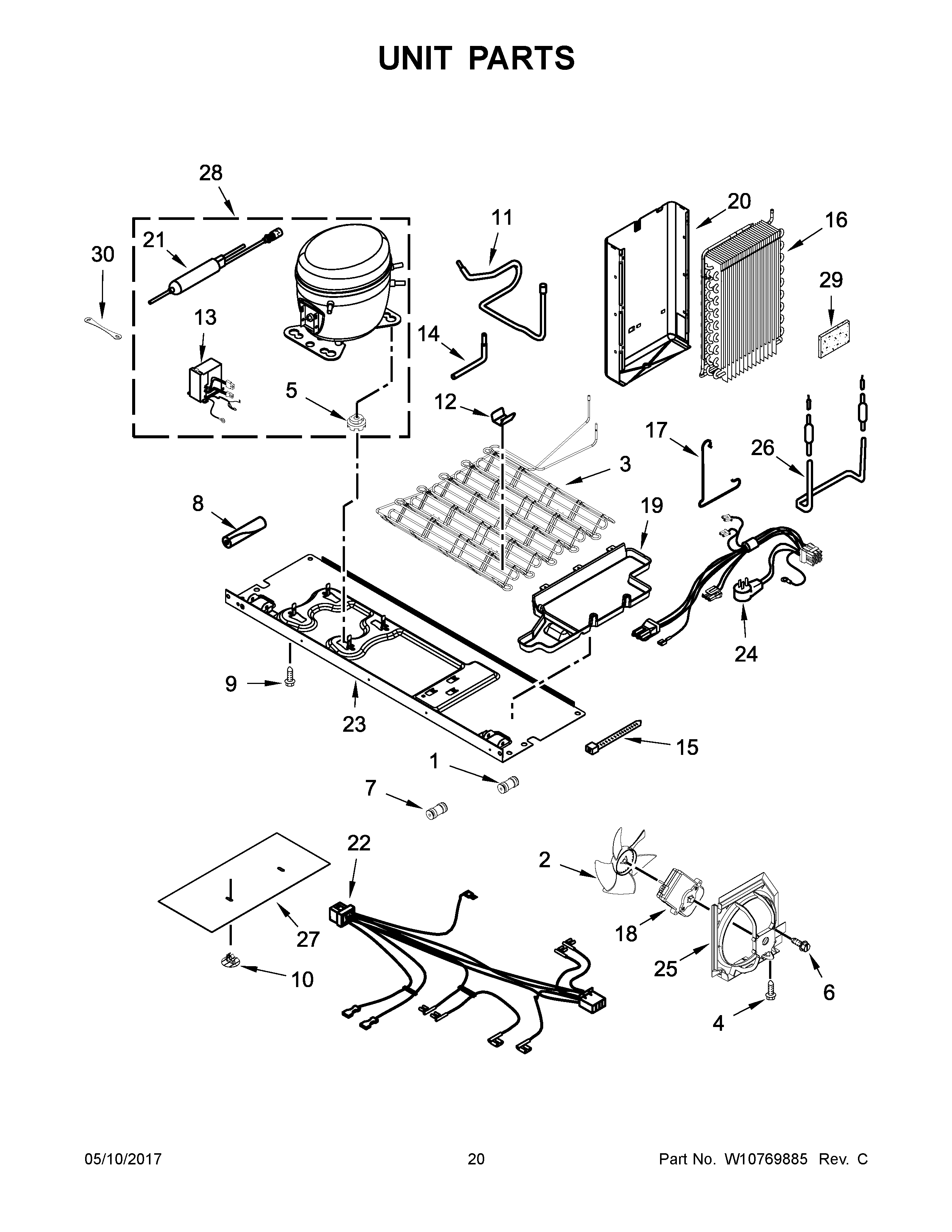

WRS586FIEH00 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	WP2300868 Whirlpool Refrigerator Fitting
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11673437 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	W11661108 Whirlpool Grommet
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
10	W10815861 Whirlpool Refrigerator Clip
11	W11311688 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	W10893917 Whirlpool Refrigerator Inverter Box
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	W10703218 Whirlpool Refrigerator Evaporator Tray
20	W10274575 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	W11700341 Whirlpool Wire Harness
23	W10277704 Whirlpool Refrigerator Support
24	WPW10242407 Whirlpool Refrigerator Power Cord
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	WPW10495967 Whirlpool Refrigerator Heater
27	W10278140 Whirlpool Refrigerator Unit Cover
28	W10734018 Whirlpool Refrigerator Compressor
29	W11553819 Whirlpool Refrigerator Insulation
30	W10236396 Whirlpool Refrigerator Strap
