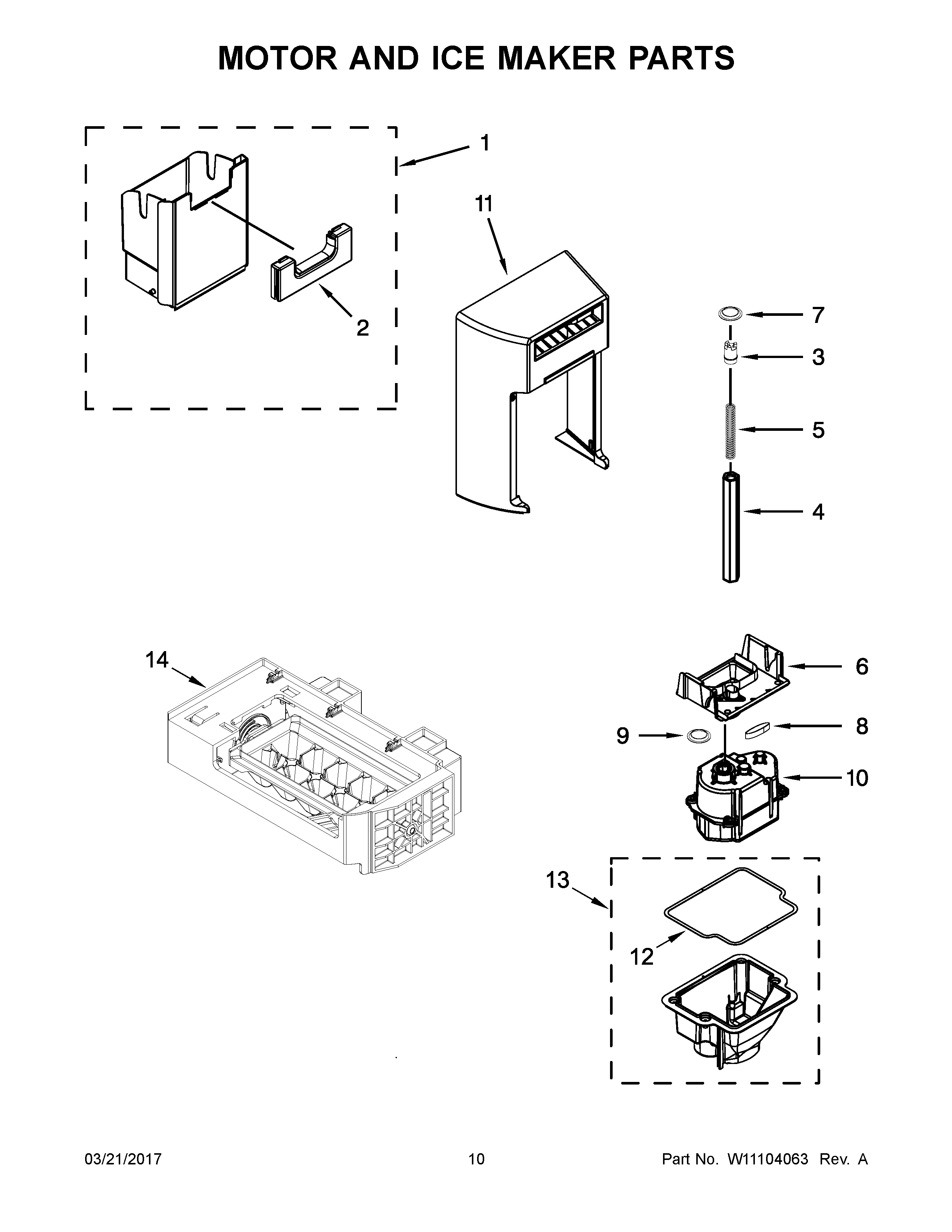

WRS586FIEH03 06 – MOTOR AND ICE MAKER PARTS

Products

PositionProduct
1W11109888 Whirlpool Refrigerator Ice Container
2W11652042 Whirlpool Bin Latch
3WP2220458 Whirlpool Drive Cam
4WPW10258544 Whirlpool Refrigerator Shaft
5W10852956 Whirlpool Refrigerator Spring
6CHUTE
7WP2198628 Whirlpool Door Seal
8WPW10291905 Whirlpool Seal
9WP2212370 Whirlpool Washer
10W11202789 Whirlpool Auger Motor
11WPW10287594 Whirlpool Refrigerator Front Cover
12W10166854 Whirlpool Refrigerator Gasket
13W11678273 Whirlpool Bracket
14WPW10251076 Whirlpool Icemaker Assembly
