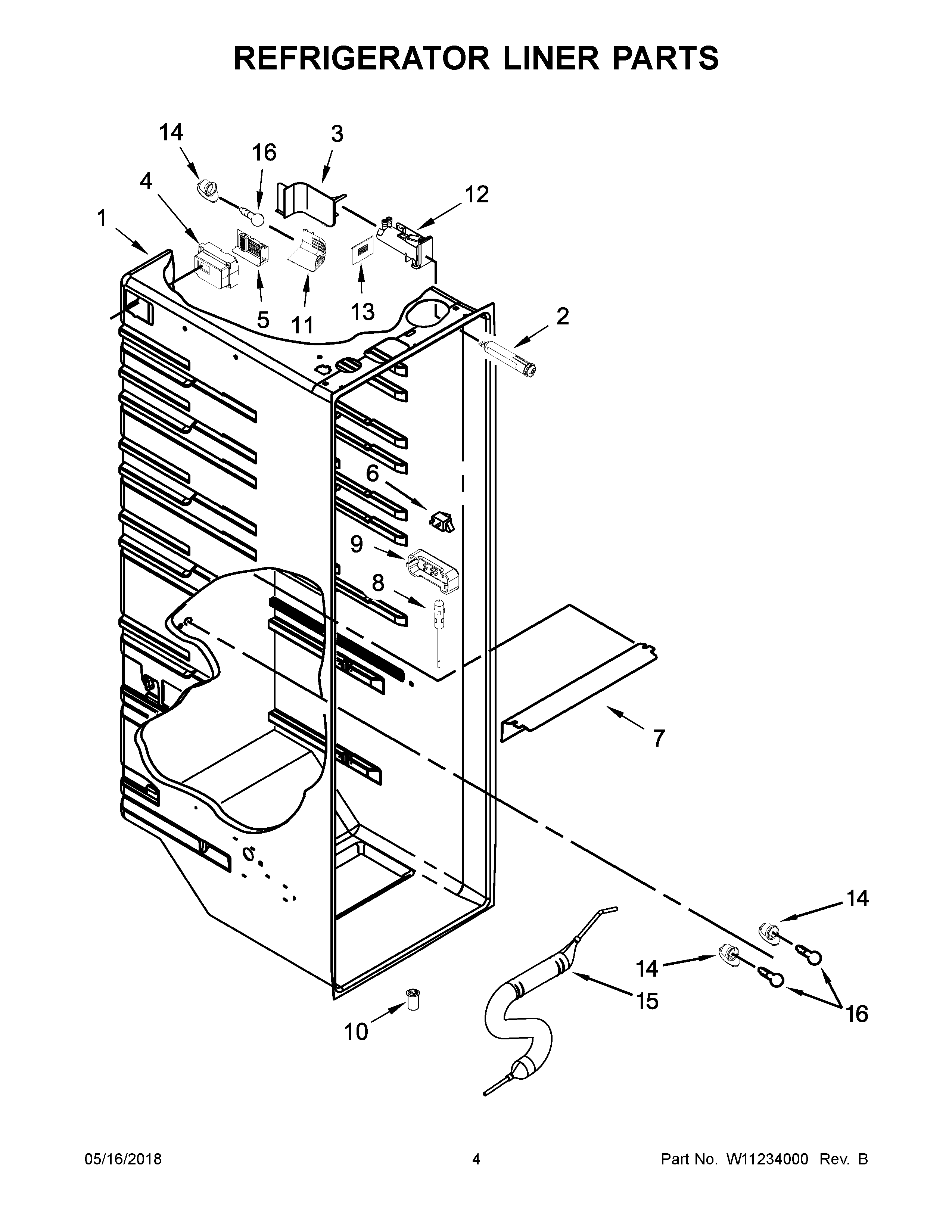

WRS586FIEH04 03 – REFRIGERATOR LINER PARTS

WRS586FIEH04 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS586FIEH04 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
3W11501035 Whirlpool Refrigerator Filter Cover
4DIFFUSER
5WPW10457601 Whirlpool Refrigerator Support
6W11396033 Whirlpool Refrigerator Rocker Switch
7WPW10269099 Whirlpool Refrigerator Light Lens
8THERMISTOR
9WPW10425252 Whirlpool Refrigerator Cover
10WP2210509 Whirlpool Refrigerator Tub Valve
11W10893232 Whirlpool Refrigerator Cover
12WPW10394053 Whirlpool Refrigerator Housing
13WPW10457603 Whirlpool Refrigerator Cover
144387478 Whirlpool Refrigerator Light Socket
15W11613294 Whirlpool Refrigerator Reservoir
16W11338583 Whirlpool Light Bulb
