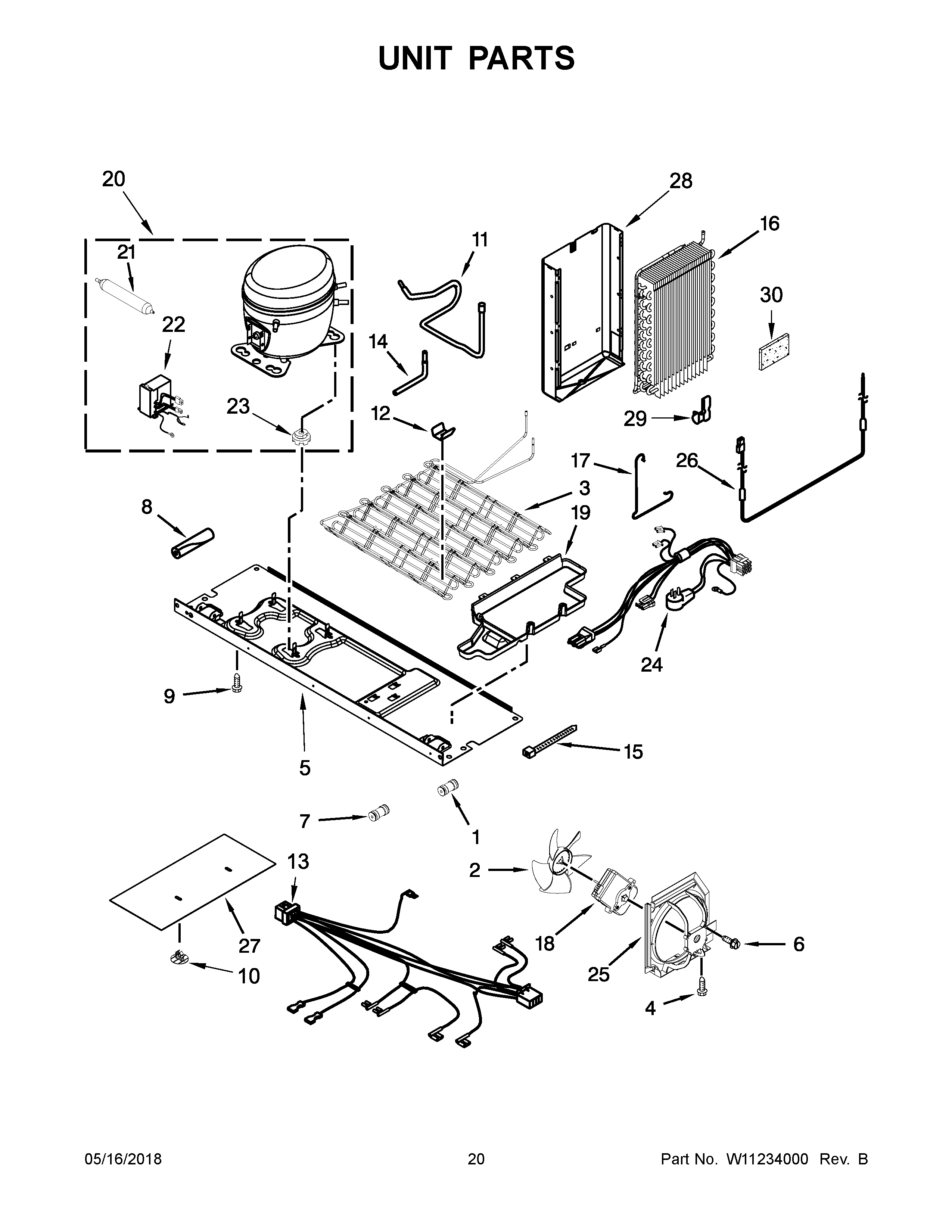

WRS586FIEH04 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	WP2300868 Whirlpool Refrigerator Fitting
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11673437 Whirlpool Condenser Assembly
4	W10142255 Whirlpool Screw
5	W10680691 Whirlpool Refrigerator Support Assembly
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
10	W10815861 Whirlpool Refrigerator Clip
11	W11311688 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	W11700341 Whirlpool Wire Harness
14	W10858105 Whirlpool Refrigerator Tube
15	WPW10339879 Whirlpool Wire Tie
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	W10703218 Whirlpool Refrigerator Evaporator Tray
20	W10779331 Whirlpool Refrigerator Compressor
21	WPW10143759 Whirlpool Dryer Filter
22	W11087200 Whirlpool Refrigerator Inverter Box
23	W11661108 Whirlpool Grommet
24	WPW10242407 Whirlpool Refrigerator Power Cord
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	WPW10495967 Whirlpool Refrigerator Heater
27	W10278140 Whirlpool Refrigerator Unit Cover
28	W10274575 Whirlpool Refrigerator Shield
29	W11623163 Whirlpool Refrigerator Clip
30	W11553819 Whirlpool Refrigerator Insulation
