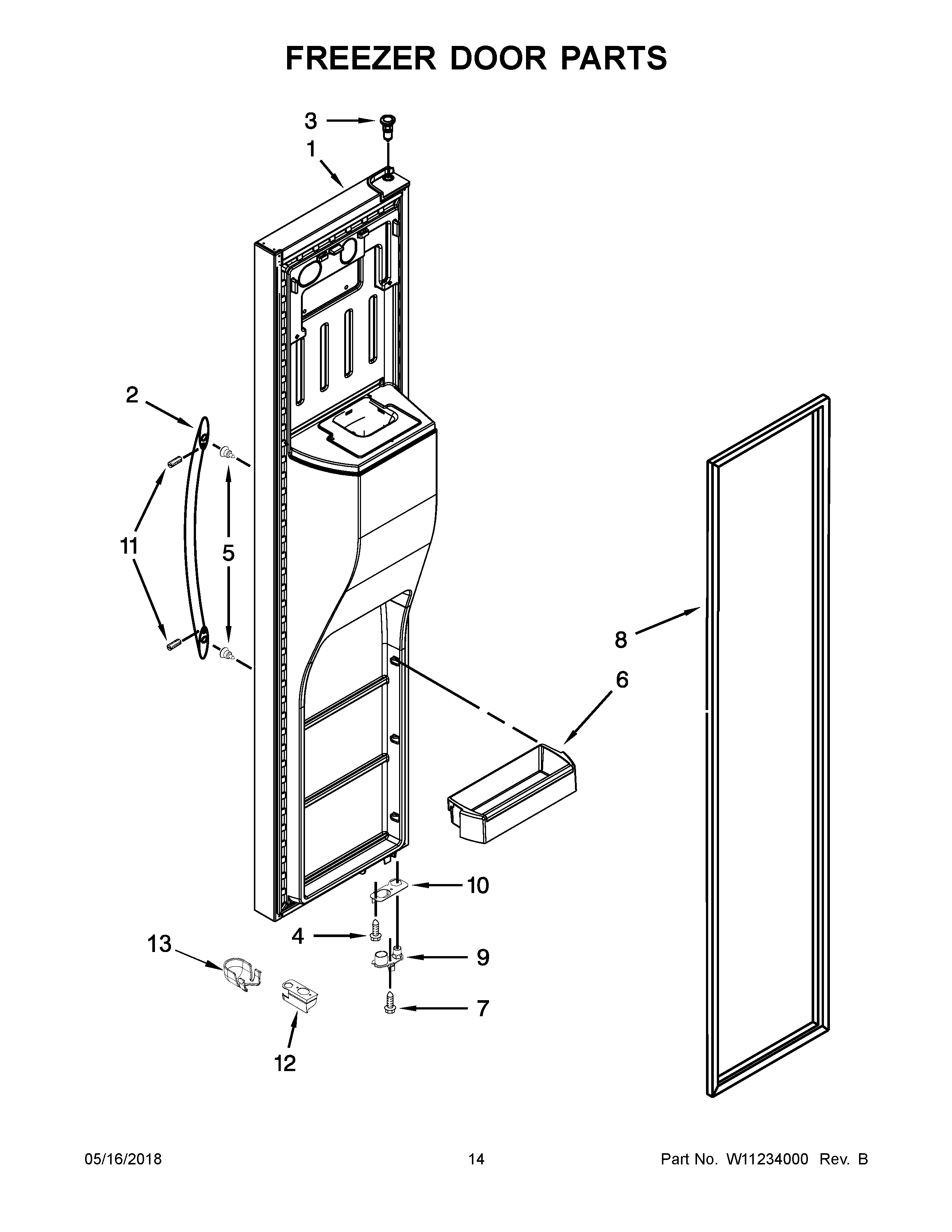

WRS586FIEM04 08 – FREEZER DOOR PARTS

WRS586FIEM04 08 – FREEZER DOOR PARTS

Written by

in

WRS586FIEM04 08 – FREEZER DOOR PARTS

Products

PositionProduct
1ALW10795740 Whirlpool Refrigerator Door
1LW10795741 Whirlpool Refrigerator DOR-FIP Assembly
2W10848410 Whirlpool Refrigerator Handle
2AW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WPW10296857 Whirlpool Refrigerator Cantilever Bin
7SCREW
8AWPW10355585 Whirlpool Refrigerator Door Gasket + AH
8WPW10247885 Whirlpool Door Gasket
9WPW10248015 Whirlpool Refrigerator Door Cam
9AWPW10257206 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12AWPW10632062 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
13W10323148 Whirlpool Refrigerator Wire Cover
