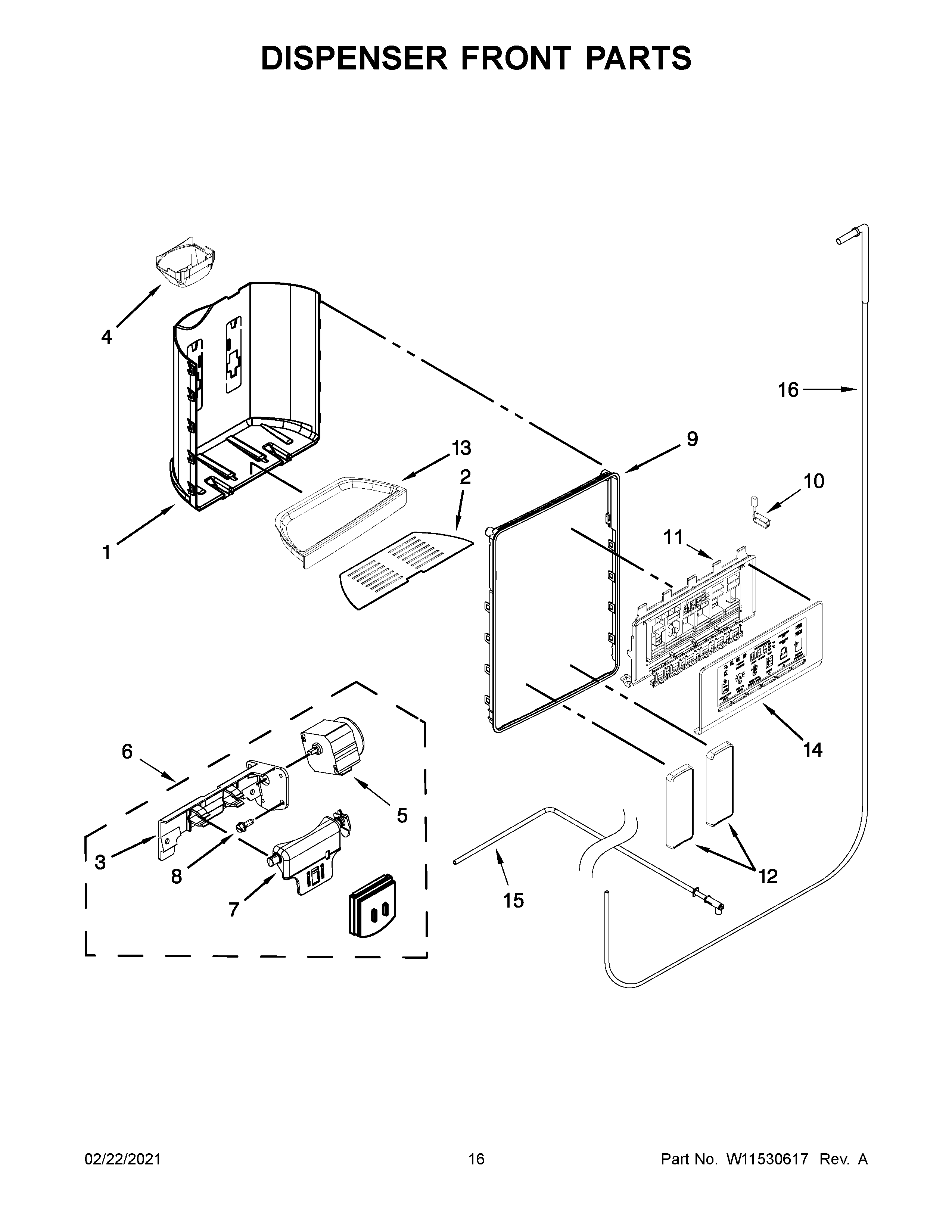

WRS586FIEM05 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	W10276228 Whirlpool Refrigerator Separator
2	WPW10276223 Whirlpool Refrigerator Grille
3	W10174827 Whirlpool Refrigerator Bracket
4	WPW10435760 Whirlpool Refrigerator Ice Guide
5	WPW10205978 Whirlpool Motor
6	W11096215 Whirlpool Refrigerator Ice Door
7	WPW10346124 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	W10276227 Whirlpool Refrigerator Dispense Trim
10	W11290115 Whirlpool Refrigerator Light
11	W11236853 Whirlpool Refrigerator Electronic Control Board + Core
12	WPW10370594 Whirlpool Refrigerator Pad
13	W11246841 Whirlpool Refrigerator Drip Tray
14	W10276229 Whirlpool Refrigerator Escutcheon
15	W11669937 Whirlpool Water Tube
16	W11619800 Whirlpool Refrigerator Water Tube
