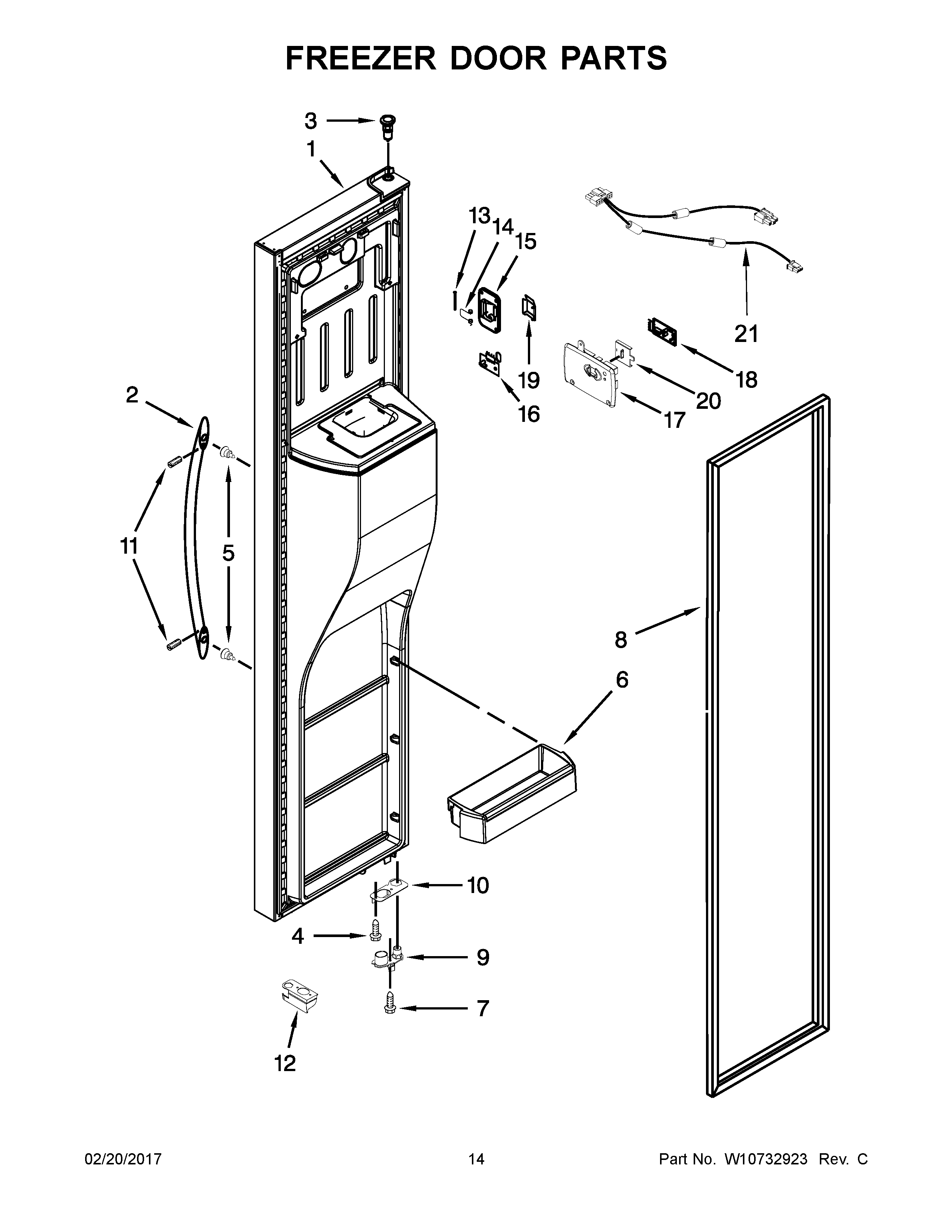

WRS586FLDB00 08 – FREEZER DOOR PARTS

Products

Position	Product
1B	DOOR, FREEZER (INCLUDES ITEM 8 & DISPENSER FRONT PARTS) (STAINLESS)
1A	DOOR, FREEZER (INCLUDES ITEM 8 & DISPENSER FRONT PARTS) (BLACK)
1	DOOR, FREEZER (INCLUDES ITEM 8 & DISPENSER FRONT PARTS) (WHITE)
2A	W10805245 Whirlpool Door Handle
2	W10848410 Whirlpool Refrigerator Handle
2B	W10899551 Whirlpool Door Handle
3	WP2182181 Whirlpool Refrigerator Thimble
4	WPW10296804 Whirlpool Refrigerator Screw
5	WPW10661886 Whirlpool Refrigerator Door Handle Screw
6	BIN-CNTLVR
7	SCREW
8B	WPW10355585 Whirlpool Refrigerator Door Gasket + AH
8A	WPW10249913 Whirlpool Refrigerator FIP Gasket
8	WPW10247885 Whirlpool Door Gasket
9	WPW10248015 Whirlpool Refrigerator Door Cam
9B	WPW10257206 Whirlpool Refrigerator Door Cam
9A	W11607100 Whirlpool Refrigerator Thimble Cam
10	W11293380 Whirlpool Refrigerator Bracket
11	SCREW
12B	WPW10632062 Whirlpool Refrigerator Wire Cover
12A	W10632060 Whirlpool Refrigerator Wire Cover
12	W10632059 Whirlpool Refrigerator Wire Cover
13	W10331749 Whirlpool Refrigerator Door PIN
14	WP2198635 Whirlpool Refrigerator Spring
15	W10258502 Whirlpool Refrigerator Cover
16	W10870822 Whirlpool Refrigerator Electronic Control Board
17	W10363396 Whirlpool Refrigerator Cover
18	W10898445 Whirlpool Refrigerator Electronic Control Board + Core
19	FLIPPER
20	W10258540 Whirlpool Refrigerator Slide
21	W10411699 Whirlpool Refrigerator Wire Harness
