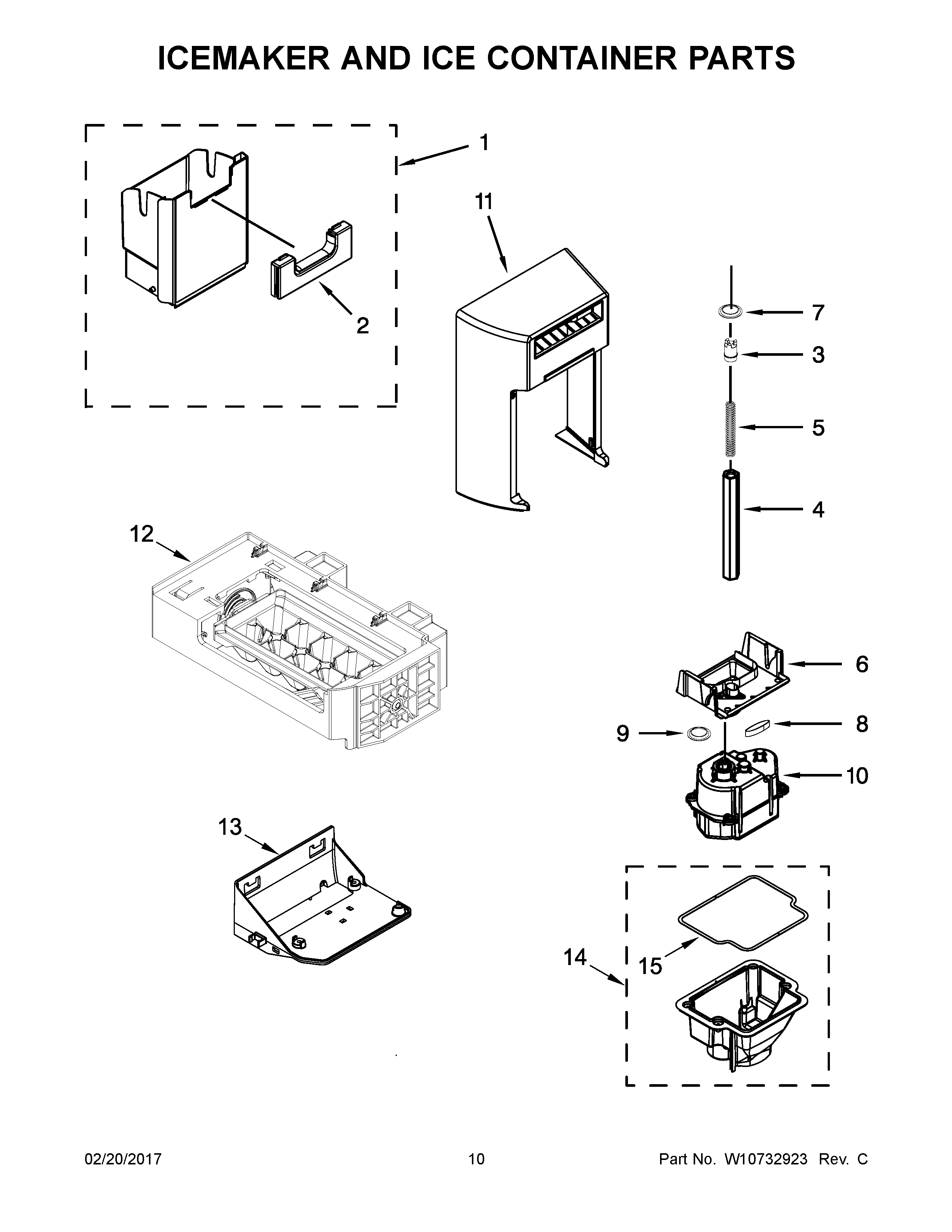

WRS586FLDM00 06 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	W11109888 Whirlpool Refrigerator Ice Container
2	W11652042 Whirlpool Bin Latch
3	WP2220458 Whirlpool Drive Cam
4	WPW10258544 Whirlpool Refrigerator Shaft
5	W10852956 Whirlpool Refrigerator Spring
6	CHUTE
7	WP2198628 Whirlpool Door Seal
8	WPW10291905 Whirlpool Seal
9	WP2212370 Whirlpool Washer
10	W11202789 Whirlpool Auger Motor
11	WPW10287594 Whirlpool Refrigerator Front Cover
12	WPW10251076 Whirlpool Icemaker Assembly
13	W10747726 Whirlpool Refrigerator Bracket
14	W11678273 Whirlpool Bracket
15	W10166854 Whirlpool Refrigerator Gasket
