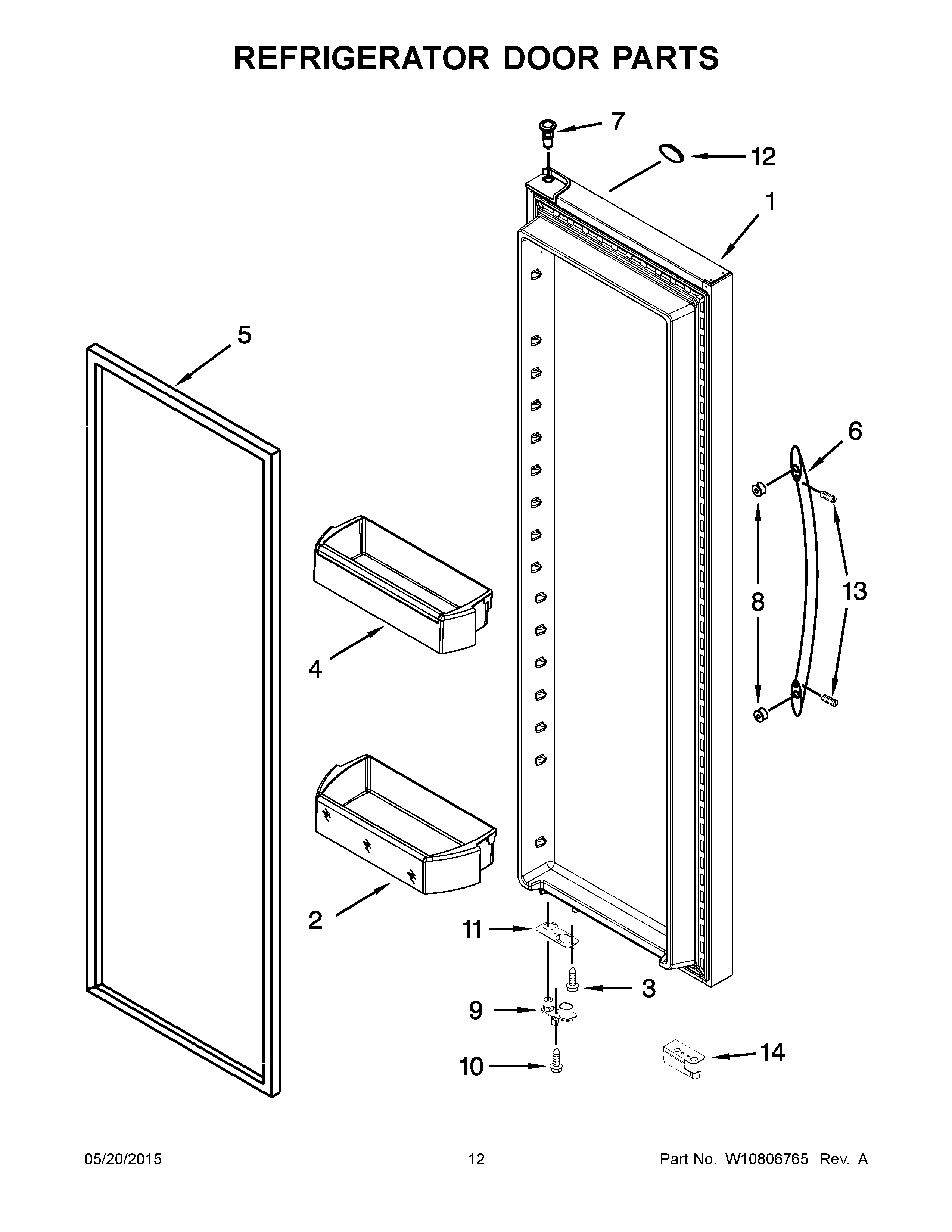

WRS586FLDM01 07 – REFRIGERATOR DOOR PARTS

WRS586FLDM01 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS586FLDM01 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10261114 Whirlpool Refrigerator Door FIP White
1BLW10637748 Whirlpool Refrigerator Door FIP
1AREFRIGERATOR DOOR (INCLUDES ITEM 5) (BLACK)
2WPW10710203 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10451873 Whirlpool Door Shelf Bin
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5AWPW10249912 Whirlpool Refrigerator FIP Gasket
5BW10355582 Whirlpool Refrigerator Door Gasket
6BW10899551 Whirlpool Door Handle
6AW10805245 Whirlpool Door Handle
6W10848410 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10661886 Whirlpool Refrigerator Door Handle Screw
9WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9AWPW10257201 Whirlpool Door Closing Cam
9BWPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12WPW10511975 Whirlpool Refrigerator Nameplate
12AWPW10511972 Whirlpool Refrigerator Nameplate
13SCREW
14BW11661847 Whirlpool Wire Cover
14W10789144 Whirlpool Refrigerator Wire Cover
14AW10257216 Whirlpool Refrigerator Wire Cover
