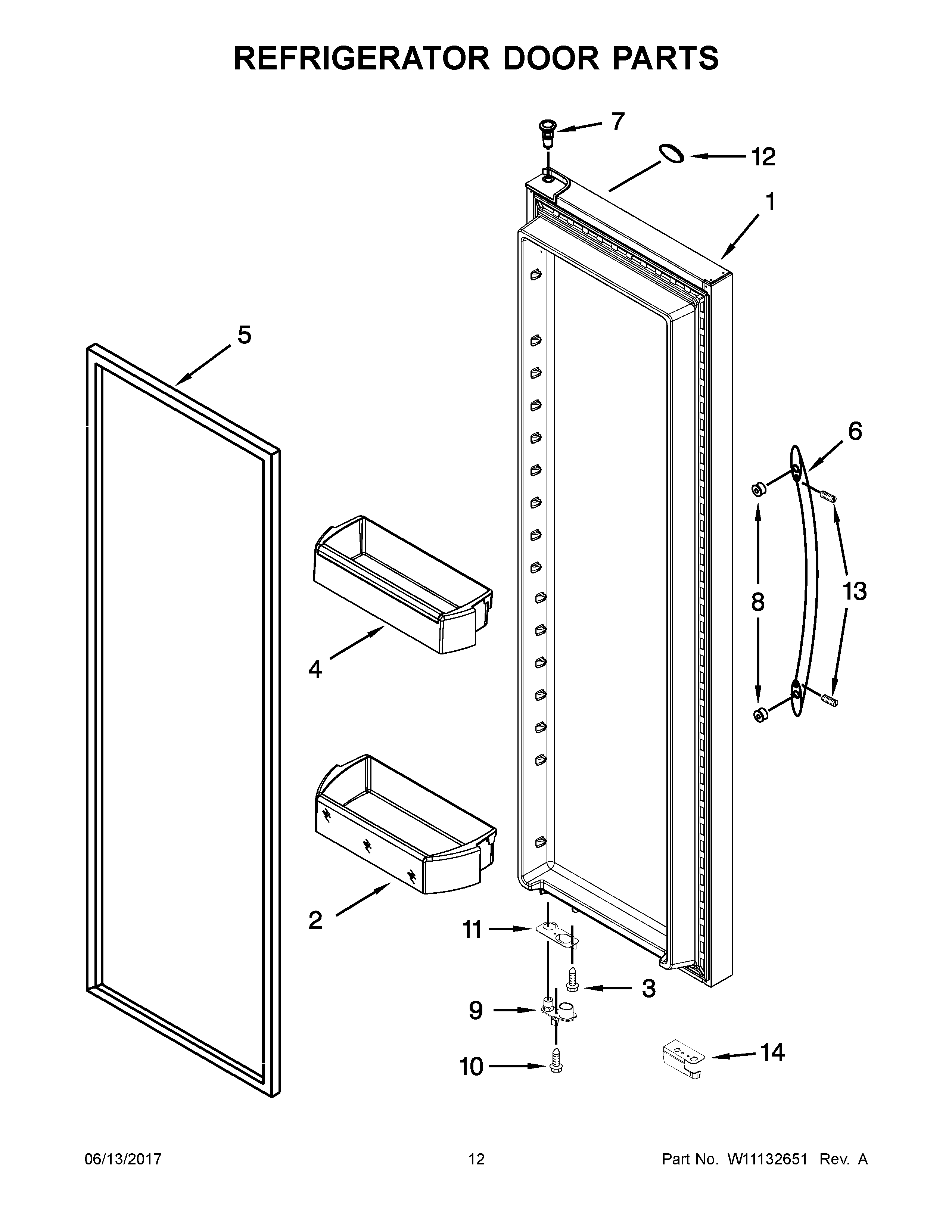

WRS586FLDM03 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW11045217 Whirlpool Refrigerator DOR-FIP
1A	LW10637748 Whirlpool Refrigerator Door FIP
2	WPW10710203 Whirlpool Refrigerator Door Shelf Bin
3	SCREW
4	WPW10451873 Whirlpool Door Shelf Bin
5A	W10355582 Whirlpool Refrigerator Door Gasket
5	WPW10247884 Whirlpool Refrigerator FIP Gasket
6	W10848410 Whirlpool Refrigerator Handle
6A	W10899551 Whirlpool Door Handle
7	WP2182181 Whirlpool Refrigerator Thimble
8	WPW10661886 Whirlpool Refrigerator Door Handle Screw
9	WPW10248011 Whirlpool Refrigerator Door Closing Cam White
9A	WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10	WPW10296804 Whirlpool Refrigerator Screw
11	W11037957 Whirlpool Refrigerator Bracket
12A	WPW10511972 Whirlpool Refrigerator Nameplate
12	WPW10511975 Whirlpool Refrigerator Nameplate
13	SCREW
14A	W11661847 Whirlpool Wire Cover
14	W10789144 Whirlpool Refrigerator Wire Cover
