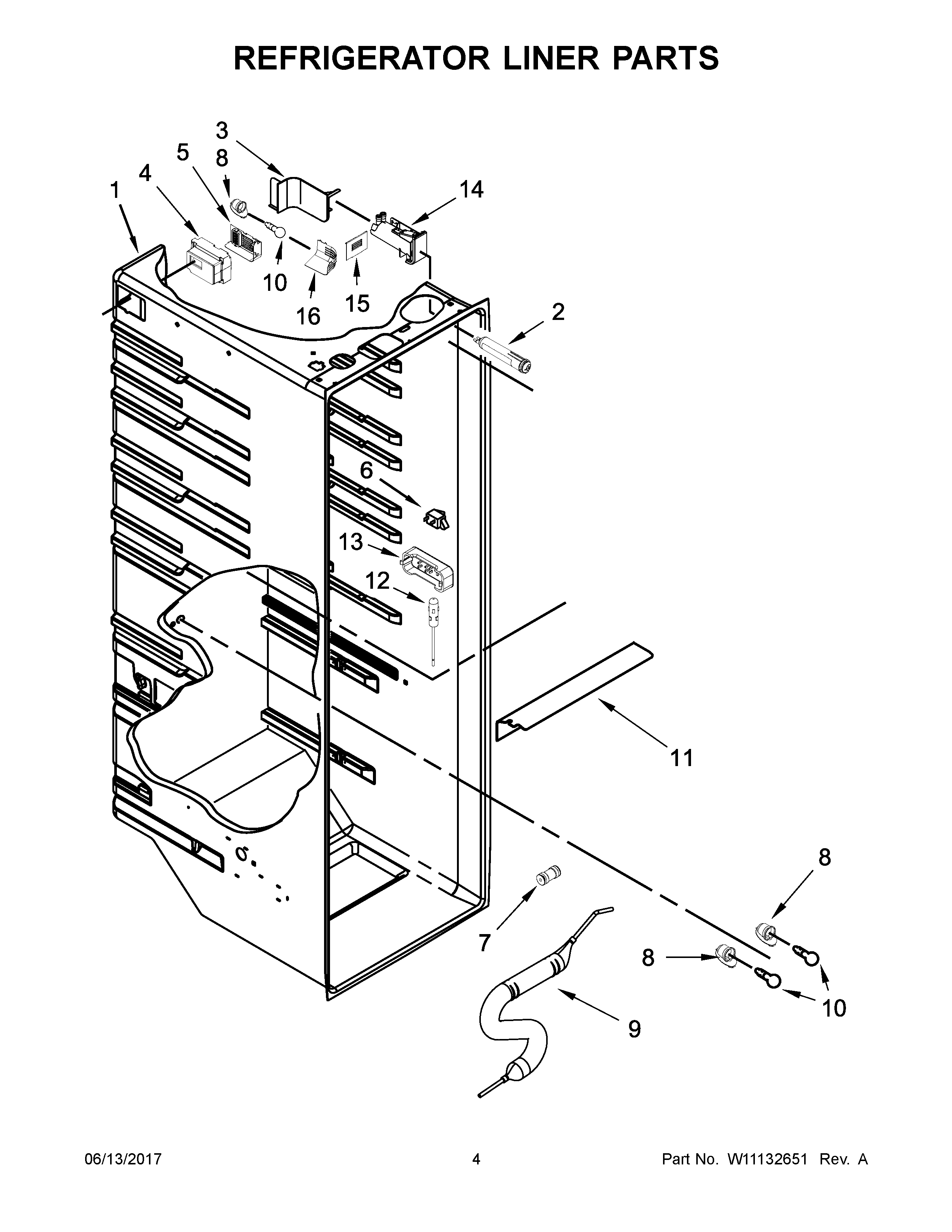

WRS586FLDW03 03 – REFRIGERATOR LINER PARTS

WRS586FLDW03 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS586FLDW03 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
3W11501035 Whirlpool Refrigerator Filter Cover
4W11164593 Whirlpool Damper Control Assembly
5WPW10457601 Whirlpool Refrigerator Support
6W11384469 Whirlpool Door Switch
7WPW10271543 Whirlpool Refrigerator Connector
84387478 Whirlpool Refrigerator Light Socket
9W11613294 Whirlpool Refrigerator Reservoir
10W11216993 Whirlpool Refrigerator Light Bulb
11WPW10269099 Whirlpool Refrigerator Light Lens
12THERMISTOR
13WPW10425252 Whirlpool Refrigerator Cover
14WPW10394053 Whirlpool Refrigerator Housing
15WPW10457603 Whirlpool Refrigerator Cover
16W10893232 Whirlpool Refrigerator Cover
