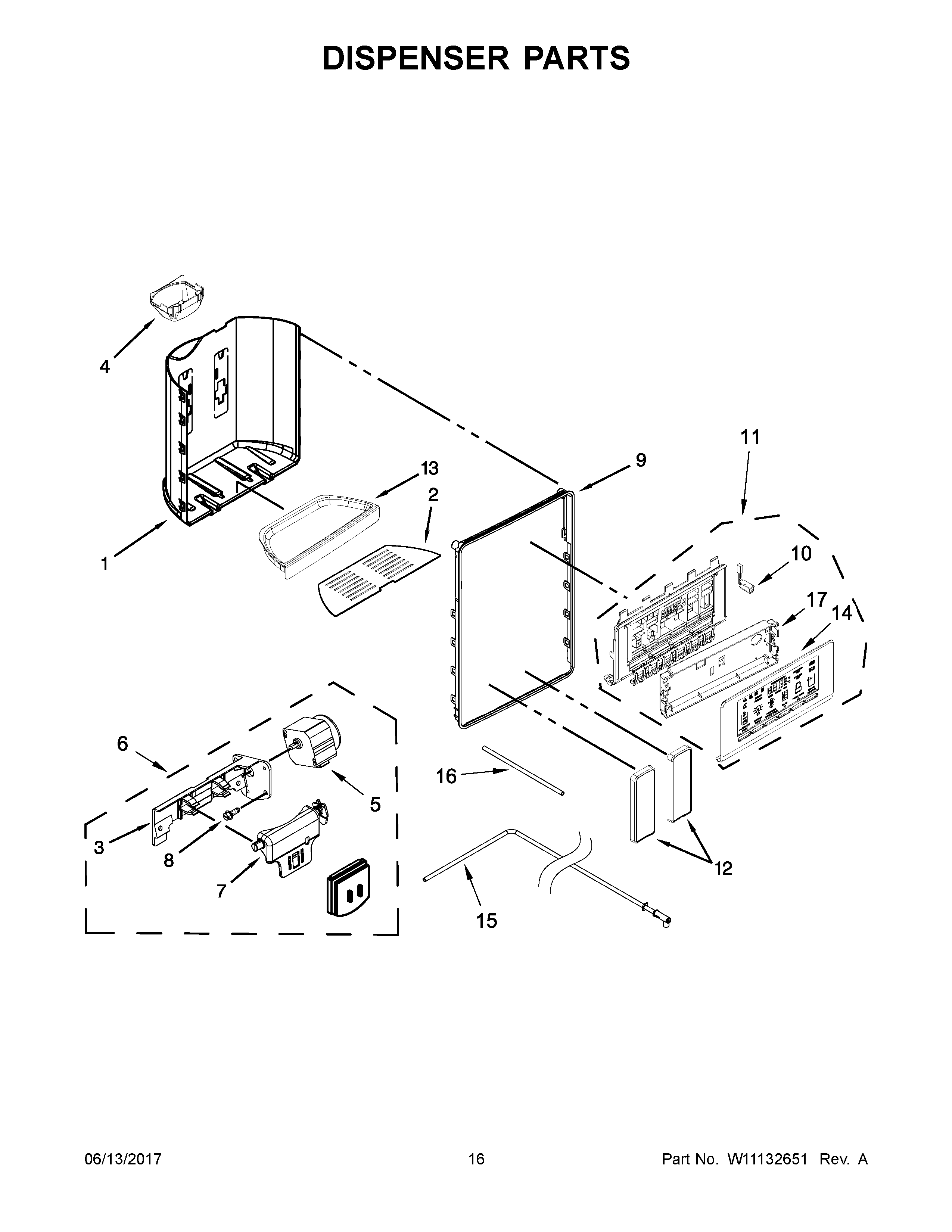

WRS586FLDW03 09 – DISPENSER PARTS

WRS586FLDW03 09 – DISPENSER PARTS

Written by

in

WRS586FLDW03 09 – DISPENSER PARTS

Products

PositionProduct
1W10276226 Whirlpool Refrigerator Separator
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11098702 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10276265 Whirlpool Refrigerator Dispense Trim
9AW10448931 Whirlpool Refrigerator Dispenser Trim
10W11290115 Whirlpool Refrigerator Light
11W10811881 Whirlpool Refrigerator Electronic Control Board + Core
12PAD, ICE AND WATER (WHITE)
12AW11624941 Whirlpool Refrigerator Pad
13AW10276225 Whirlpool Refrigerator Drip Tray
13W10254258 Whirlpool Refrigerator Drip Tray
14W10458867 Whirlpool Refrigerator Escutcheon
15WPW10386778 Whirlpool Refrigerator Water Tube
16W11619800 Whirlpool Refrigerator Water Tube
17W10254277 Whirlpool Cover Assembly
