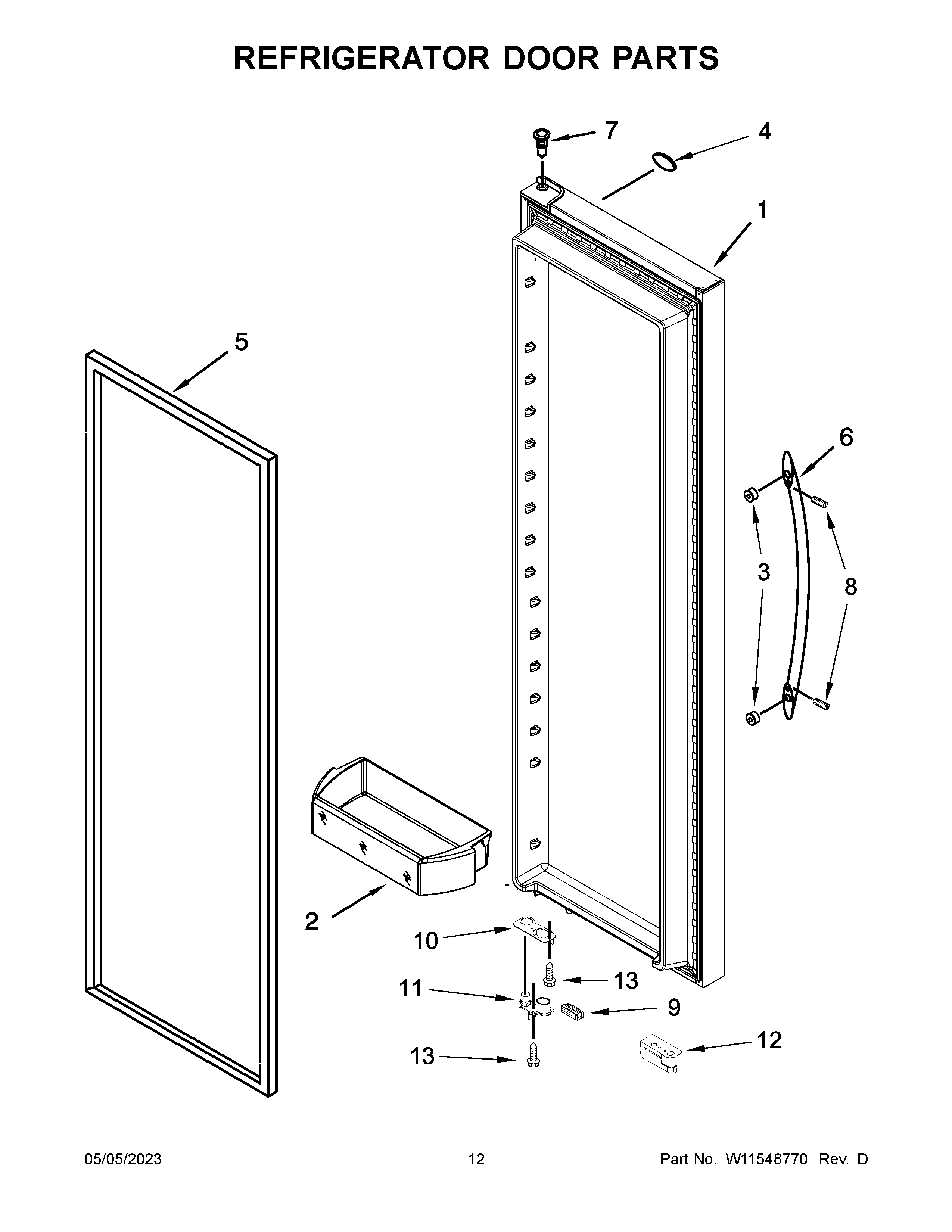

WRS588FIHB04 07 – REFRIGERATOR DOOR PARTS

WRS588FIHB04 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS588FIHB04 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CLW11037738 Whirlpool Refrigerator Door Assembly
1BLW11038910 Whirlpool Refrigerator FIP Door
1ALW11038911 Whirlpool Refrigerator DOR-FIP
1LW11038913 Whirlpool Refrigerator Door FIP
2WPW10710203 Whirlpool Refrigerator Door Shelf Bin
3WPW10661886 Whirlpool Refrigerator Door Handle Screw
4W11223753 Whirlpool Refrigerator Nameplate
5AWPW10249912 Whirlpool Refrigerator FIP Gasket
5WPW10247884 Whirlpool Refrigerator FIP Gasket
5BW10355582 Whirlpool Refrigerator Door Gasket
6BW11450223 Whirlpool Handle
6AW11450221 Whirlpool Handle
6W11432251 Whirlpool Refrigerator Handle
6CW11542651 Whirlpool Door Handle
7WP2182181 Whirlpool Refrigerator Thimble
8SCREW
9AW10407187 Whirlpool Refrigerator Door Bumper
9BUMPER, DOOR (WHITE)
9BW11573367 Whirlpool Refrigerator Door Bumper
10W11037957 Whirlpool Refrigerator Bracket
11BWPW10257206 Whirlpool Refrigerator Door Cam
11AW11607100 Whirlpool Refrigerator Thimble Cam
11WPW10248015 Whirlpool Refrigerator Door Cam
12W10632059 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12BWPW10632062 Whirlpool Refrigerator Wire Cover
13SCREW
