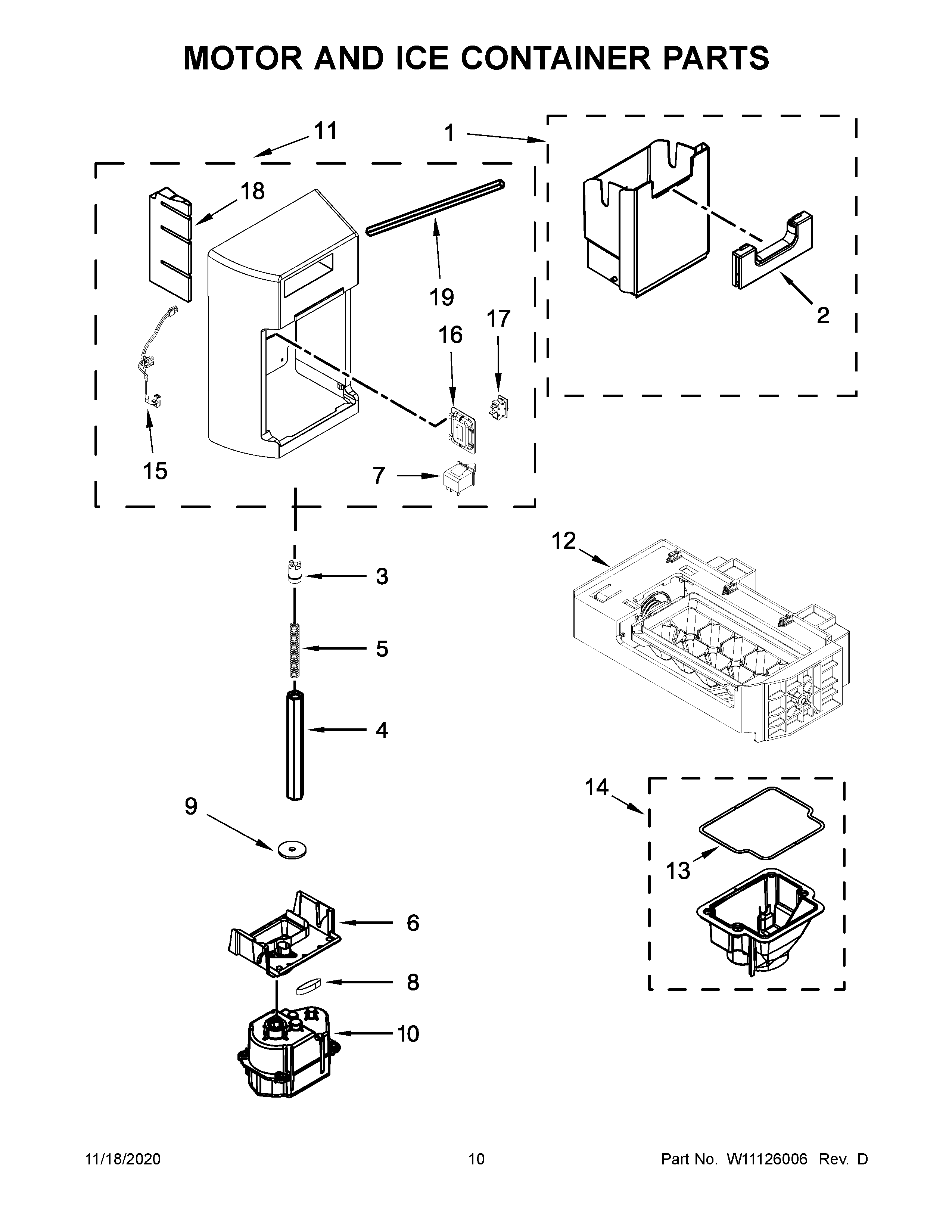

WRS588FIHV00 06 – MOTOR AND ICE CONTAINER PARTS

WRS588FIHV00 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

WRS588FIHV00 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1W11347840 Whirlpool Refrigerator Ice Container
2W11652042 Whirlpool Bin Latch
3WP2220458 Whirlpool Drive Cam
4WPW10258544 Whirlpool Refrigerator Shaft
5W10852956 Whirlpool Refrigerator Spring
6CHUTE
7W11123943 Whirlpool Refrigerator Switch
8WPW10291905 Whirlpool Seal
9WP2305382 Whirlpool Refrigerator Washer
10W11202789 Whirlpool Auger Motor
11W11126296 Whirlpool Refrigerator Front Cover
12W10873791 Whirlpool Refrigerator Ice Maker Assembly
13W10166854 Whirlpool Refrigerator Gasket
14W11678273 Whirlpool Bracket
15W11684619 Whirlpool Refrigerator Jumper Wire
16W10691248 Whirlpool Refrigerator Plate
17W10918003 Whirlpool Refrigerator RKR Switch
18W10749467 Whirlpool Refrigerator Insulation
19WPW10400435 Whirlpool Refrigerator Gasket
