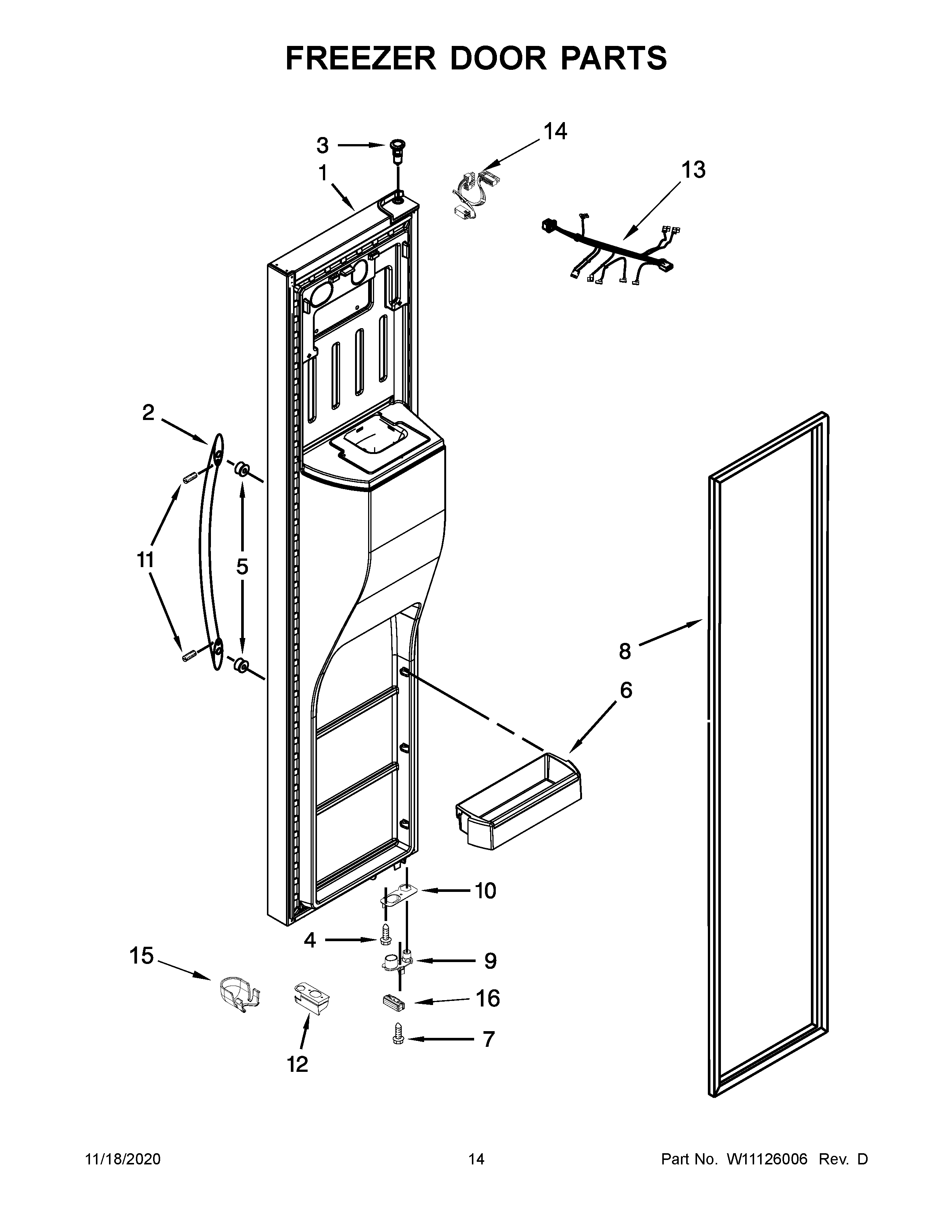

WRS588FIHV00 08 – FREEZER DOOR PARTS

WRS588FIHV00 08 – FREEZER DOOR PARTS

Written by

in

WRS588FIHV00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1CLW11037733 Whirlpool Refrigerator FIP Door
1BLW11038917 Whirlpool Refrigerator DOR FIP
1ALW11038915 Whirlpool Refrigerator DOR FIP
1LW11038922 Whirlpool Refrigerator Door FIP
2BHANDLE-REFRIGERATOR SS
2AW11450223 Whirlpool Handle
2W11450221 Whirlpool Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN-CNTLVR
7SCREW
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
8WPW10247885 Whirlpool Door Gasket
9AW11607100 Whirlpool Refrigerator Thimble Cam
9BWPW10257206 Whirlpool Refrigerator Door Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10W11293380 Whirlpool Refrigerator Bracket
11SCREW
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
13W11678253 Whirlpool Wire Harness
14W10323148 Whirlpool Refrigerator Wire Cover
15W11293361 Whirlpool Refrigerator Wire Jumper
16AW11573367 Whirlpool Refrigerator Door Bumper
16BUMPER, DOOR (WHITE)
