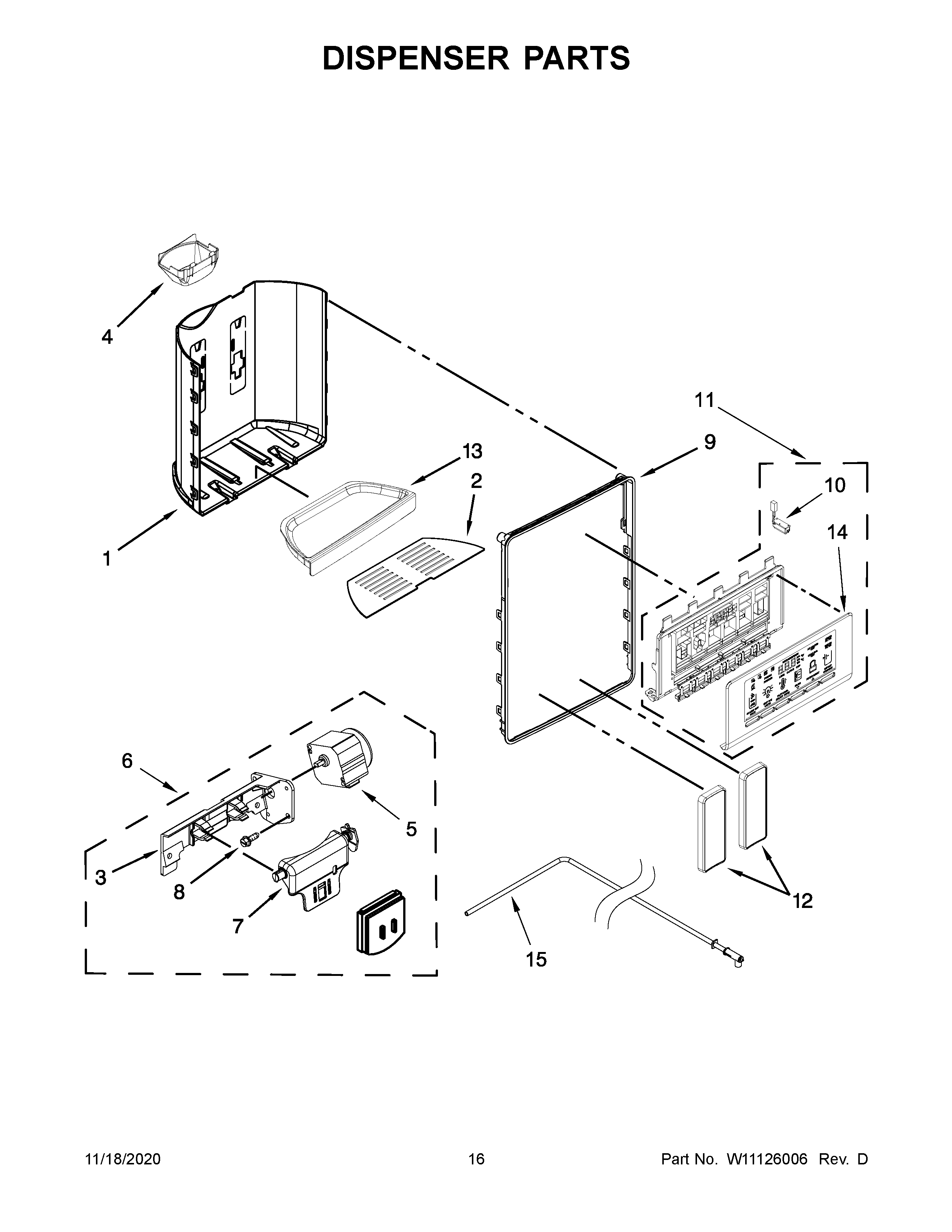

WRS588FIHV00 09 – DISPENSER PARTS

Products

PositionProduct
1BW10276226 Whirlpool Refrigerator Separator
1AW10254255 Whirlpool Refrigerator Separator
1W10254254 Whirlpool Refrigerator Separator
2WPW10276209 Whirlpool Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6W11098702 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9W10276265 Whirlpool Refrigerator Dispense Trim
9AW10335549 Whirlpool Refrigerator Dispenser Trim
9BRING, TRIM (CHROMIUM FROST)
10W11290115 Whirlpool Refrigerator Light
11W11130216-includeCORE Whirlpool W11130216 Refrigerator Electronic Control Board + Core
12BW11624941 Whirlpool Refrigerator Pad
12AW10370577 Whirlpool Refrigerator Pad
12PAD, ICE AND WATER (WHITE)
13BW10276225 Whirlpool Refrigerator Drip Tray
13AW10254259 Whirlpool Refrigerator Drip Tray
13W10254258 Whirlpool Refrigerator Drip Tray
14W10458867 Whirlpool Refrigerator Escutcheon
15WPW10386778 Whirlpool Refrigerator Water Tube
