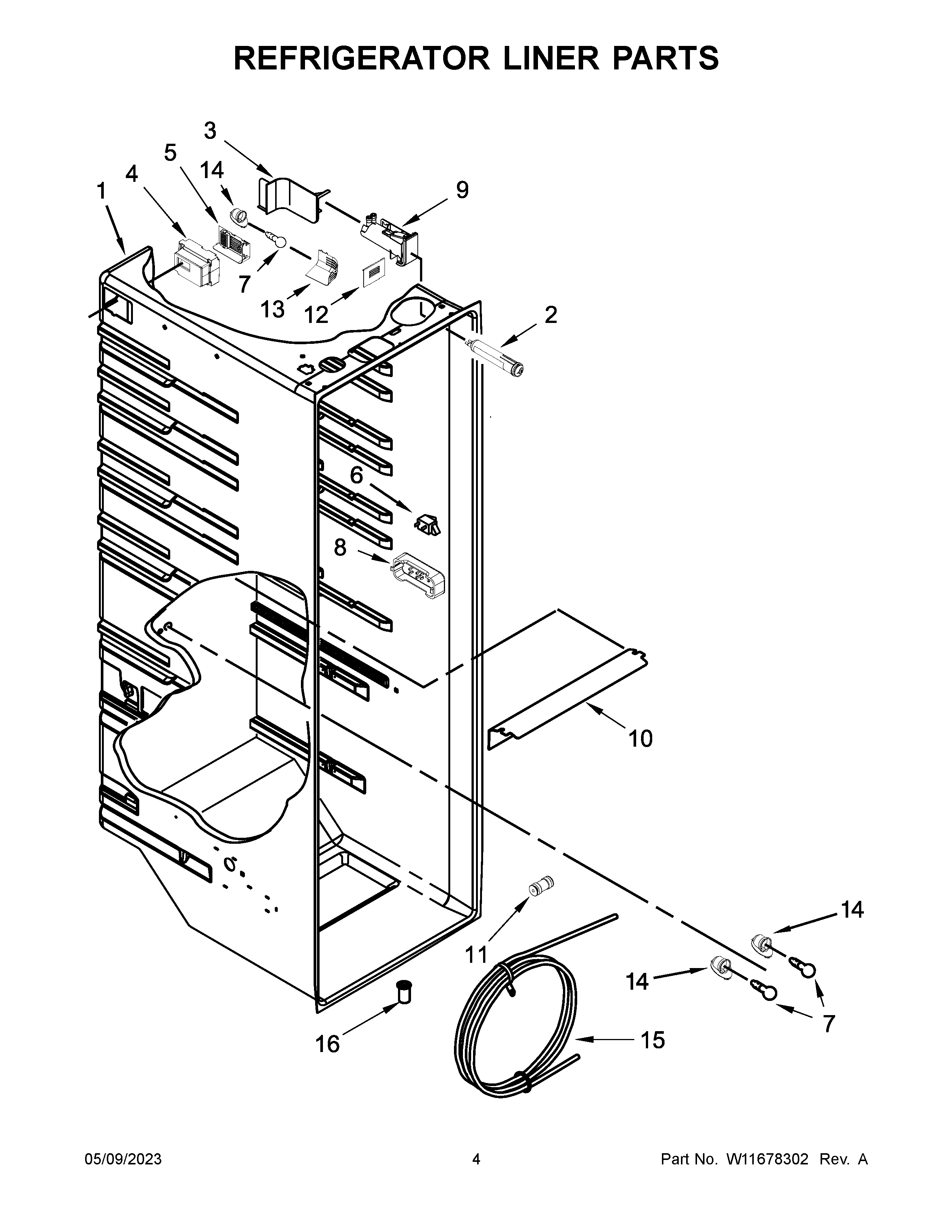

WRS588FIHV06 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
3	W11501035 Whirlpool Refrigerator Filter Cover
4	DIFFUSER
5	WPW10457601 Whirlpool Refrigerator Support
6	W11123941 Whirlpool Refrigerator Switch
7	W11216993 Whirlpool Refrigerator Light Bulb
8	WPW10425252 Whirlpool Refrigerator Cover
9	WPW10394053 Whirlpool Refrigerator Housing
10	WPW10269099 Whirlpool Refrigerator Light Lens
11	WPW10271543 Whirlpool Refrigerator Connector
12	WPW10457603 Whirlpool Refrigerator Cover
13	W10893232 Whirlpool Refrigerator Cover
14	4387478 Whirlpool Refrigerator Light Socket
15	W11613294 Whirlpool Refrigerator Reservoir
16	WP2210509 Whirlpool Refrigerator Tub Valve
