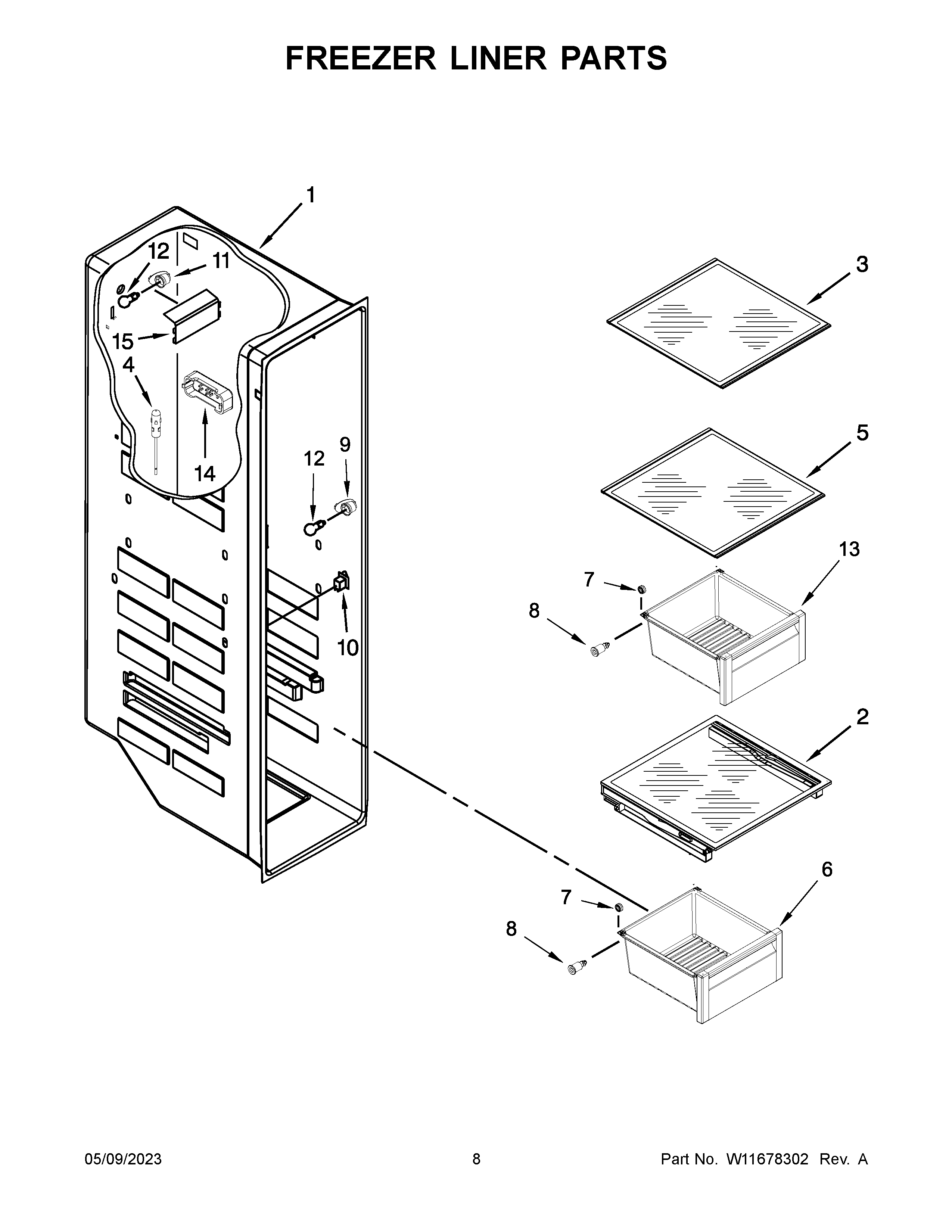

WRS588FIHW06 05 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SEVICEABLE PART)
2	W11130204 Whirlpool Refrigerator Cover
3	W11130205 Whirlpool Refrigerator Glass Shelf
4	THERMISTOR
5	W11130212 Whirlpool Refrigerator Glass Shelf
6	WPW10322649 Whirlpool Refrigerator Freezer Bin
7	W11164152 Whirlpool Drawer Roller
8	W11175807 Whirlpool Axle Assembly
9	SOCKET
10	W11396033 Whirlpool Refrigerator Rocker Switch
11	4387478 Whirlpool Refrigerator Light Socket
12	W11216993 Whirlpool Refrigerator Light Bulb
13	WPW10322653 Whirlpool Refrigerator Freezer Bin
14	WPW10425252 Whirlpool Refrigerator Cover
15	W11130215 Whirlpool Refrigerator Light Lens
