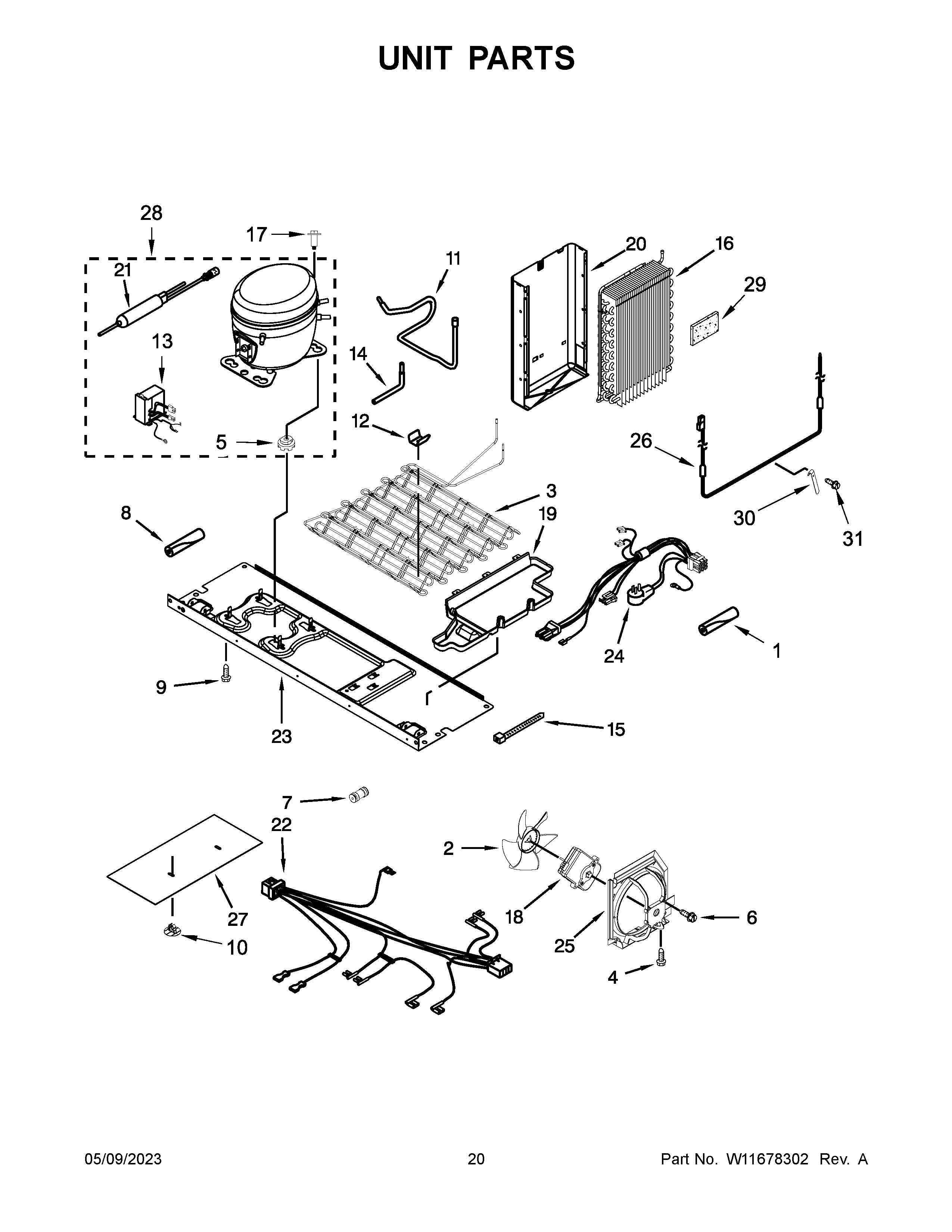

WRS588FIHW06 11 – UNIT PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 55 GRAMS (R600A)
1	SLEEVE
2	W11458267 Whirlpool Refrigerator Fan Blade
3B	W11504445 Whirlpool Refrigerator Coupler
3	W11673437 Whirlpool Condenser Assembly
3A	W11506623 Whirlpool Refrigerator Coupler
4	W10142255 Whirlpool Screw
5	WPW10169124 Whirlpool Refrigerator Grommet
6	WPW10171469 Whirlpool Refrigerator Screw
7	WPW10277958 Whirlpool Refrigerator Fitting
8	SLEEVE
9	BOLT
10	W10815861 Whirlpool Refrigerator Clip
11	SUCTION, TUBE
12	W10683556 Whirlpool Refrigerator Clip
13	INVRTR-BOX
14	TUBE
15	WPW10339879 Whirlpool Wire Tie
16A	W11504448 Whirlpool Refrigerator Coupler
16B	W11506620 Whirlpool Refrigerator Coupler
16	W11566897 Whirlpool Evaporator
17	W11417341 Whirlpool Refrigerator Screw
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	W10703218 Whirlpool Refrigerator Evaporator Tray
20	HEAT SHIELD
21	W11109499 Whirlpool Refrigerator Tube
21B	W11504447 Whirlpool Refrigerator Coupler
21A	W11504433 Whirlpool Refrigerator Coupler
22	W11700341 Whirlpool Wire Harness
23	W10680691 Whirlpool Refrigerator Support Assembly
24	WPW10242407 Whirlpool Refrigerator Power Cord
25	WPW10251467 Whirlpool Refrigerator Air Baffle
26	W11567493 Whirlpool Refrigerator Heater
27	W10278140 Whirlpool Refrigerator Unit Cover
28C	COUPLER
28A	W11504415 Whirlpool Refrigerator Coupler
28B	W11504431 Whirlpool Microwave Coupler
28	W11736670 Whirlpool Compressor
29	W11553819 Whirlpool Refrigerator Insulation
30	HEAT-PROBE
31	WP489478 Whirlpool Refrigerator Screw
