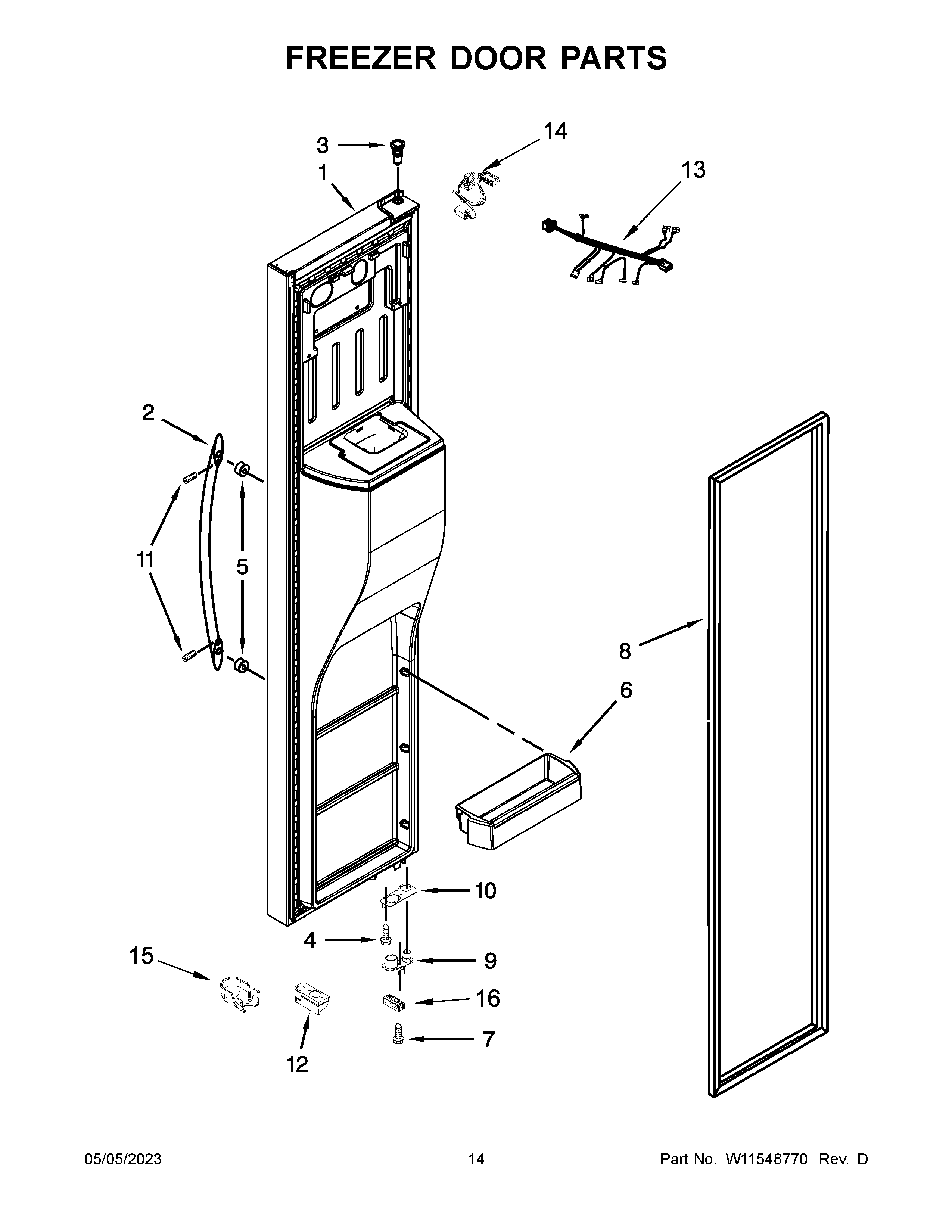

WRS588FIHZ04 08 – FREEZER DOOR PARTS

WRS588FIHZ04 08 – FREEZER DOOR PARTS

Written by

in

WRS588FIHZ04 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BW11566703 Whirlpool Door Flip
1W11566701 Whirlpool Door Assembly
1AW11566702 Whirlpool Door Flip
1CW11566705 Whirlpool Refrigerator FIP Door
2BW11450223 Whirlpool Handle
2AW11450221 Whirlpool Handle
2W11432251 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4WPW10296804 Whirlpool Refrigerator Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6BIN-CNTLVR
7SCREW
8AWPW10249913 Whirlpool Refrigerator FIP Gasket
8WPW10247885 Whirlpool Door Gasket
8BWPW10355585 Whirlpool Refrigerator Door Gasket + AH
9AW11607100 Whirlpool Refrigerator Thimble Cam
9BWPW10257206 Whirlpool Refrigerator Door Cam
9WPW10248015 Whirlpool Refrigerator Door Cam
10BUMPER, DOOR (WHITE)
10BW11573367 Whirlpool Refrigerator Door Bumper
10AW10407187 Whirlpool Refrigerator Door Bumper
11SCREW
12BWPW10632062 Whirlpool Refrigerator Wire Cover
12AW10632060 Whirlpool Refrigerator Wire Cover
12W10632059 Whirlpool Refrigerator Wire Cover
13W11678253 Whirlpool Wire Harness
14W10323148 Whirlpool Refrigerator Wire Cover
15W11293361 Whirlpool Refrigerator Wire Jumper
