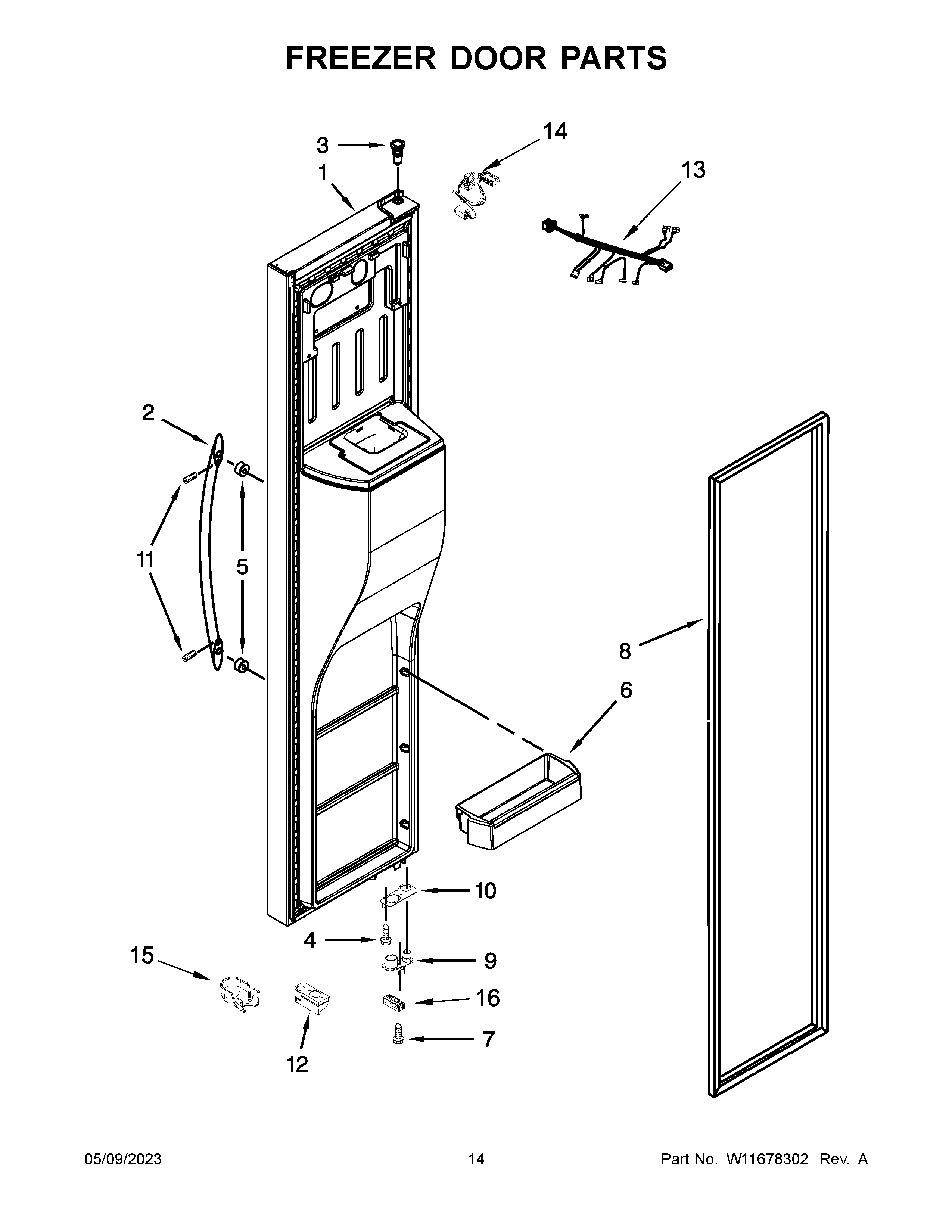

WRS588FIHZ06 08 – FREEZER DOOR PARTS

Products

Position	Product
1C	W11616484 Whirlpool Door FIP
1B	DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK STAINLESS)
1A	DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1	W11616483 Whirlpool FIP Door
2B	W11450223 Whirlpool Handle
2A	W11450221 Whirlpool Handle
2	W11432251 Whirlpool Refrigerator Handle
2C	W11542651 Whirlpool Door Handle
3	WP2182181 Whirlpool Refrigerator Thimble
4	WPW10296804 Whirlpool Refrigerator Screw
5	WPW10661886 Whirlpool Refrigerator Door Handle Screw
6	BIN-CNTLVR
7	SCREW
8	WPW10247885 Whirlpool Door Gasket
8B	WPW10355585 Whirlpool Refrigerator Door Gasket + AH
8A	WPW10249913 Whirlpool Refrigerator FIP Gasket
9	WPW10248015 Whirlpool Refrigerator Door Cam
9A	W11607100 Whirlpool Refrigerator Thimble Cam
9B	WPW10257206 Whirlpool Refrigerator Door Cam
10	W11293380 Whirlpool Refrigerator Bracket
11	SCREW
12B	WPW10632062 Whirlpool Refrigerator Wire Cover
12	W10632059 Whirlpool Refrigerator Wire Cover
12A	W10632060 Whirlpool Refrigerator Wire Cover
13	W11678253 Whirlpool Wire Harness
14	W10323148 Whirlpool Refrigerator Wire Cover
15	W11293361 Whirlpool Refrigerator Wire Jumper
16B	W11573367 Whirlpool Refrigerator Door Bumper
16A	W10407187 Whirlpool Refrigerator Door Bumper
16	BUMPER, DOOR (WHITE)
